63 10 014 Adjusting fog lamps
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
Observe test preconditions for adjusting headlights.
Saloon/sedan, touring up to 09/2001:
Adjust fog lamp (1) at adjusting screw (2).
Saloon/sedan, touring from 09/2001:
NOTE:
Tools required:

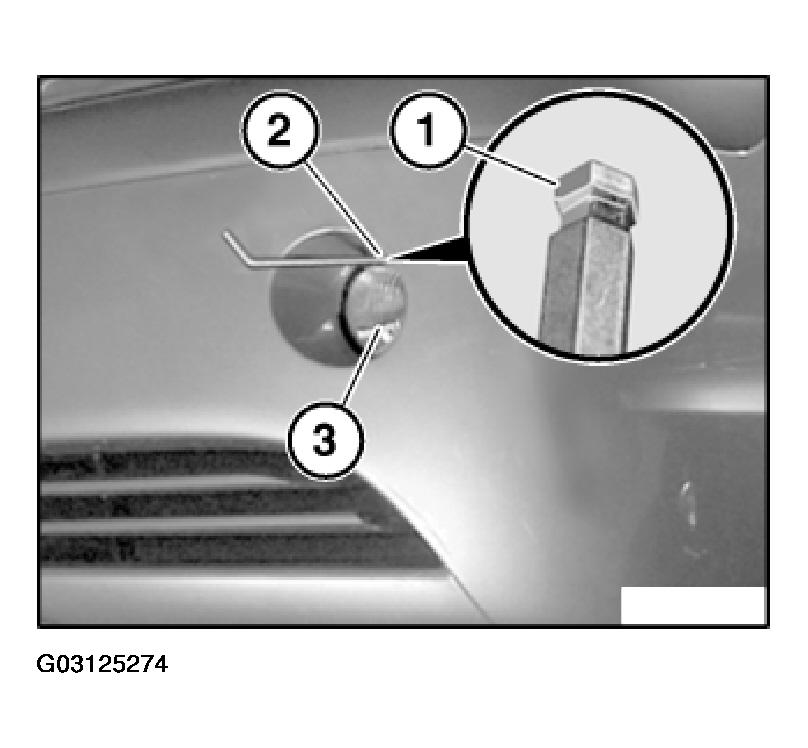

Offset hexagon head screwdriver (size 4 mm) with ball head (1). Using above-mentioned tool through opening (2), turn adjusting screw of fog lamp (3).
Offset hexagon head screwdriver (size 4 mm) with ball head (1). Using above-mentioned tool through opening (2), turn adjusting screw of fog lamp (3).
CoupeA, convertible:
Adjust fog lamp (1) at adjusting screw (2).
Saloon/Sedan, Touring, CoupeA, Convertible with M/aerodynamics package:
If necessary, unclip trim.
Adjust fog lamp (1) at adjusting screw (2).
compact:
Adjust fog lamp (2) at adjusting screw (1).
Compact with M/aerodynamics package:
Adjust fog lamp (1) at adjusting screw (2).
