63 12 870 Replacing ignition unit for left xenon headlight (saloon/sedan, touring)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Remove left headlight (xenon headlight). See 63 12 001 Removing and installing/replacing left headlight

Remove left headlight insert (xenon headlight).

Up to 09/2001:

Disconnect plug connection (1).

Loosen screws (2).

Remove ignition unit for xenon headlight (3).

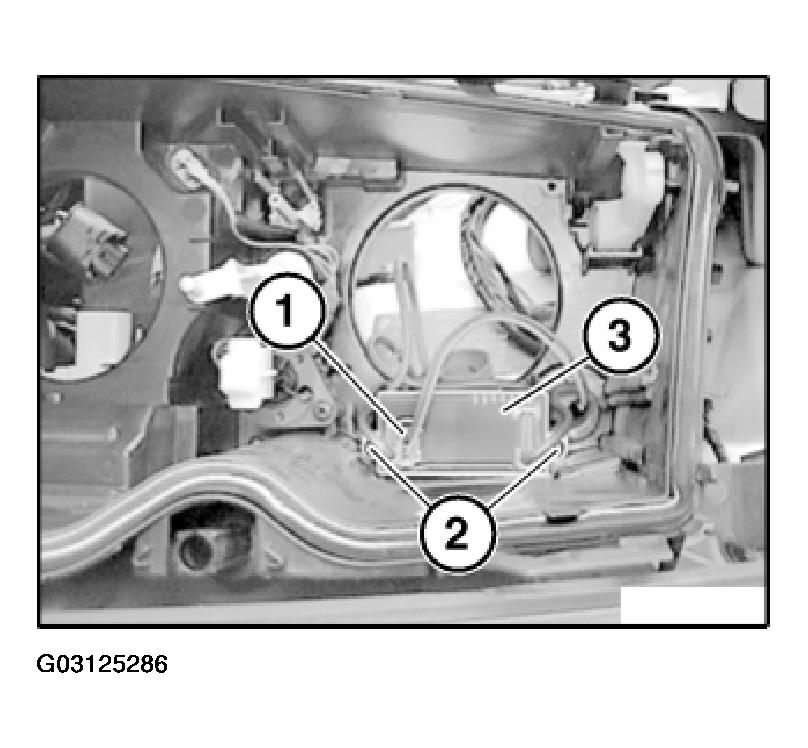

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

Loosen screws (1).

Raise ignition unit for xenon headlight (2) and disconnect plug connection (3).

Remove ignition unit for xenon headlight (2).

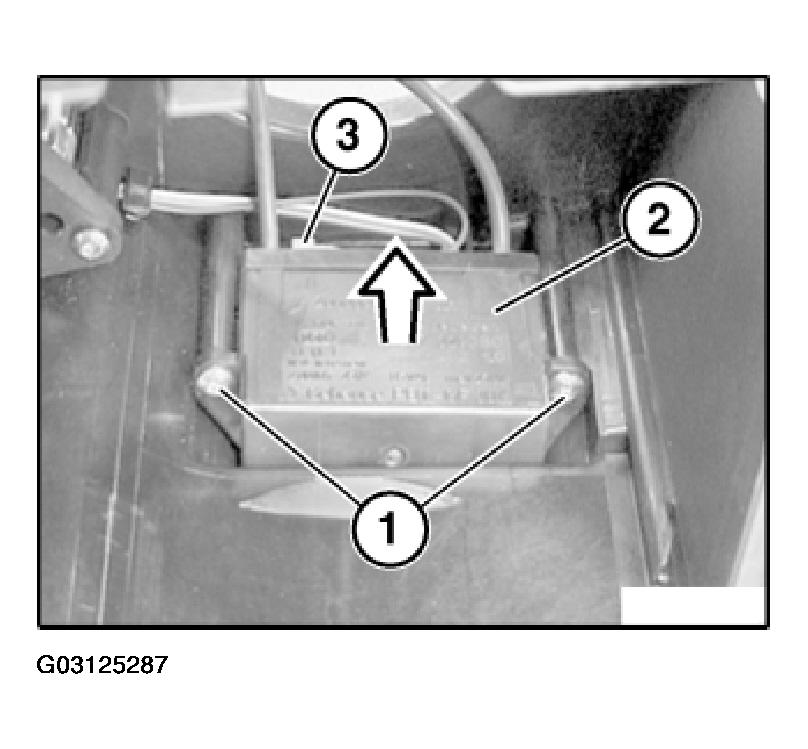

Fig 2: Removing Ignition Unit For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
