63 12 860 Replacing control unit for left xenon headlight (saloon/sedan, touring)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.
Remove left headlight (xenon headlight). See 63 12 001 Removing and installing/replacing left headlight

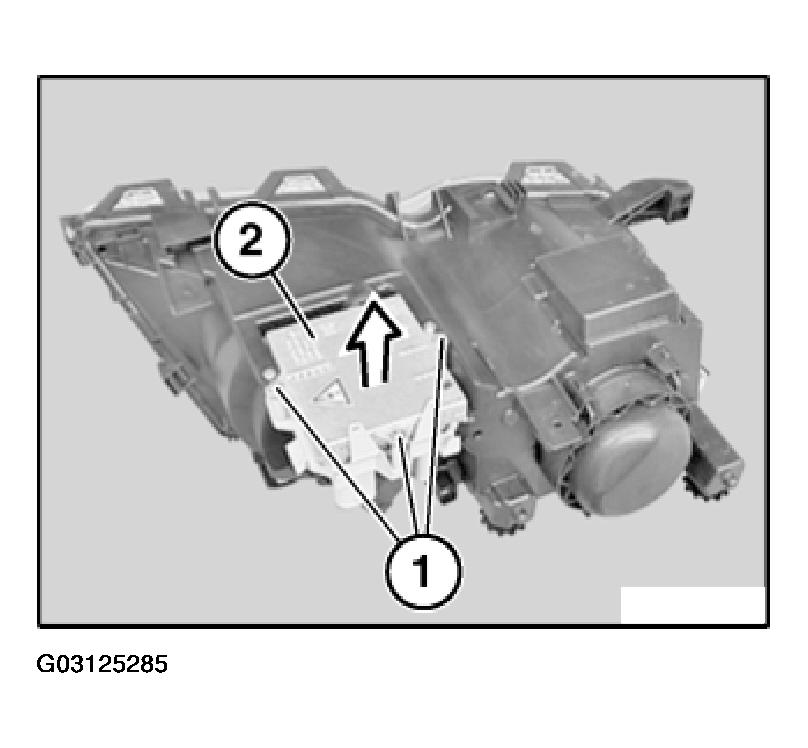

Up to 09/2001:
Loosen screws (1).
Pull xenon headlight control unit holder with control unit for xenon headlight (2) in direction of arrow out of guides and place to one side.
Installation:
Ensure correct cable routing.
Loosen screws (1).
Detach control unit for xenon headlight (3) from holder of control unit for xenon headlight (2) and remove.

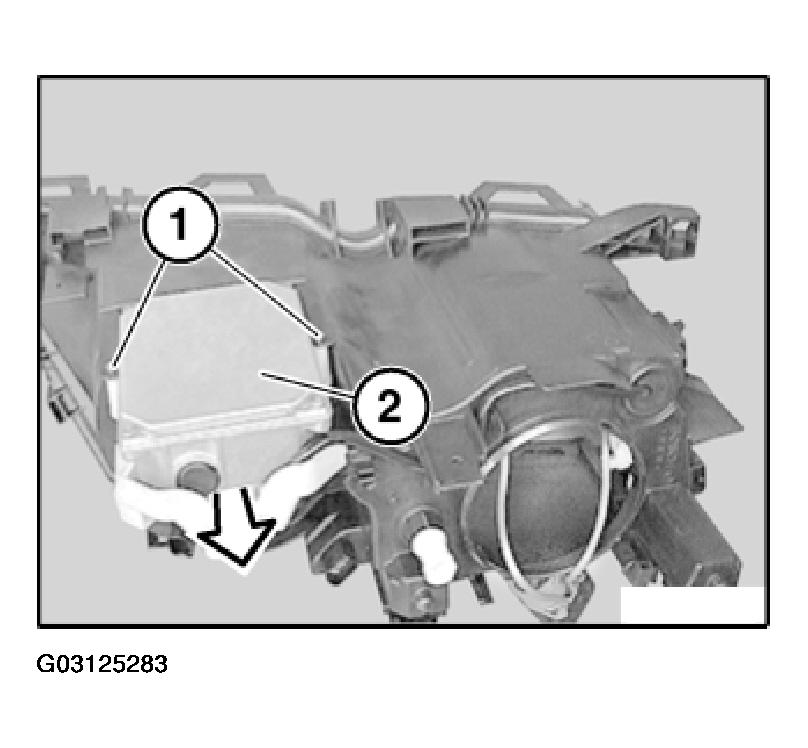

From 09/2001:
Loosen screws (1).
Remove control unit for xenon headlight (2). (See below)
