Special tools required:

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

64 1 020

Version 1:

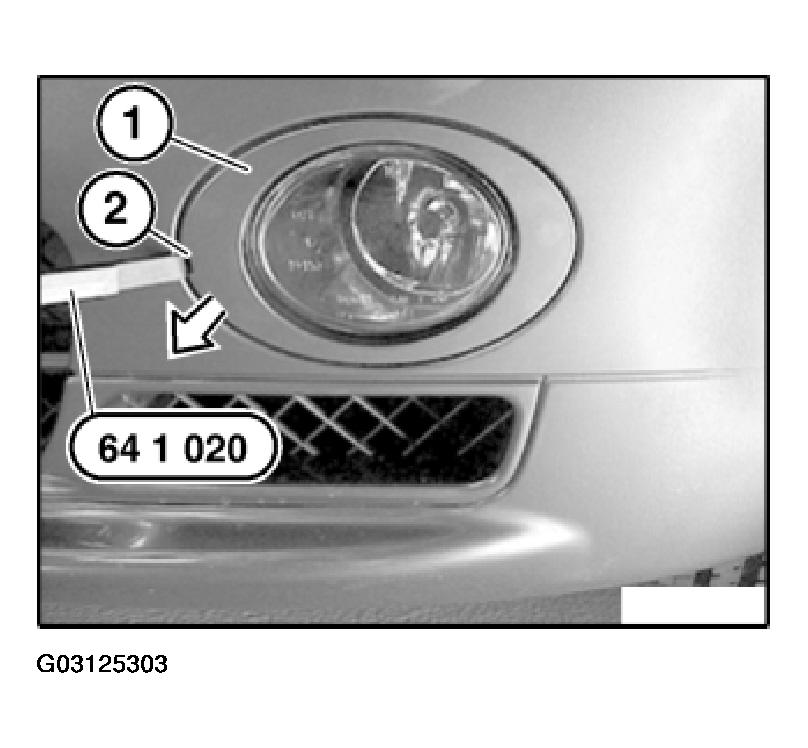

Place special tool 64 1 020 in opening (2) and unclip trim (1) in direction of arrow.

Installation:

Make sure trim (1) engages correctly.

Fig 1: Placing Special Tool In Opening & Unclipping Trim

Courtesy of BMW OF NORTH AMERICA, INC.

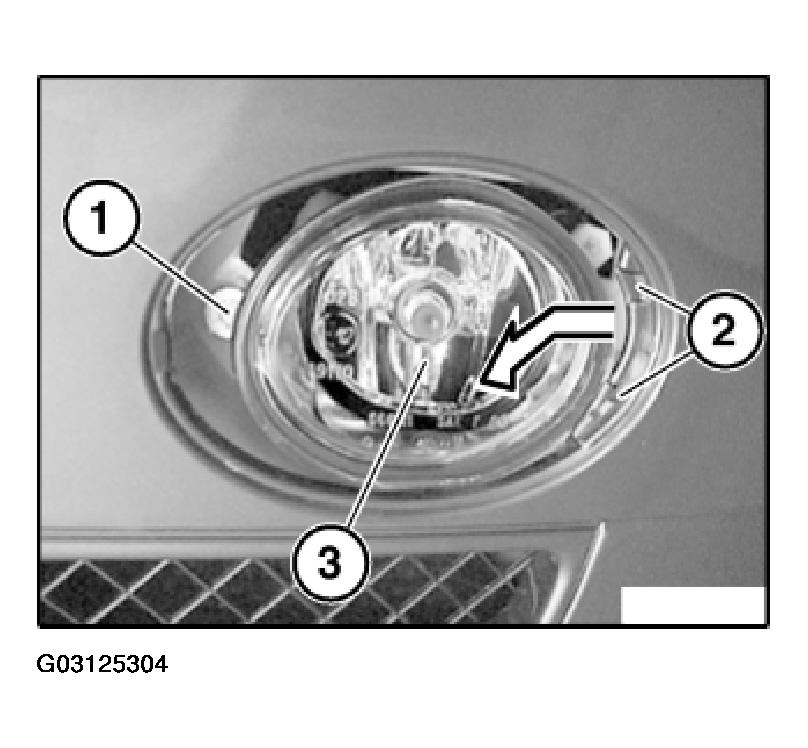

Release screw (1).

Feed fog lamp insert (3) in direction of arrow out of outer guides (2) and remove.

Disconnect plug connection behind it and remove fog lamp insert (3).

Installation:

Make sure fog lamp insert (3) is correctly seated in outer guides (2).

Make sure ventilation grommet of fog lamp insert (3) is laid without kinks and is sufficiently firmly seated.

If necessary, adjust fog lamp.

Fig 2: Checking Fog Lamp Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

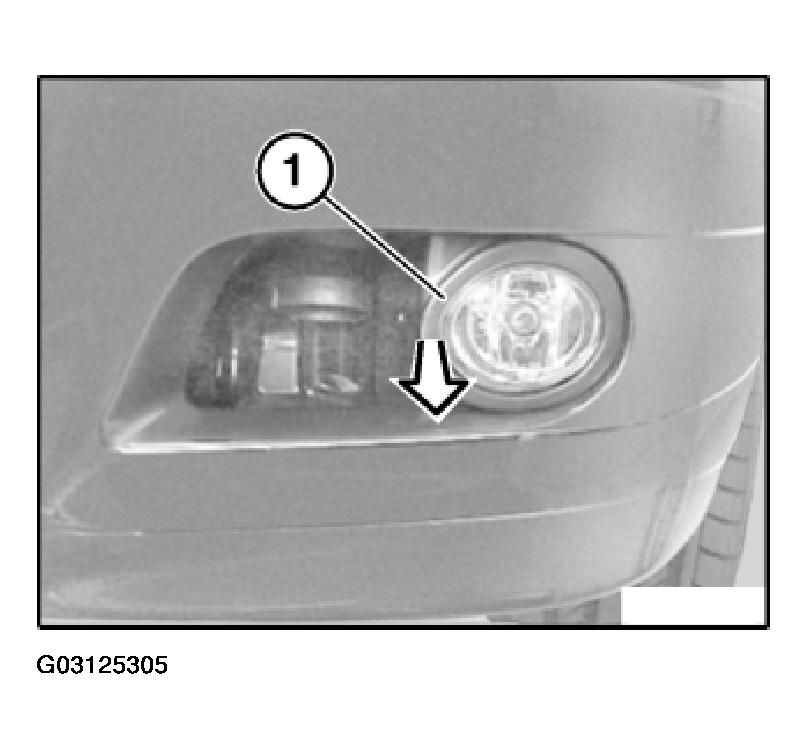

Unclip trim (1) in direction of arrow.

Installation:

Make sure trim (1) engages correctly.

Fig 3: Unclipping Trim In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

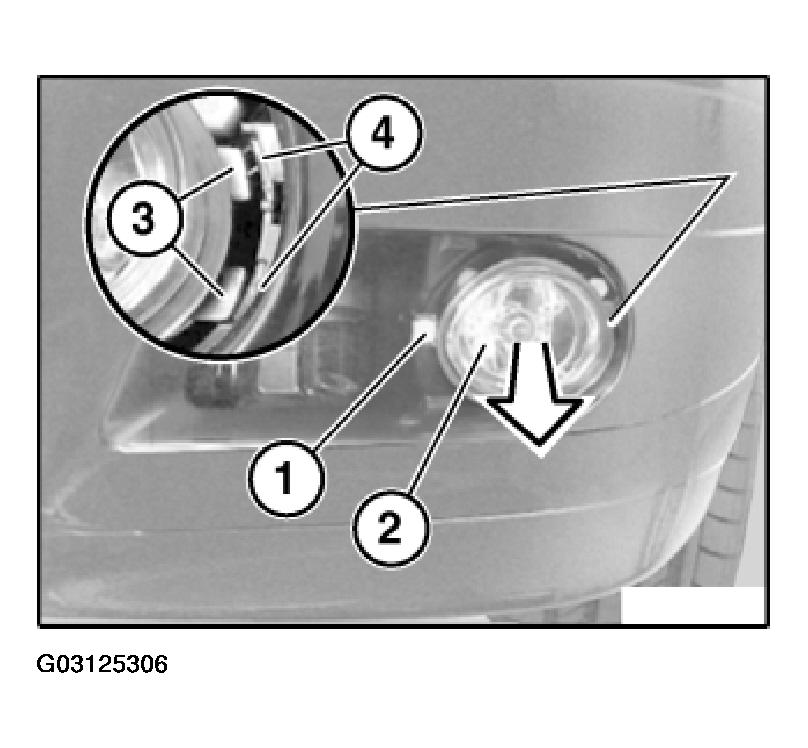

Release screw (1).

Withdraw fog lamp insert (2) in direction of arrow.

Disconnect plug connection behind it and remove fog lamp insert (2).

Installation:

Feed lugs (3) into outer guides (4). Make sure ventilation grommet of fog lamp insert (2) is laid without kinks and is sufficiently firmly seated.

If necessary, adjust fog lamp.

Fig 4: Feeding Lugs Into Outer Guides

Courtesy of BMW OF NORTH AMERICA, INC.
