Special tools required:

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

009317

Up to 09/2001:

Lever out fog lamp insert (1) with special tool 00 9 317 and fold out in direction of arrow.

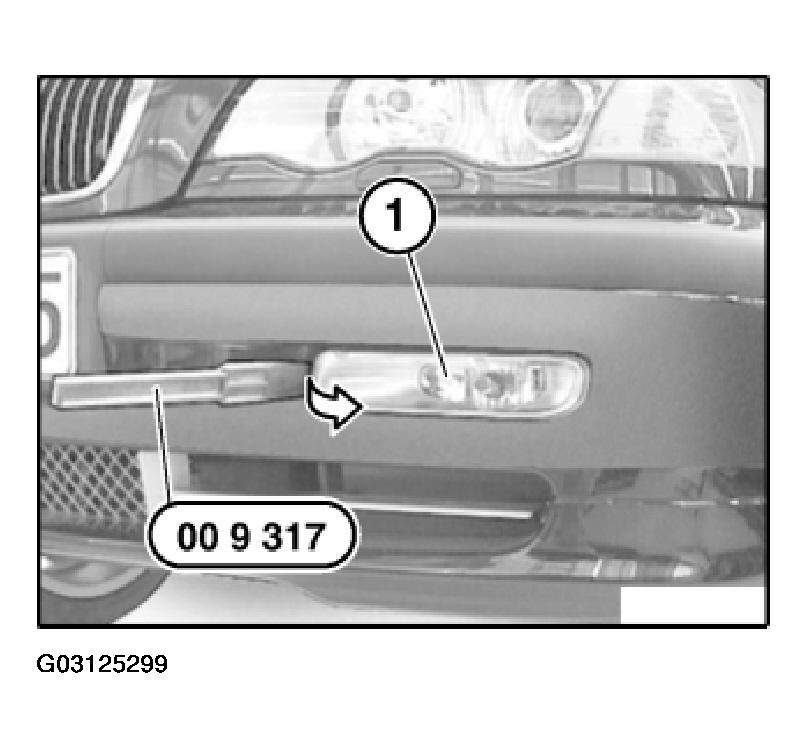

Fig 1: Removing Fog Lamp Insert With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed detent lugs (1) into outer guide (2).
Clip inner fog lamp insert into retainer.

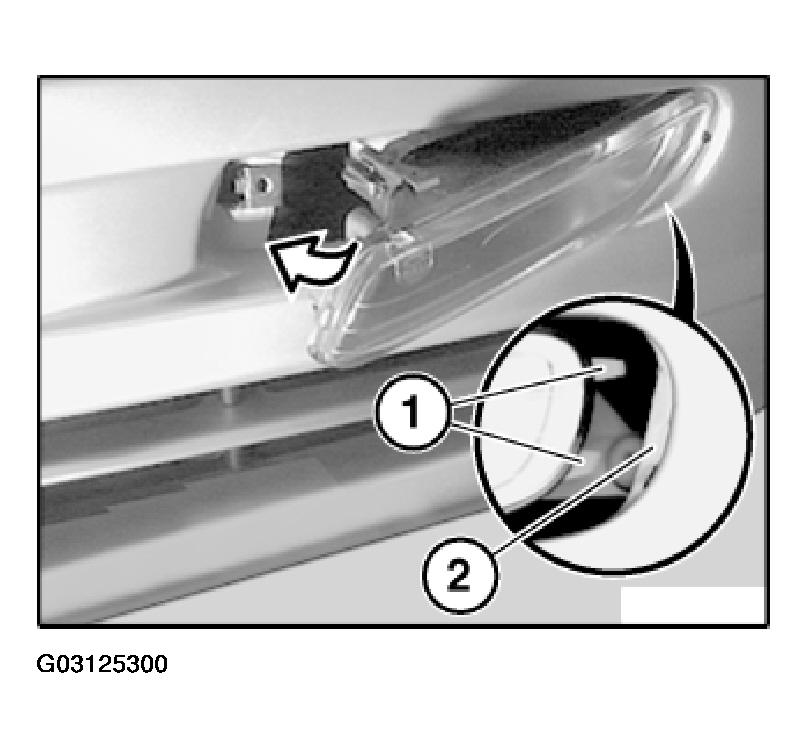

Fig 2: Feeding Detent Lugs Into Outer Guide
Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection and remove fog lamp insert.

Replacement:

Adjust front fog lamps.

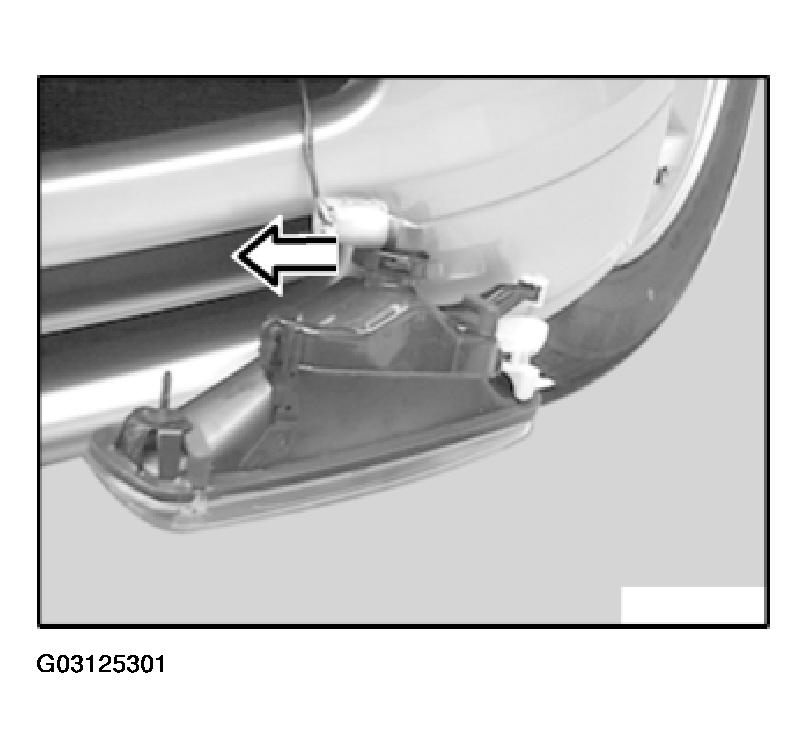

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

Left side only: Remove outside temperature sensor.

Remove cover from front wheel housing. Disconnect plug connection (1). Release screws (2) and remove fog lamp insert (3) in direction of arrow.

Installation:

Make sure ventilation grommet is laid without kinks and is sufficiently firmly seated.

Replacement:

Adjust front fog lamps.

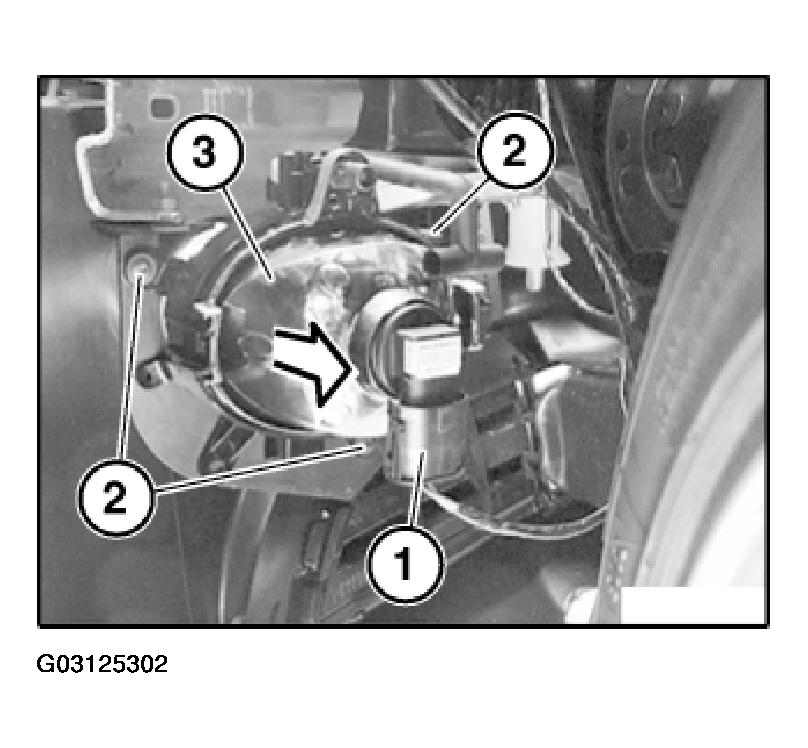

Fig 4: Releasing Screws & Removing Fog Lamp Insert In Direction Of Arrow
Courtesy of BMW OF NORTH AMERICA, INC.
