High-beam headlamp:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

The spray contact point must be located in the center of the high-beam headlamp.

To adjust, slowly pull out spray nozzle fully with aid of special tool 64 1 020 and adjust spray contact point with special tool 00 9 100

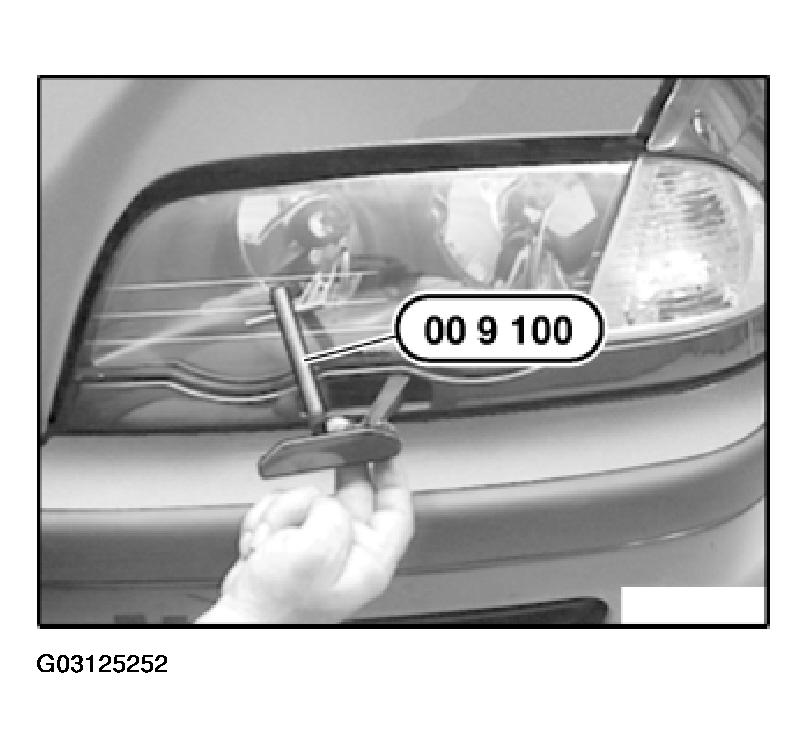

Fig 1: Adjusting Spray Contact Point (High-Beam Headlamp)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After checking the contact points, turn ignition off and on again before repeating the spray procedure. The function of the headlight cleaning system is otherwise disabled for approx. 3 minutes.
