54 12 497 Removing and installing / replacing wind deflector for glass sliding/tilting sunroof
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

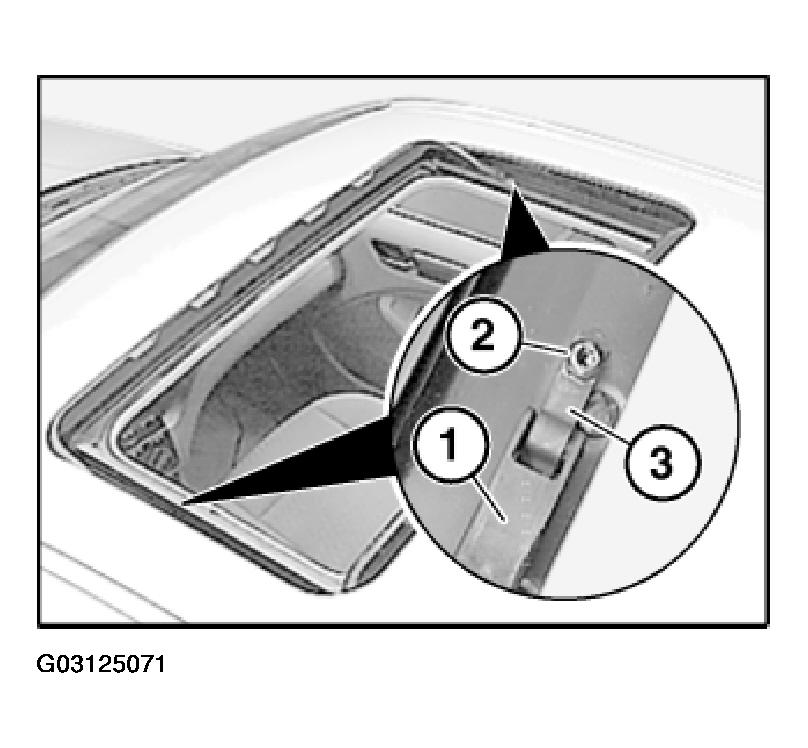

Open glass sunroof lid.
Press down wind deflector (1).
Release screws (2).
Remove spring (3) on left/right and wind deflector (1).
Installation:
- Tightening torque. Refer to SLIDE/TILT ROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .
Installation:

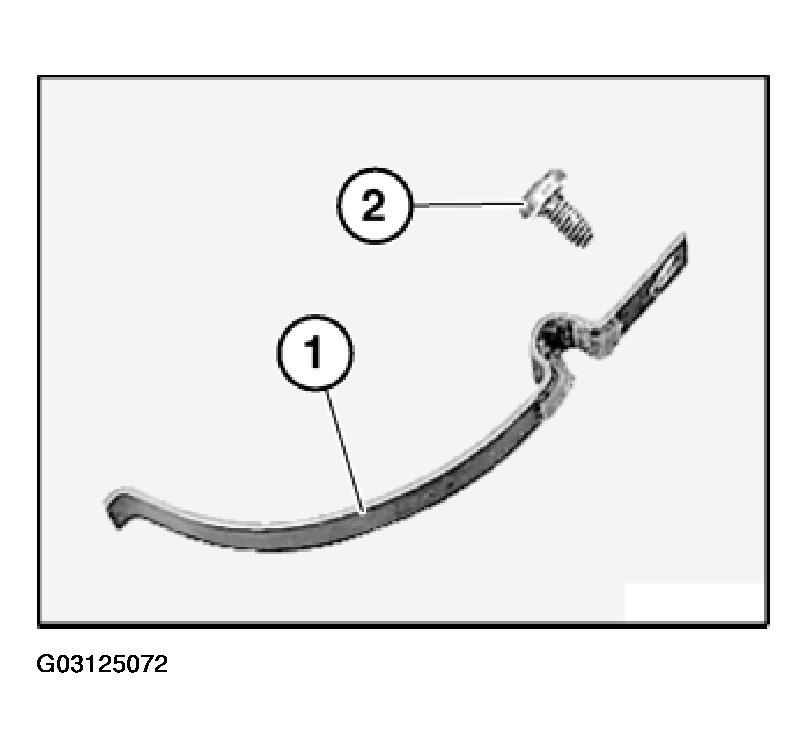

- If necessary, replace faulty spring (1) and screw (2).
