54 12 211 Removing and installing complete glass slide/tilt sunroof (frame)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove headliner. See 51 44 001 REMOVING AND INSTALLING/REPLACING HEADLINER (WITHOUT SLIDE/TILT SUNROOF)

NOTE:

Close glass slide/tilt sunroof lid.
Move front seats backwards/downwards as far as possible.
Remove glass slide/tilt sunroof with a second person helping.

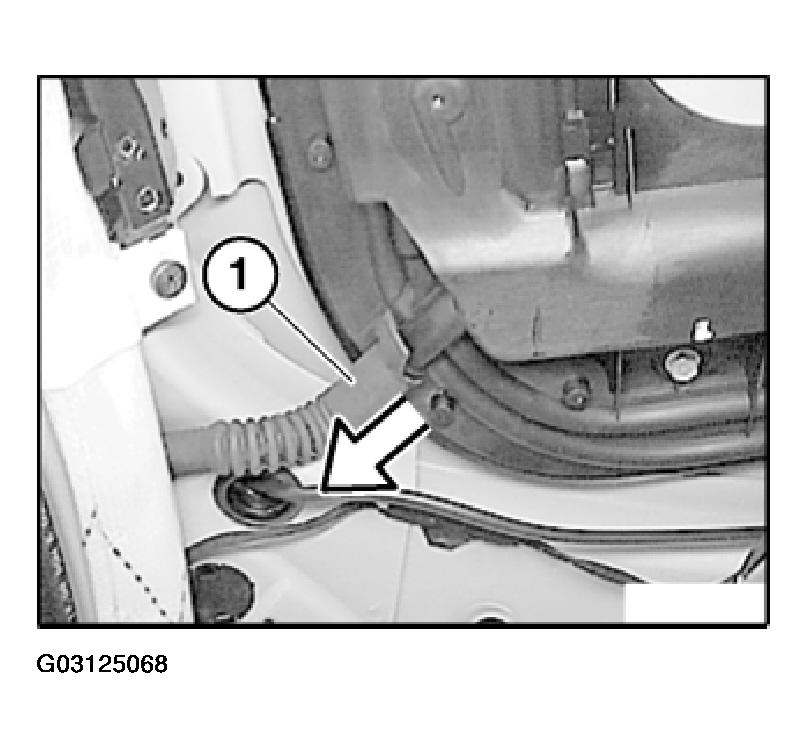

Detach all water drain hoses (1).

Fig 1: Detaching All Water Drain Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection from glass sunroof drive.

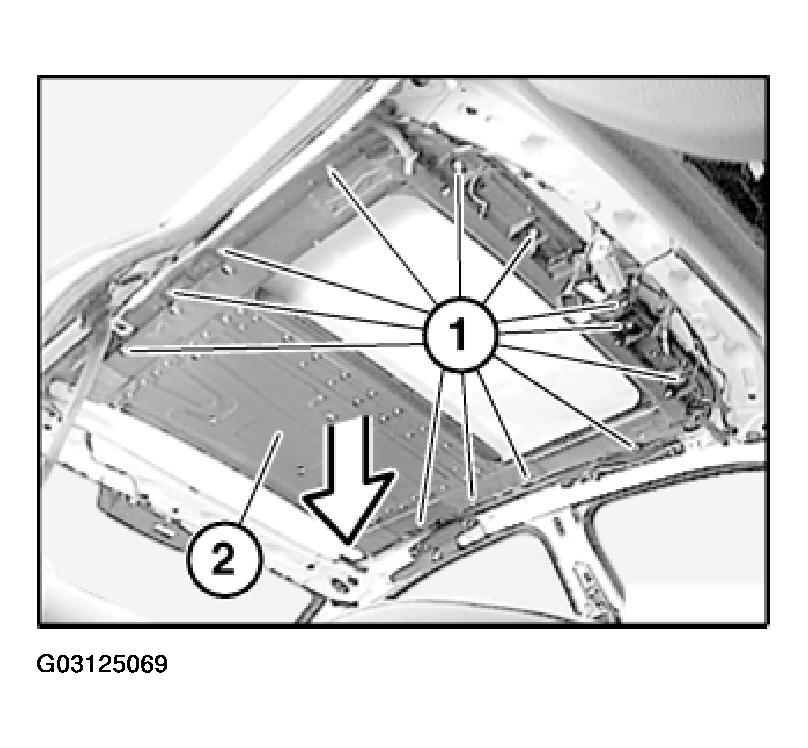

Release screws (1) and remove glass sunroof frame (2).

Installation:

Tightening torque. Refer to SLIDE/TILT ROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .

Fig 2: Removing Glass Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

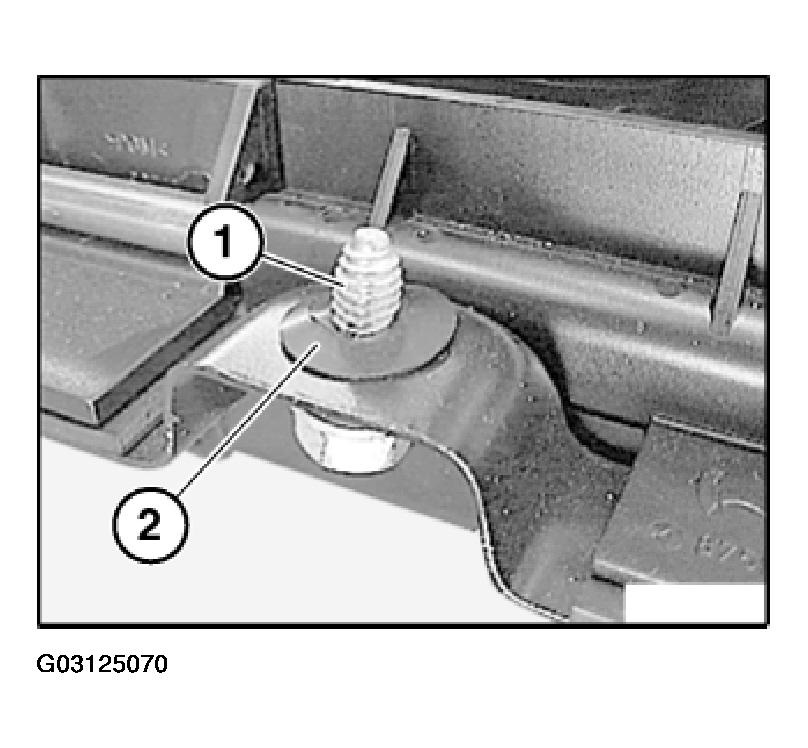

NOTE: In production, the screws (1) are secured with the washers (2) by robots.
In hand assembly, the washers (2) are not fitted.

Fig 3: Identifying Screws & Washer

Courtesy of BMW OF NORTH AMERICA, INC.
