54 12 138 Removing and installing/replacing water gutter for glass slide/tilt sunroof (from 09/2001)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glass sunroof lid. 54 12 115 Removing and installing glass sliding/tilting sunroof lid

Unhook lever (2) of water gutter on left/right from rail (1).

Installation:

Make sure lever (1) is correctly locked.

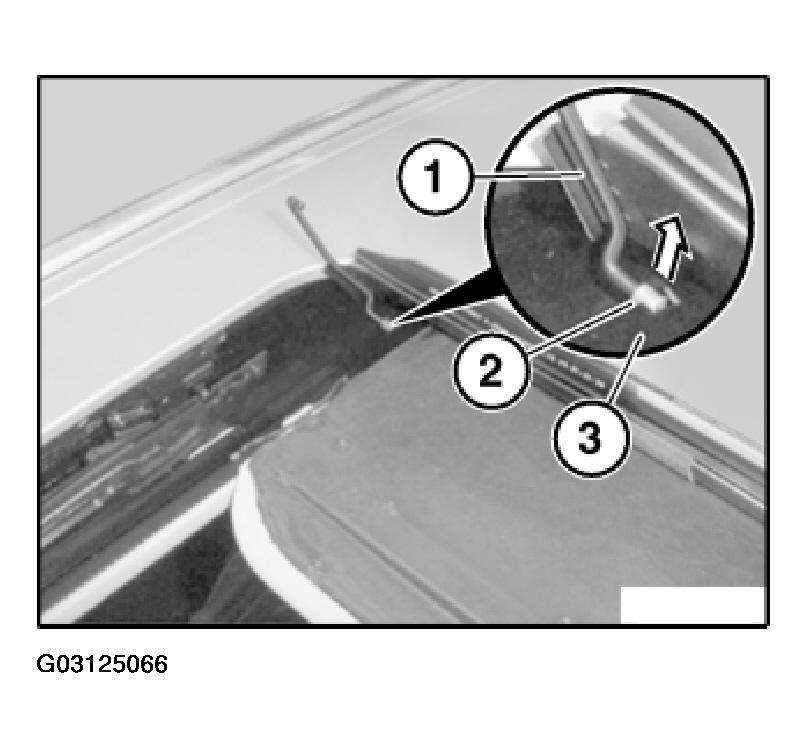

Fig 1: Unhooking Lever Of Water Gutter On Left/Right From Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Pull water gutter forwards until roller (2) can be seen through opening in guide channel (3).

Lever (1):

on right side to be pulled upwards
on left side to be unhooked from guide channel

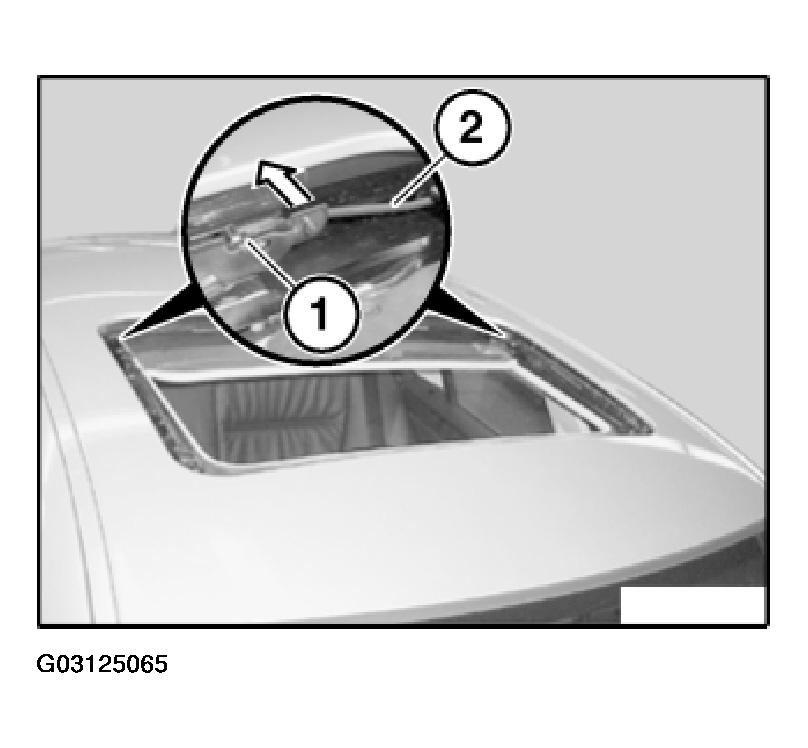

Fig 2: Pulling Water Gutter
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of water gutter must not be missing or damaged:

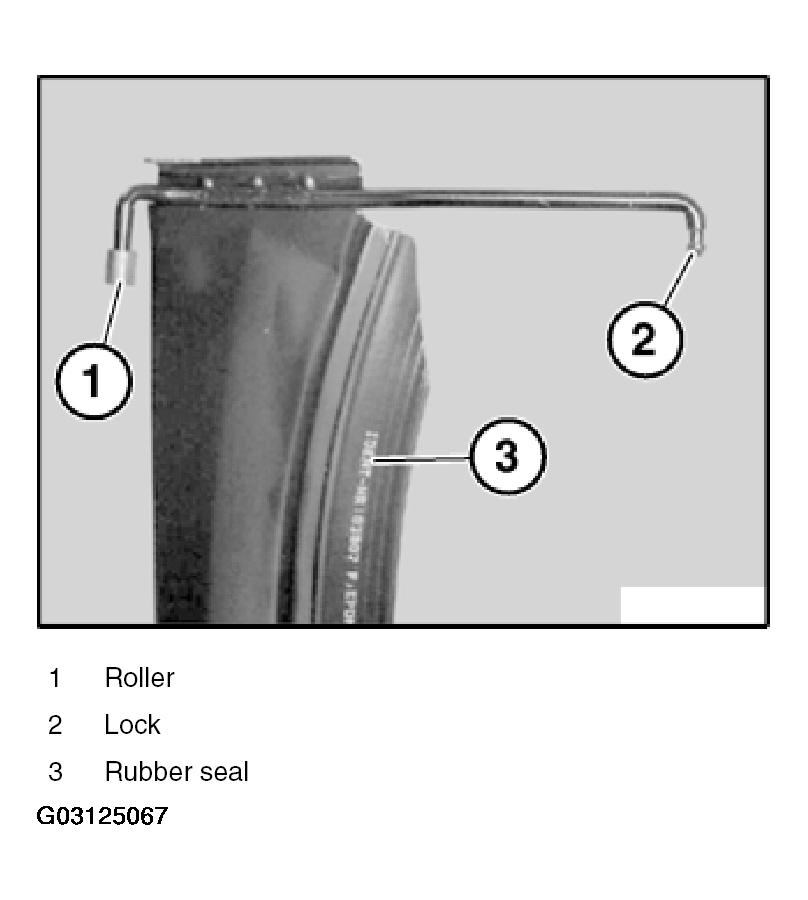

Fig 3: Identifying Parts Of Water Gutter

Courtesy of BMW OF NORTH AMERICA, INC.

Check function.
