54 12 136 Removing and installing/replacing headliner for glass slide/tilt sunroof lid

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If headliner is difficult to move, apply a light coat of Renax GL1 (manufactured by Fuchs) to guide duct.

Remove glass sunroof lid. See 54 12 115 Removing and installing glass sliding/tilting sunroof lid

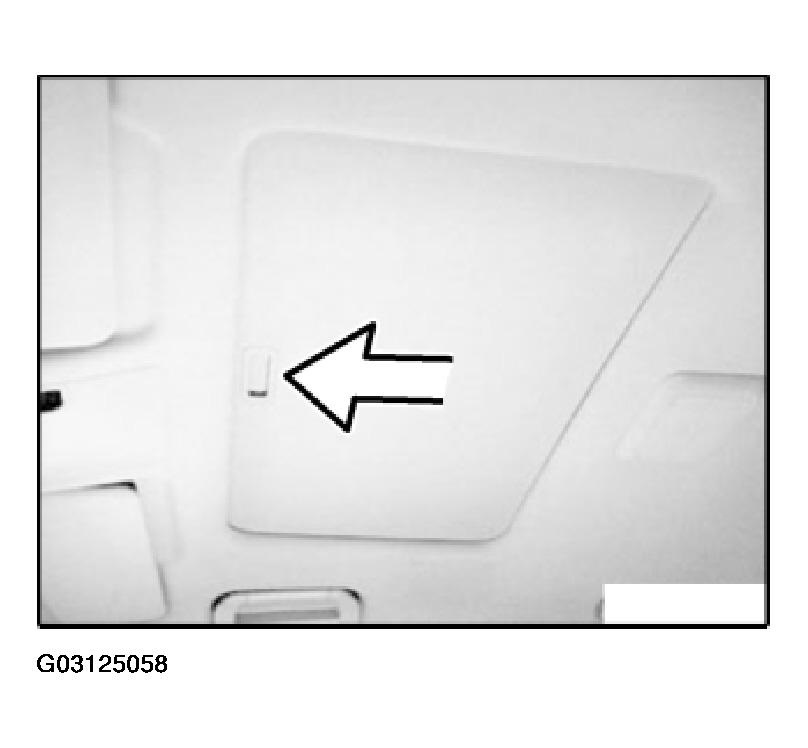

Slowly pull headliner (floating) fully towards front.

Fig 1: Pulling Headliner (Floating) Fully Towards Front

G03125058

Courtesy of BMW OF NORTH AMERICA, INC.

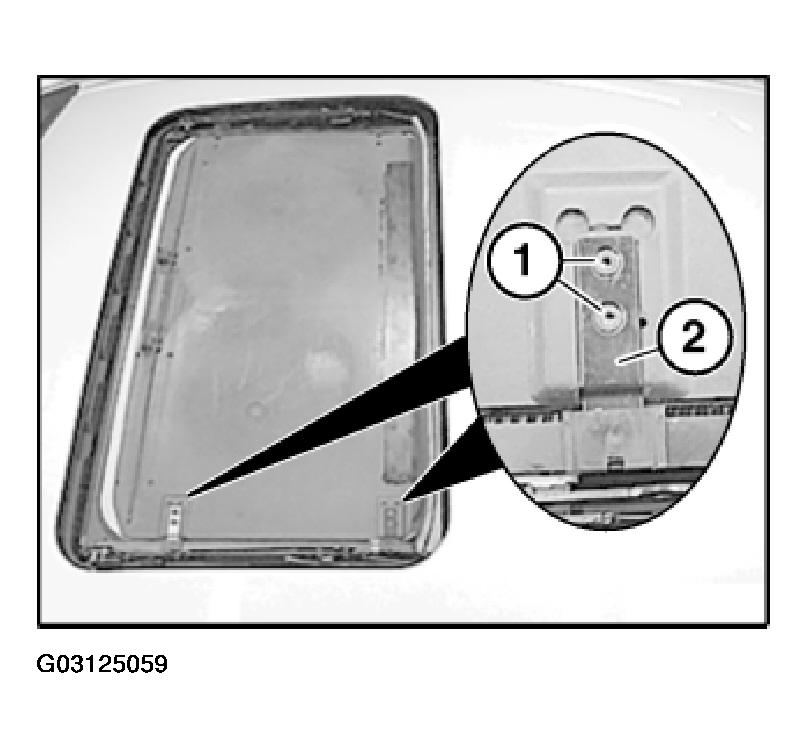

Release screws (1) from sliding member (2).

Installation:

Tightening torque. Refer to SLIDE/TILT ROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .

Fig 2: Releasing Screws From Sliding Member

G03125059

Courtesy of BMW OF NORTH AMERICA, INC.

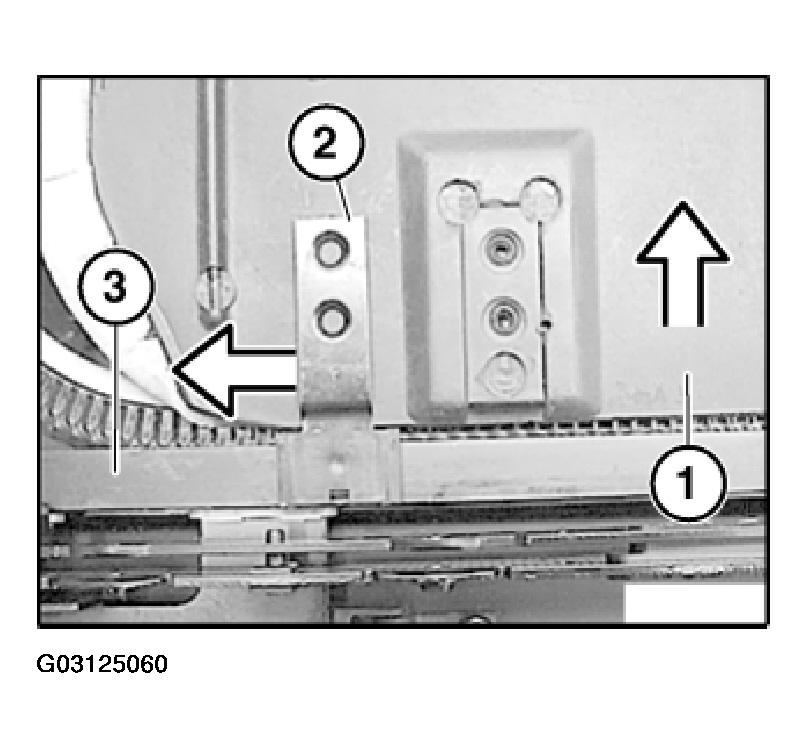

Press headliner (1) to right against springs and at same time detach sliding member (2) from guide duct (3) and headliner (1).

Fig 3: Detaching Sliding Member From Guide Duct & Headliner

G03125060

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

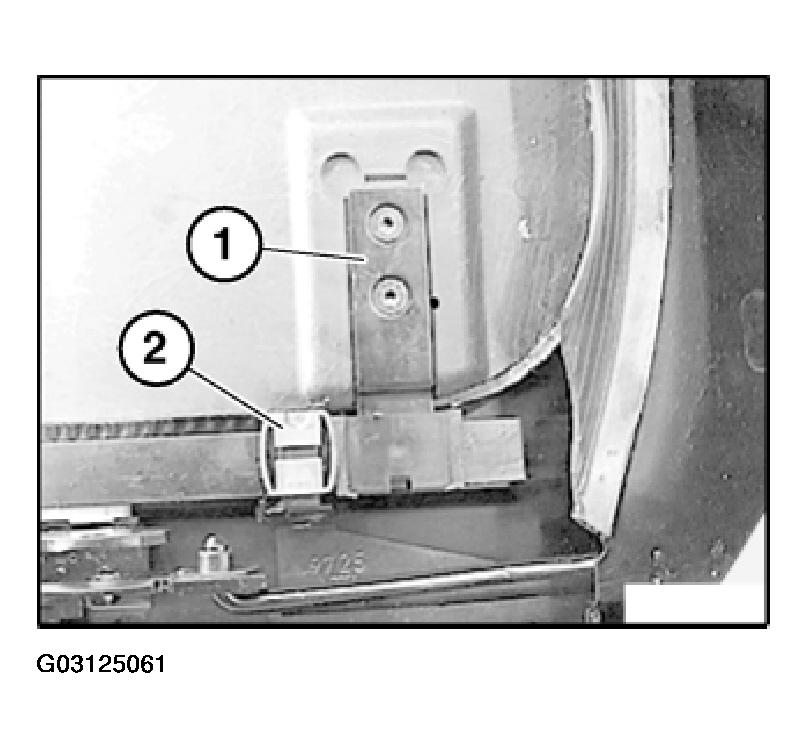

Rear sliding member (1) must be fitted behind driver (2).

Fig 4: Installing Rear Sliding Member

G03125061

Courtesy of BMW OF NORTH AMERICA, INC.

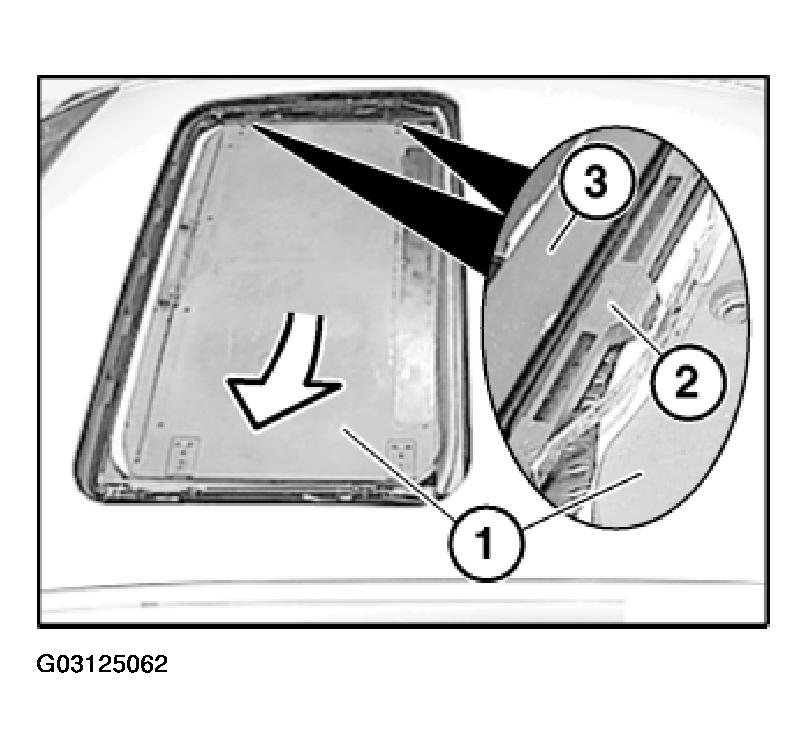

Pull headliner (1) to left/upwards with sliding members (2) out of rail (3).

Fig 5: Pulling Headliner To Left/Upwards With Sliding Members Out Of Rail

G03125062

Courtesy of BMW OF NORTH AMERICA, INC.

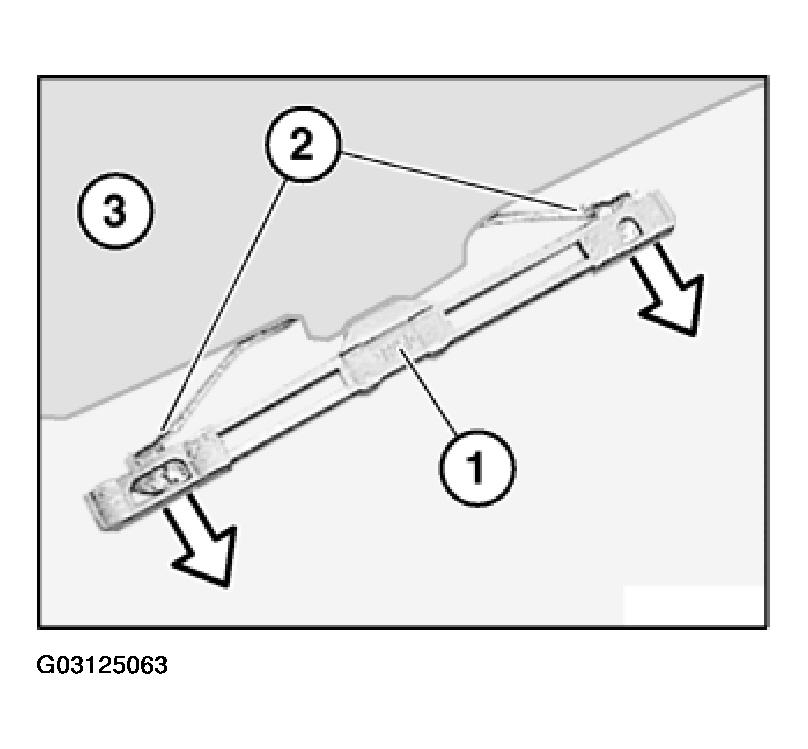

Pull sliding member (1) at front/rear off springs (2) of headliner (3).

Fig 6: Pulling Sliding Member At Front/Rear Off Springs Of Headliner

G03125063

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

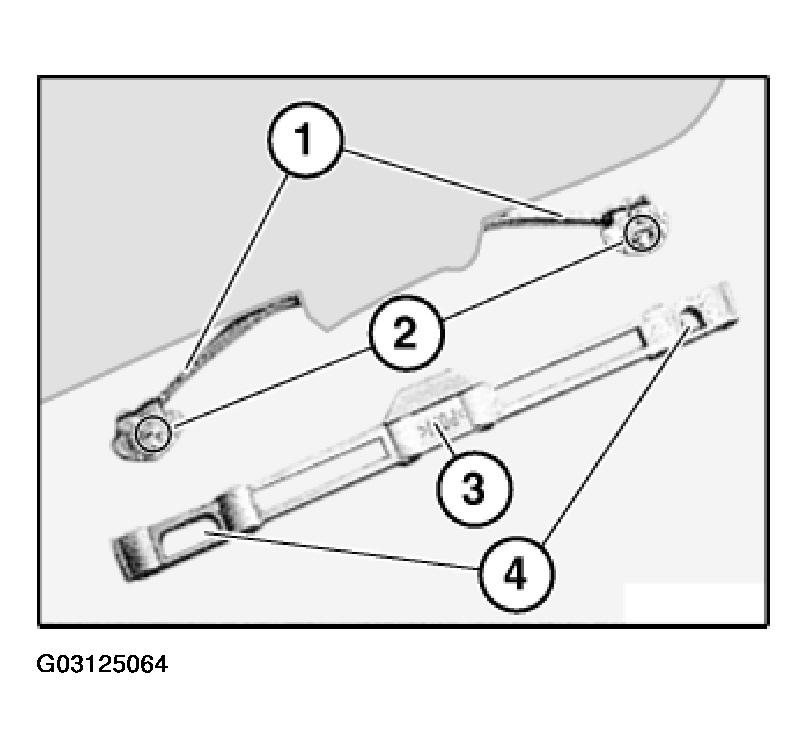

Nubs (2) of spring (1) must snap into place in guides (4) of sliding member (3).

Fig 7: Installing Nubs Of Spring

G03125064

Courtesy of BMW OF NORTH AMERICA, INC.
