54 12 117 Replacing seal for glass sliding/tilting sunroof lid

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove glass slide/tilt sunroof lid, refer to 54 12 115 Removing and installing glass sliding/tilting sunroof lid .

Remove seal (1) from glass slide/tilt sunroof lid (2).

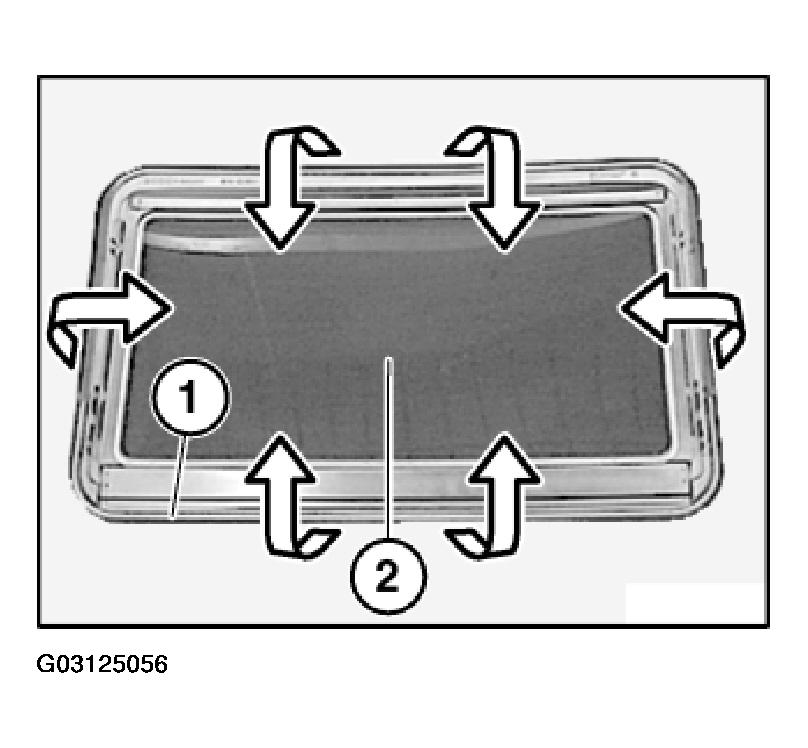

Fig 1: Removing Seal From Glass Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat guide channel (1) and seal (2) with soapy water.
Begin installation at rear center, with seal (3).
Do not pull seal too tightly in radii (leakage).

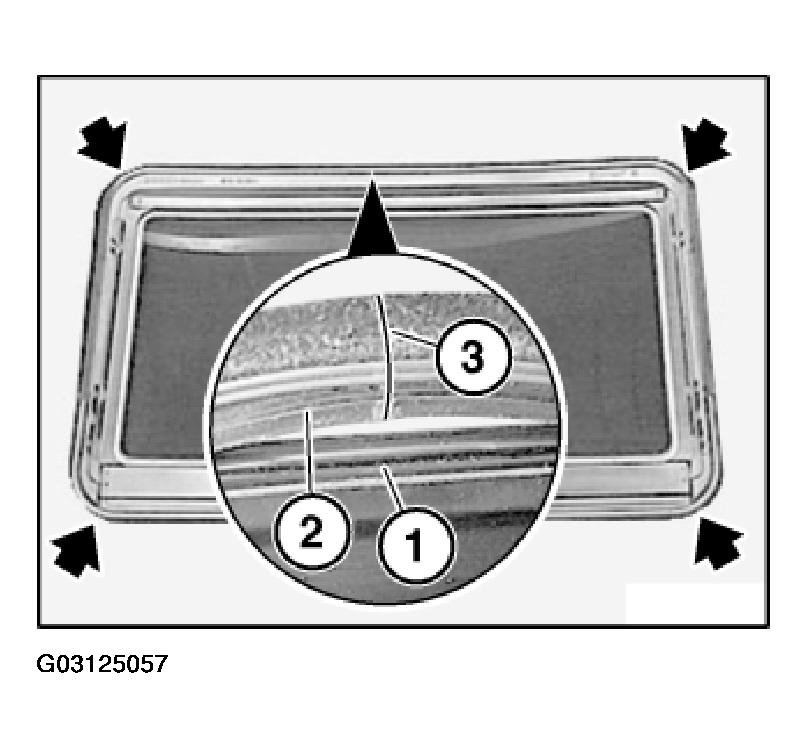

Fig 2: Identifying Guide Channel & Seal

Courtesy of BMW OF NORTH AMERICA, INC.
