54 12 003 Adjusting glass slide/tilt sunroof lid

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 315

Close glass sunroof lid (zero position).

Ideal adjustment:

Distance:
- Distance (A) between lid and front and rear of roof must be the same.
- Slide a credit card or identity card in between seal and lid. The card must show the same resistance.
Height:
- Front - flush to 1 mm deeper
- Rear - flush to 1 mm higher

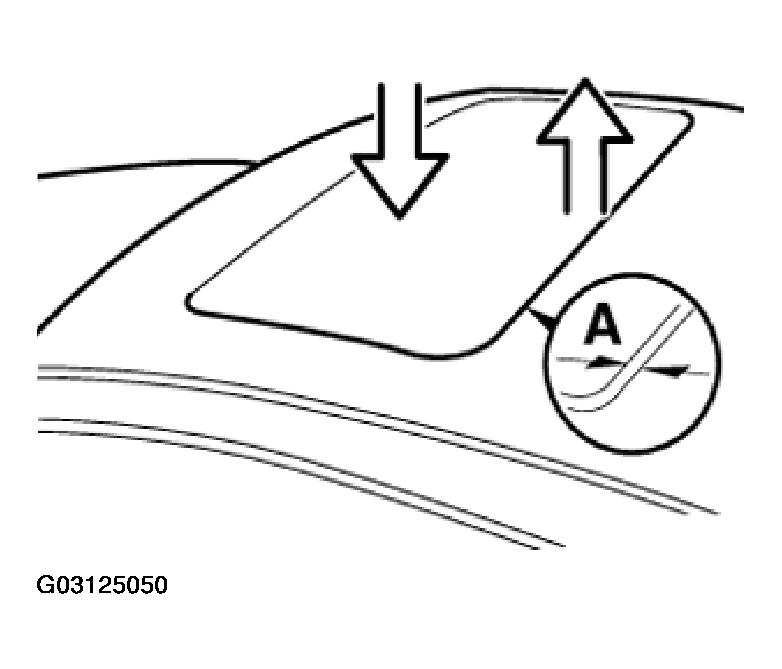

Fig 1: Identifying Distance Between Lid & Front & Rear Of Roof

Courtesy of BMW OF NORTH AMERICA, INC.

Adjustment/removal of glass slide/tilt sunroof lid:

Slowly slide headliner (floating) towards rear up to distance (A). Measurement (A) = 90 mm.

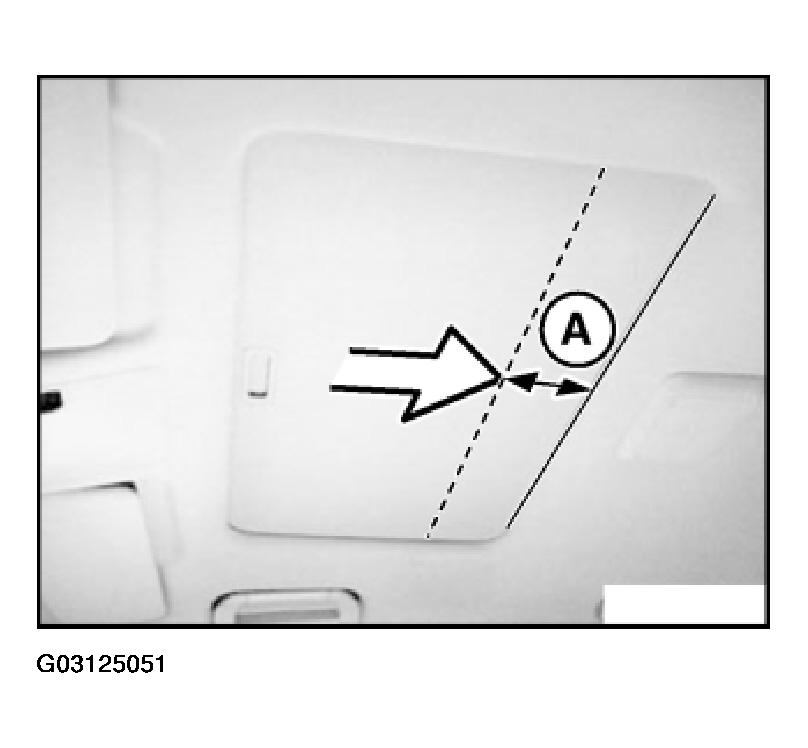

Fig 2: Identifying Distance For Sliding Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) on left/right.

NOTE: For adjustment, only slacken screws (1) to such an extent that glass sunroof lid (2) is still just adjustable.
To remove glass sunroof lid (2), release screws (1) completely.

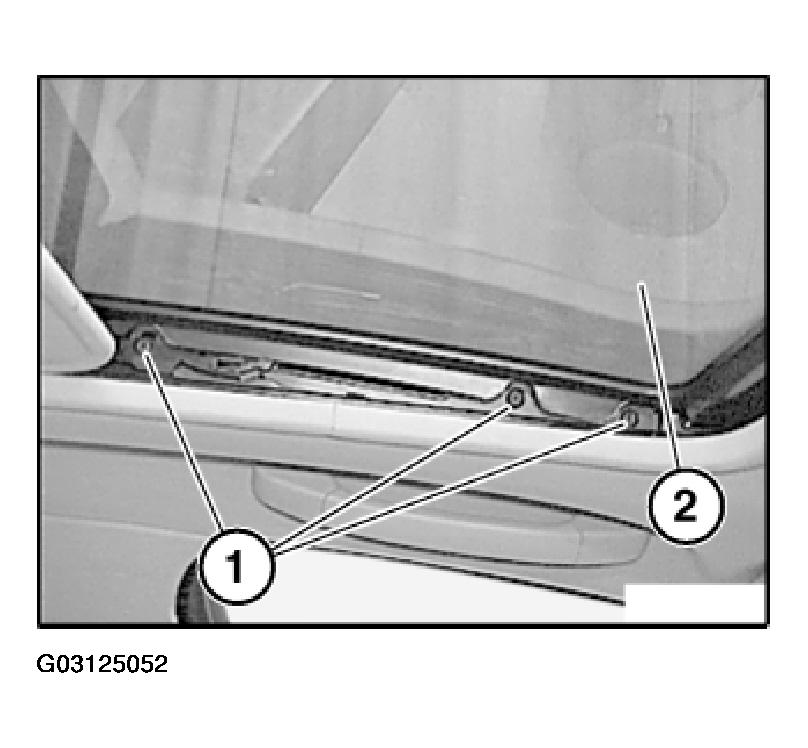

Fig 3: Removing Glass Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Height adjustment:

Adjust height of lid (1) to roof (2) with special tool 00 9 315 (gap wedge).

Press glass sunroof lid at front and rear upwards/downwards until ideal position is obtained.

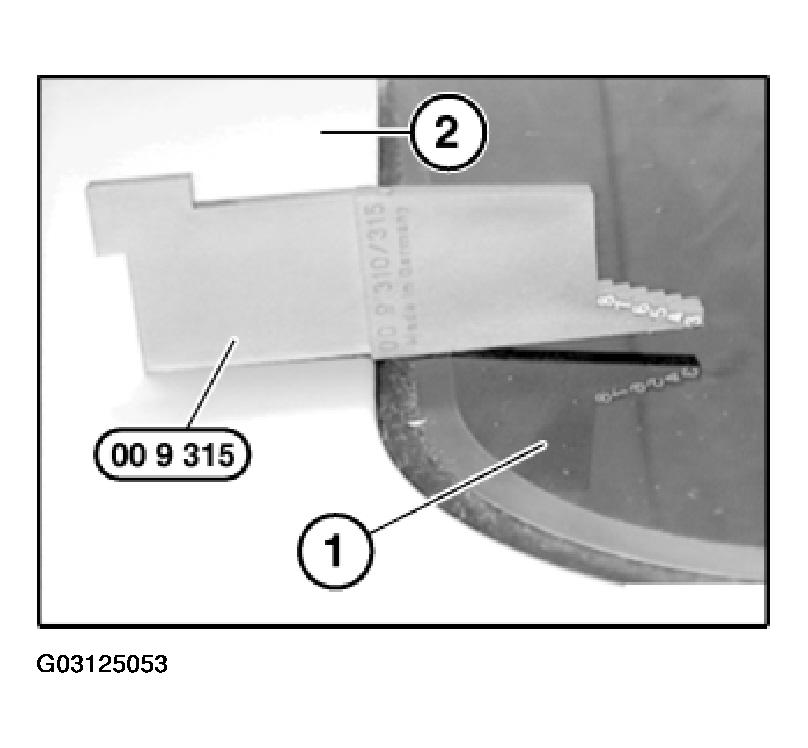

Fig 4: Adjusting Height Of Lid To Roof With Special Tool 00 9 315 (Gap Wedge)

Courtesy of BMW OF NORTH AMERICA, INC.

Distance adjustment:

Slide glass sunroof lid forwards/back until ideal position is obtained.
Tighten down screws.
Tightening torque. Refer to SLIDE/TILT ROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .
Check function and adjustment.

Replace screws (1) when removing and installing glass sunroof lid (2).

Installation:

Tightening torque. Refer to SLIDE/TILT ROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .

Installation:

Initialize sunroof.

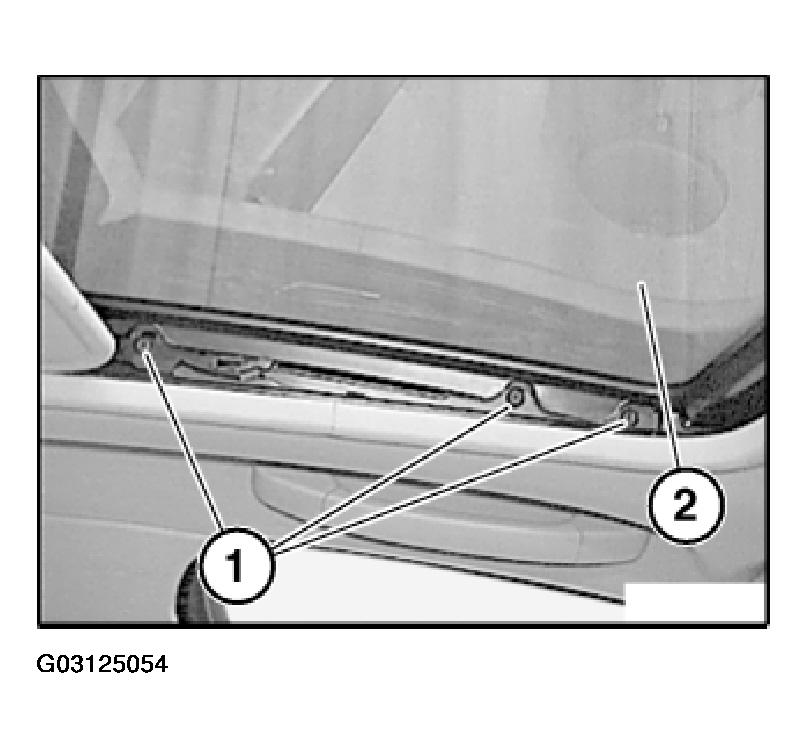

Fig 5: Removing & Installing Glass Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly pull headliner (floating) fully towards front.

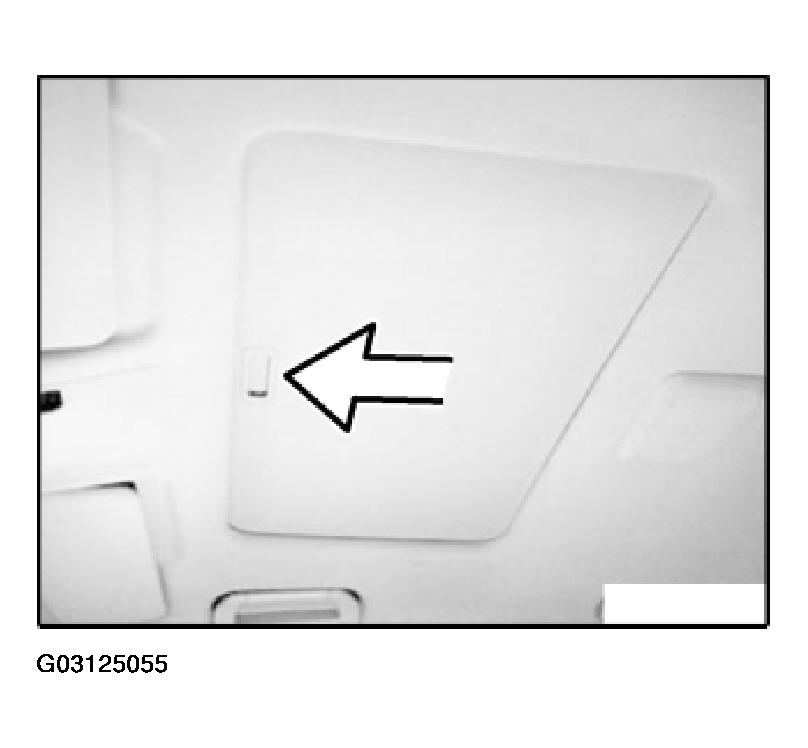

Fig 6: Pulling Headliner (Floating) Fully Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.
