52 26 033 Removing and installing/replacing upper cover section on armrest for rear seat
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

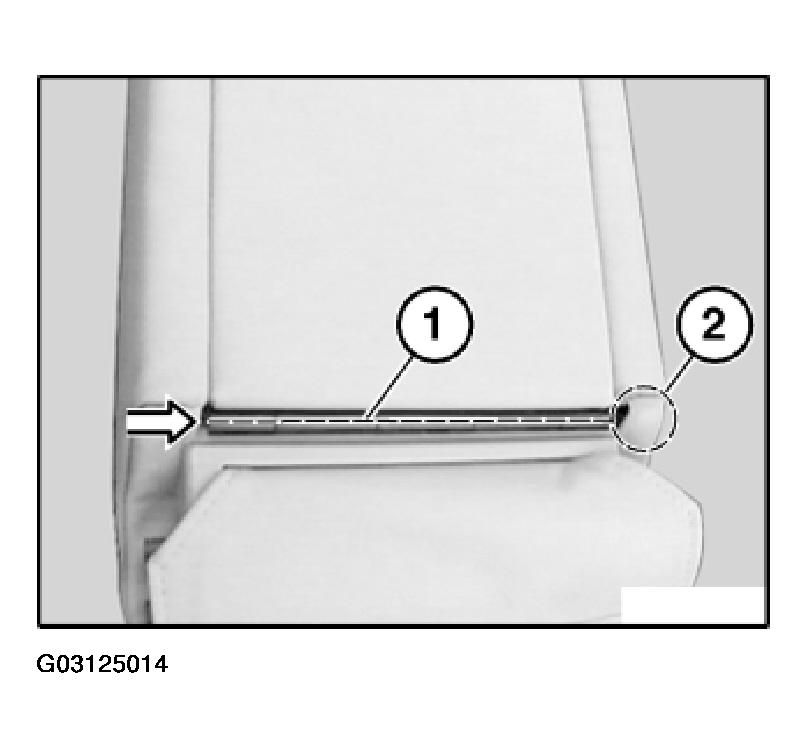

Drive out two-part hinge pin (1) with a suitable tool (bar, etc.), pressing material in area (2) on both sides (risk of damage).
Installation:
Drive in one hinge pin each from right and left. Hinge pins must be flush with outer edge of hinge.
