Special tools required:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

00 9 321
00 9 322

Fishbone 00 9 321
Plastic wedge 00 9 322

Open cup holder.

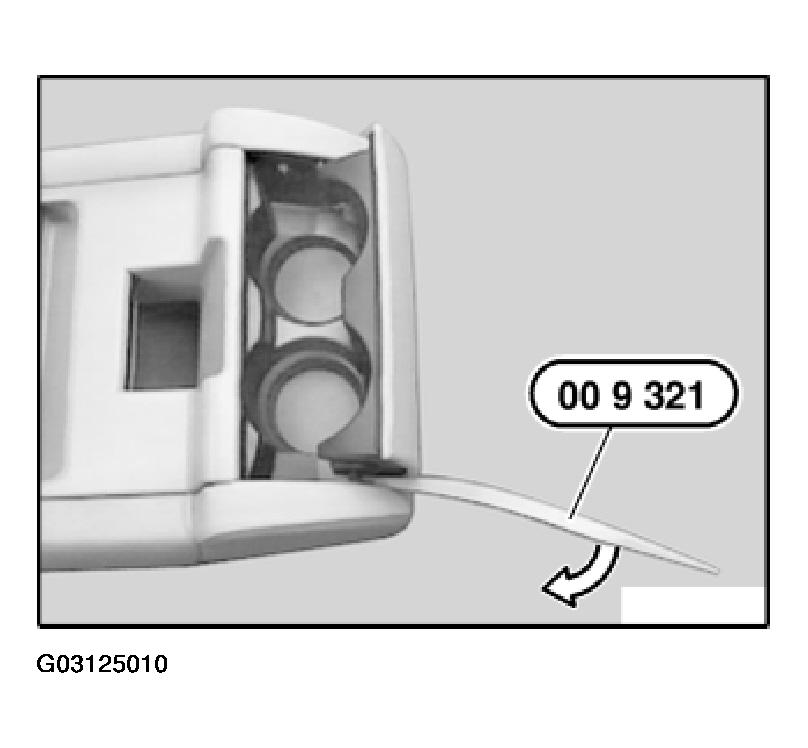

Lever out right cup holder with fishbone 00 9 321.

Fig 1: Removing Right Cup Holder With Fishbone 00 9 321

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

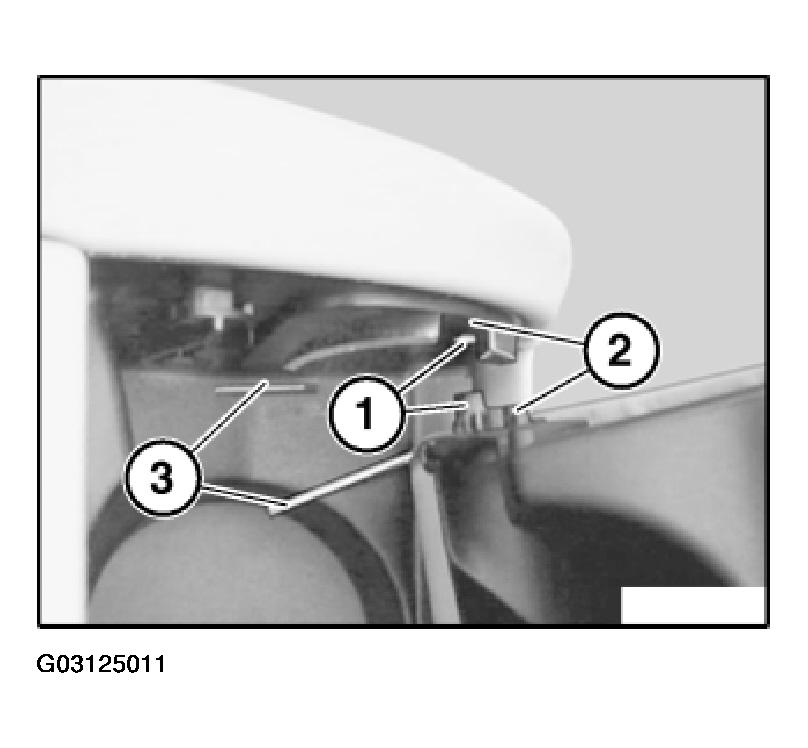

Insert pin (1) in bore; in so doing, make sure pinion (2) is located in opening.

Stow spring (3) behind rib.

Fig 2: Inserting Pin In Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

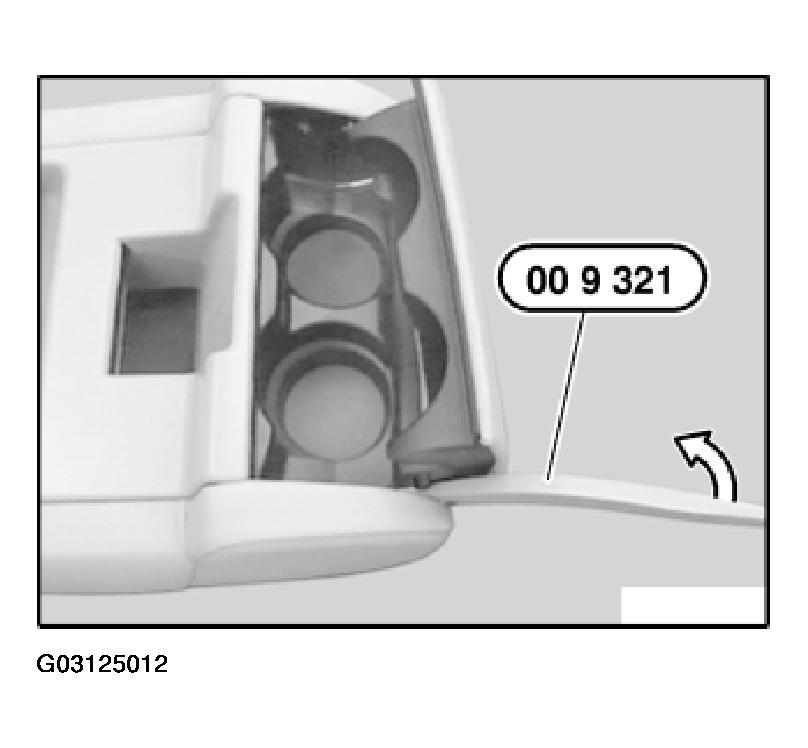

Lever in cup holder with fishbone 00 9 321, hinge pin must snap audibly into place.

Fig 3: Installing Cup Holder
Courtesy of BMW OF NORTH AMERICA, INC.

Described in following:

Replacing cup holder catch.

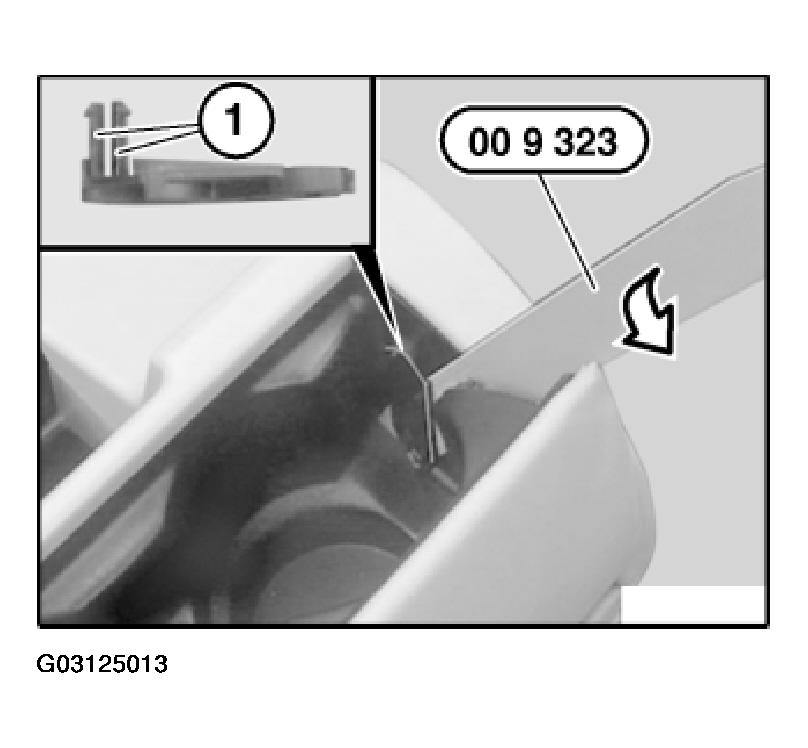

Slide plastic wedge 00 9 322 behind catch.

Turn plastic wedge at top inwards and unclip catch.

Installation:

Catch (1) must not be damaged.

Fig 4: Sliding Plastic Wedge 00 9 322 Behind Catch

Courtesy of BMW OF NORTH AMERICA, INC.
