52 15 198 Removing and installing/replacing rear panel on front left or right seat backrest (sports/manual)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Release clips (1) with side cutting pliers.

NOTE: Remove clip remainders.

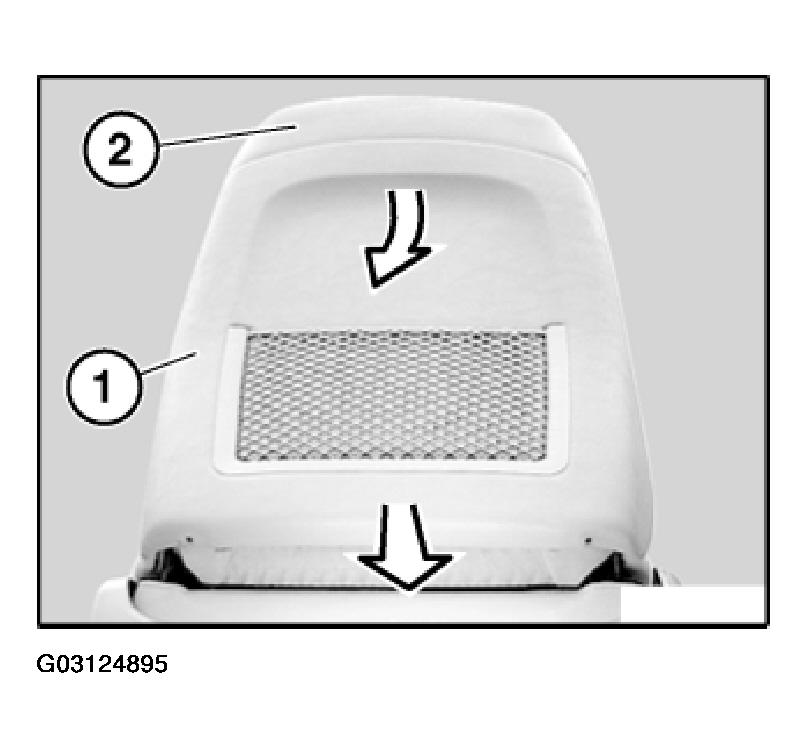

Fig 1: Releasing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out rear panel (1) at bottom towards rear and pull out towards bottom from backrest frame (2).

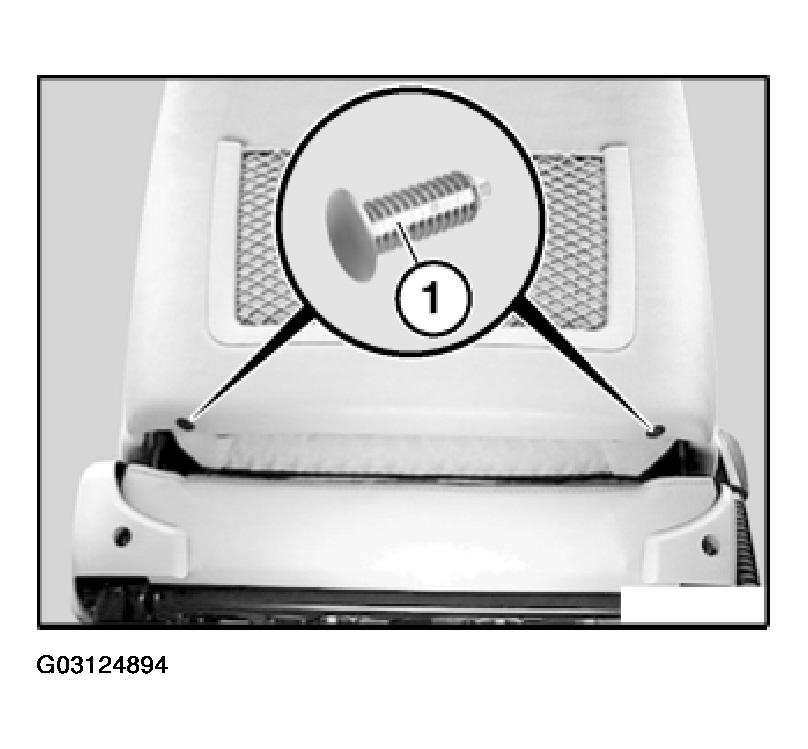

Fig 2: Removing Rear Panel From Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bores (1) and fastening set (2) of rear panel (3) must not be damaged.

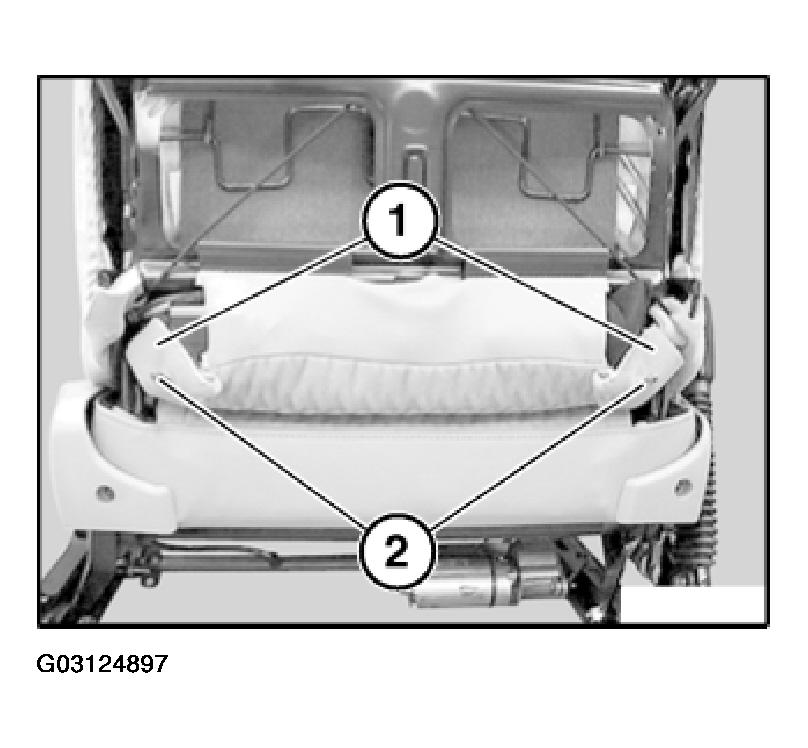

Fig 3: Identifying Bores & Fastening Set Of Rear Panel
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide backrest cover (1) on left/right over clip mount (2).

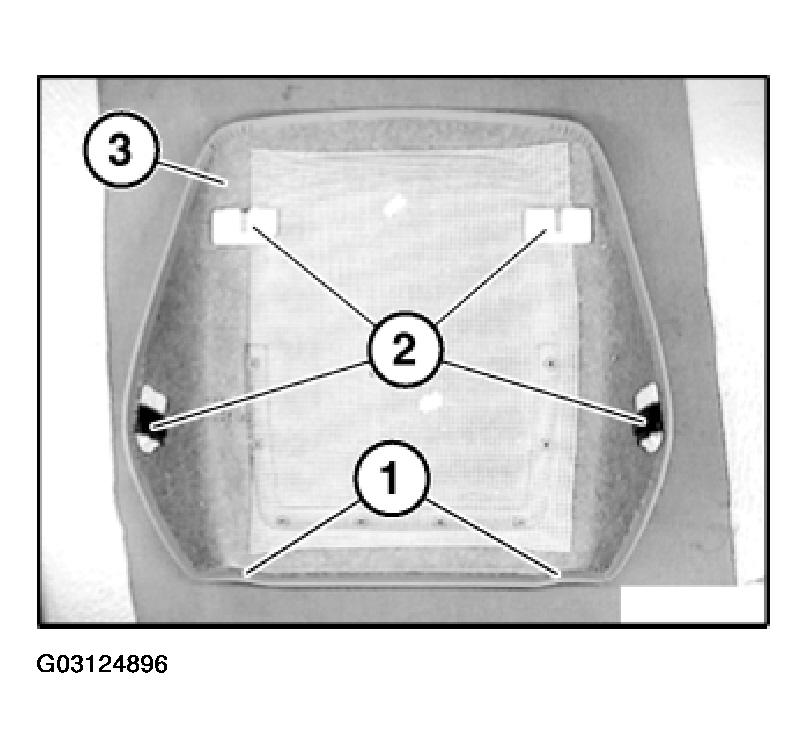

Fig 4: Installing Backrest Cover On Left/Right Over Clip Mount
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mounts (1) on backrest frame (2) must not be damaged.
To install rear panel, first slide into mounts (1) and then slide in at sides at bottom, refer to next work step.

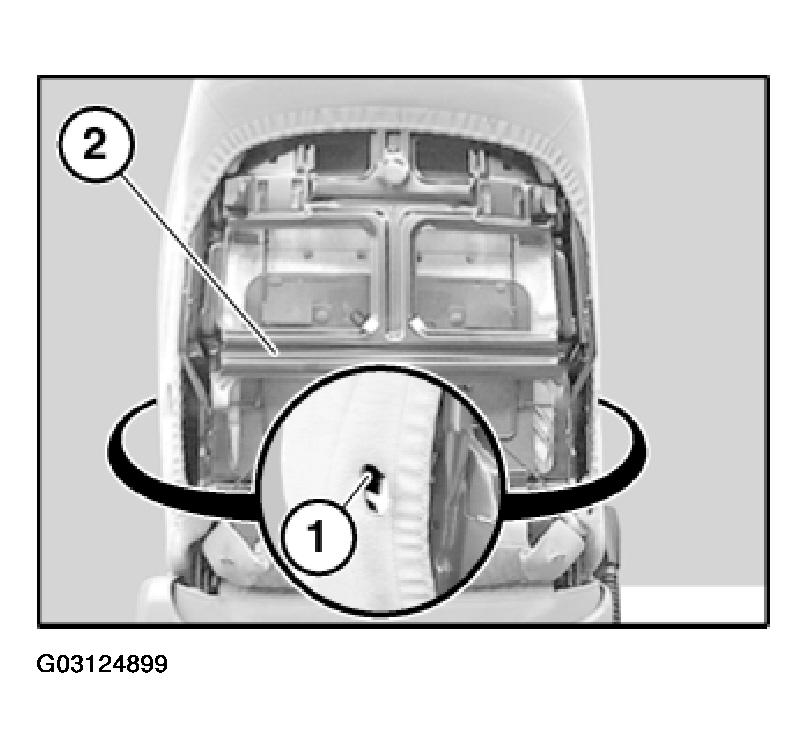

Fig 5: Identifying Mounts On Backrest Frame
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After installing rear panel in upper mounts, refer to previous work step:
Feed rear panel at sides into opening in backrest cover and insert into mounts (1) on left/right on backrest frame (2) and snap into place.

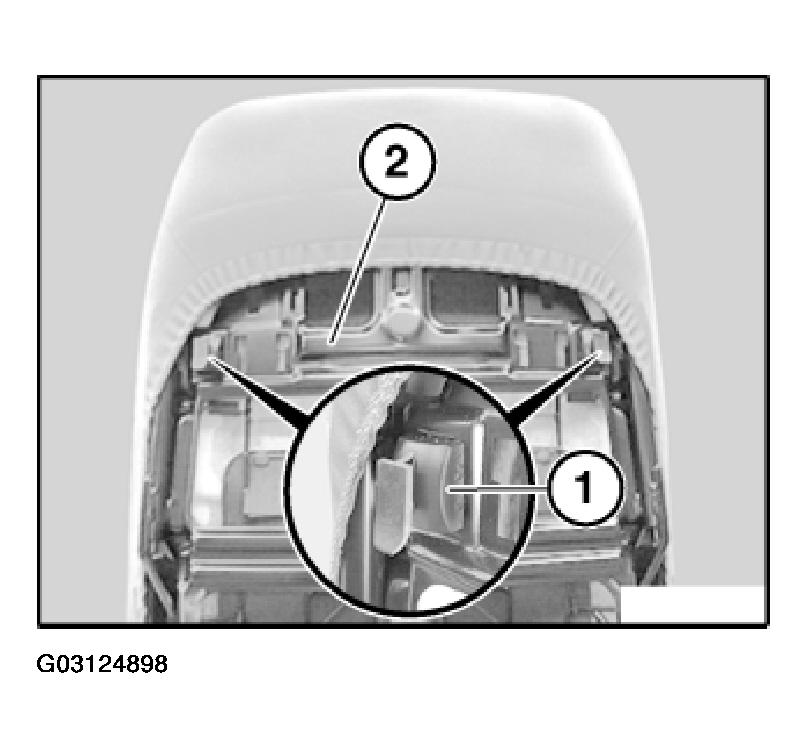

Fig 6: Inserting Mounts On Left/Right On Backrest Frame
Courtesy of BMW OF NORTH AMERICA, INC.
