52 16 095 Removing and installing/replacing thigh support holder on front left or right seat (sports/electric)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten thigh support and pull completely towards front.

Detaching cushion for thigh support:

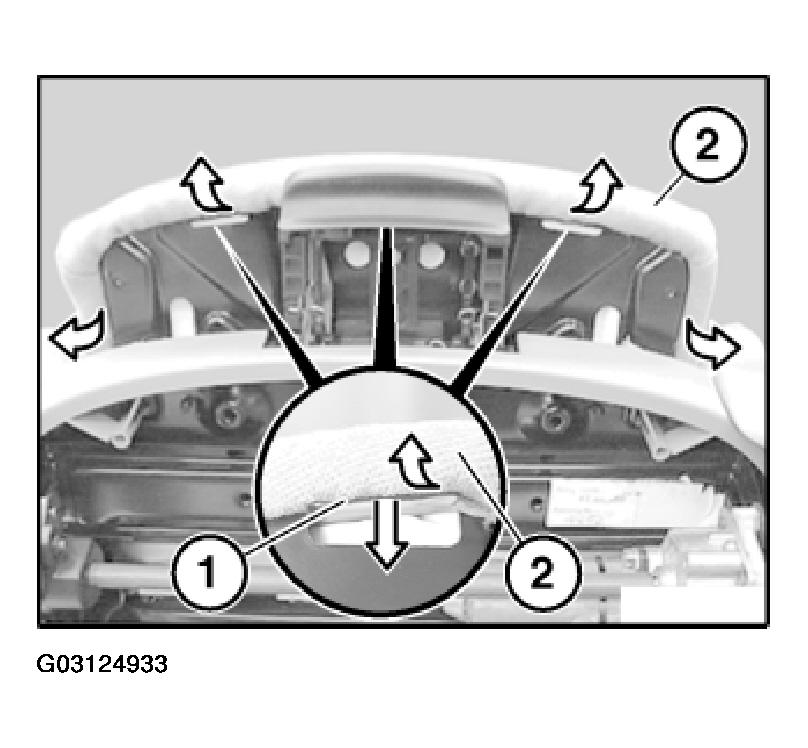

Bend open retaining plates (1) and remove cover piping (2).

Fig 1: Removing Cover Piping

Courtesy of BMW OF NORTH AMERICA, INC.

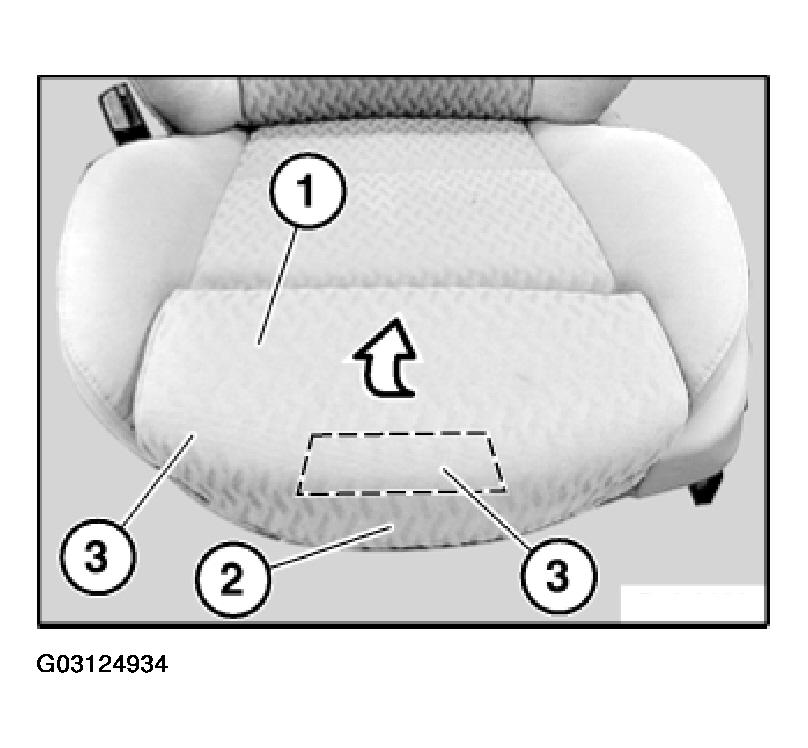

NOTE: Cushion (1) is attached at front with double-sided adhesive tape (3) to holder (2).

Pull cushion (1) towards top off holder (2).

Fig 2: Pulling Cushion Towards Top Off Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Lever trim wire (1) out of mounts (2).

Installation:

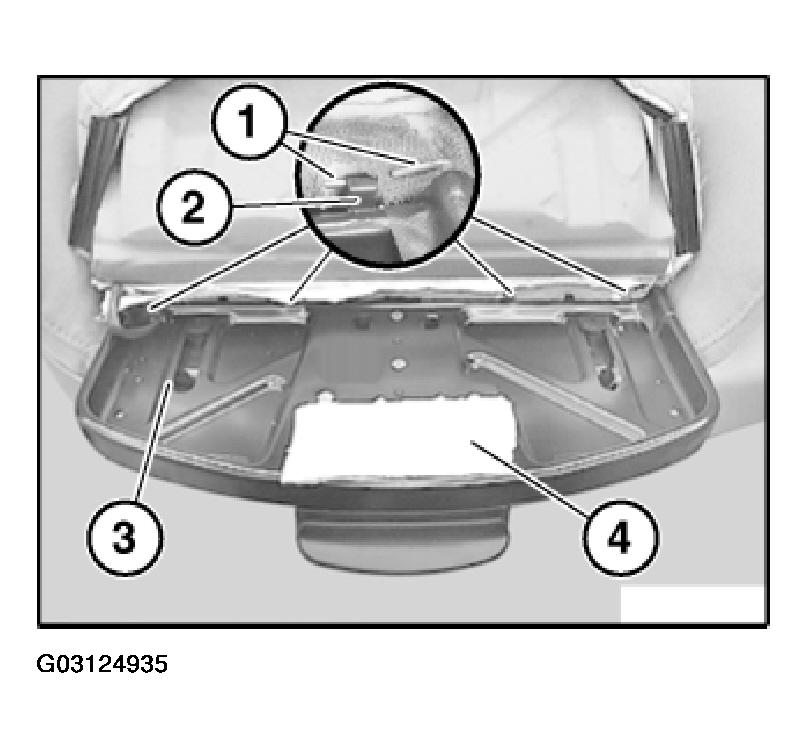

Stick new double-sided adhesive tape (4) to holder (3) or attach mount with spray adhesive.

Fig 3: Sticking New Double-Sided Adhesive Tape To Holder
Courtesy of BMW OF NORTH AMERICA, INC.

Removal of "Thigh support holder" only:

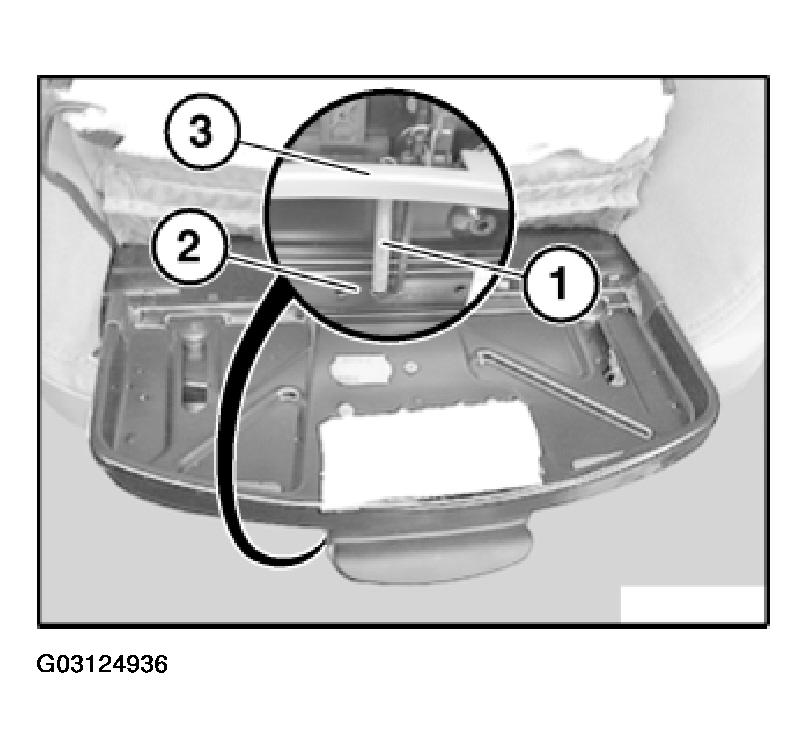

Unhook spring (1) at bottom from holder (2) and seat frame (3).

Fig 4: Unhooking Spring At Bottom From Holder & Seat Frame (3)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

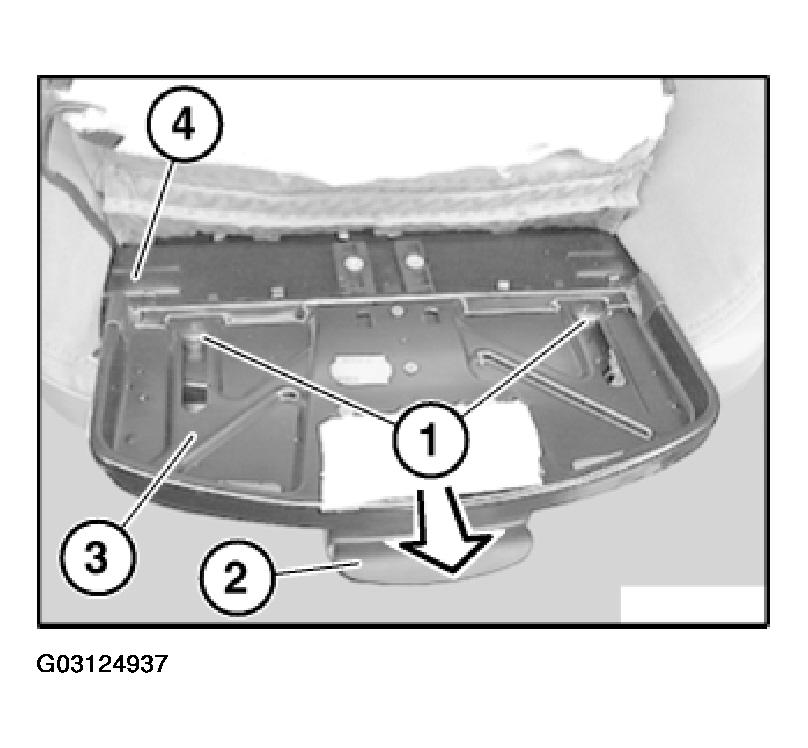

Press operating lever (2) fully and detach holder (3) for thigh support towards front from seat frame (4).

Fig 5: Detaching Holder For Thigh Support Towards Front From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

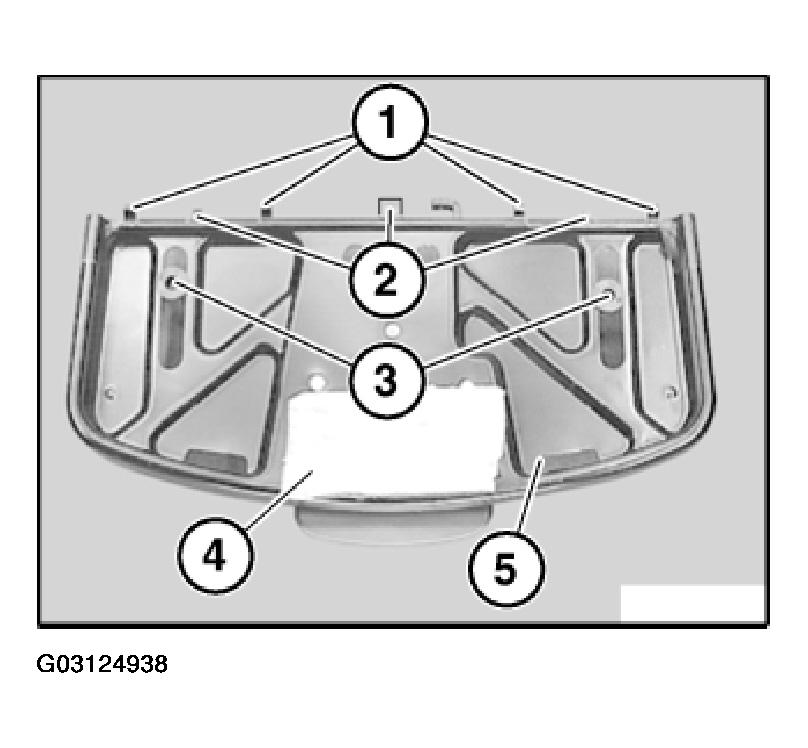

Following parts on holder (5) must not be damaged:

Mounts for trim wire
Holding-down elements for trim wire
Guide sleeves
Double-sided adhesive tape (replace or coat with spray adhesive for assembly)

Fig 6: Identifying Parts On Holder
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

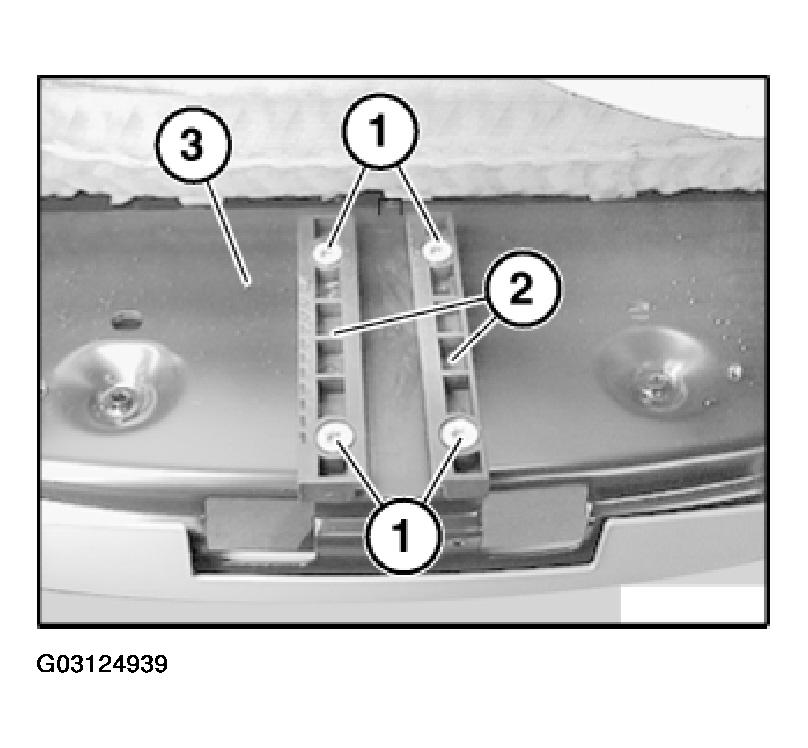

If necessary, release screws (1) and remove guide rails (2) from seat frame (3).

Fig 7: Identifying Guide Rail & Seat Frame
Courtesy of BMW OF NORTH AMERICA, INC.
