52 14 070 Removing and installing/replacing seat angle adjuster on left or right front seat (normal/electric)
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front seat. See 52 13 000 Removing and installing left or right front seat (normal/manual)
- Remove outer cover. See 52 16... Removing and installing/replacing carrier for outer cover on left or right front seat (sports/electric)

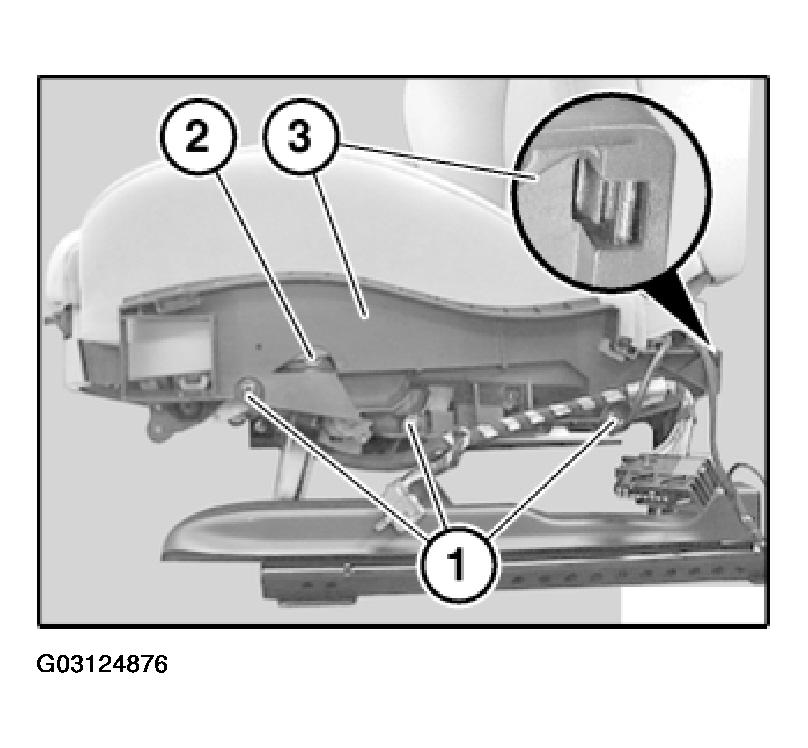

Release screws (1).
Release screw (2).
Unclip carrier (3) from seat mechanism at rear.

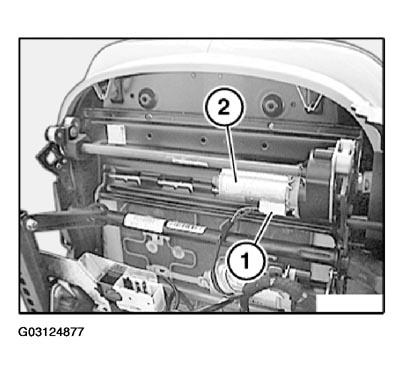

Unlock plug connection (1) on drive unit (2) and disconnect.

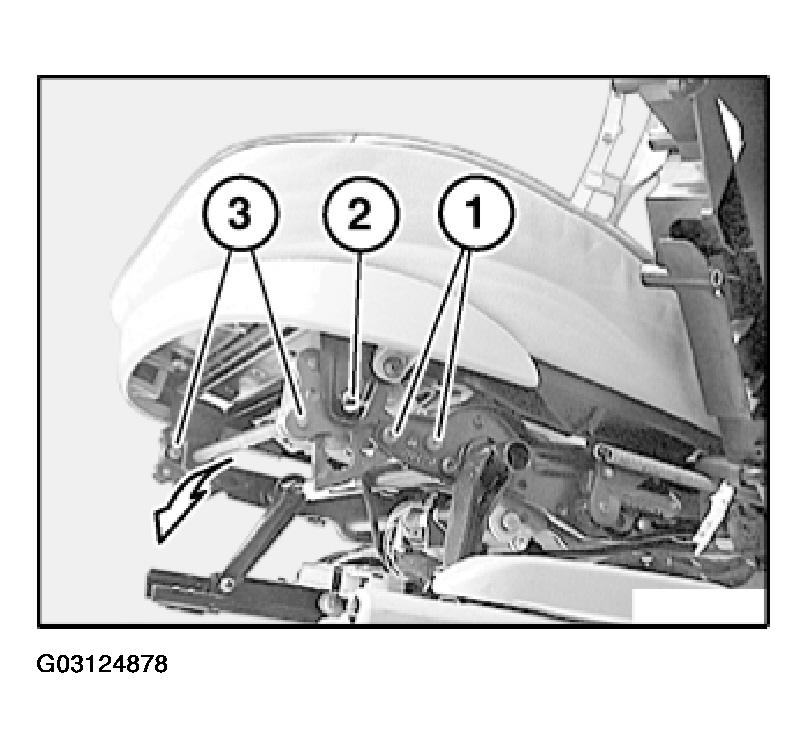

Release screws (1).
Installation:
Replace Taptite screws (1).
Tightening torque. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES .
Release screw (2).
Tightening torque. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES .
Remove seat angle adjuster (3).
Installation:
Slide left and right O-rings onto shaft. Make sure O-rings are correctly located between seat angle adjuster and seat pan.
