52 14 025 Removing and installing/replacing seat mechanism on left or right front seat (normal/electric)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 2 071
61 2 074

Carry out following tasks beforehand:

Remove seat pan and flexmat on front seat. See 52 16... Removing and installing/replacing seat pan and flex mat on front left or right seat (sports/electric)
Remove backrest frame on front seat. See 52 15 030 Removing and installing/replacing backrest frame on left or right front seat (sport/manual)
Remove seat belt tensioner. See REMOVAL & INSTALLATION SEAT BELT TENSIONERS

Release screw (1) and cable holder (3).

Remove retaining bracket (2) with seat wiring harness from seat mechanism (4).

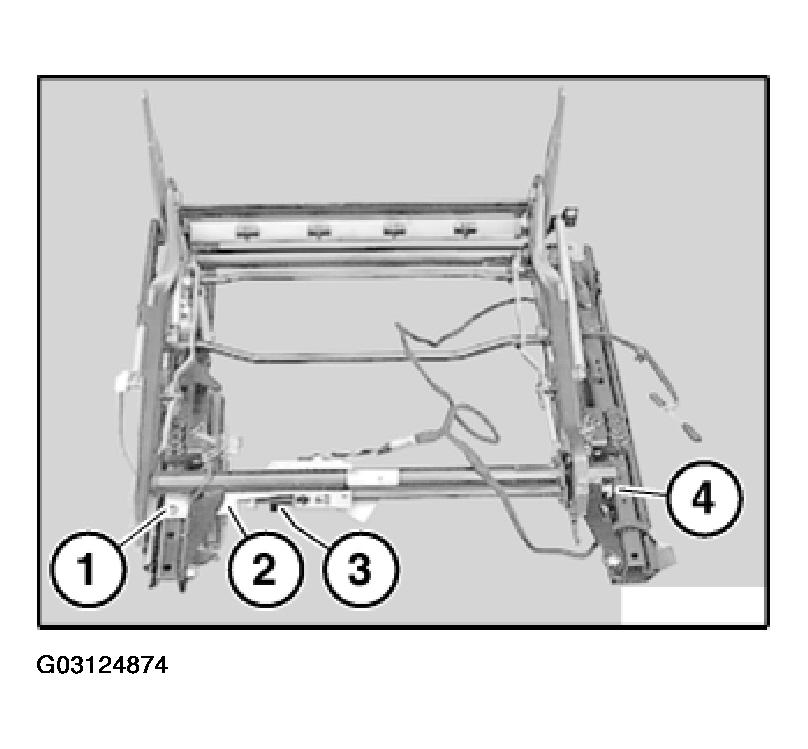

Fig 1: Removing Retaining Bracket With Seat Wiring Harness From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cable 61 2 074 to cable 61 2 071 and connect plug connection (1) to front seat.

Connect cable 61 2 071 to battery.

Check function.

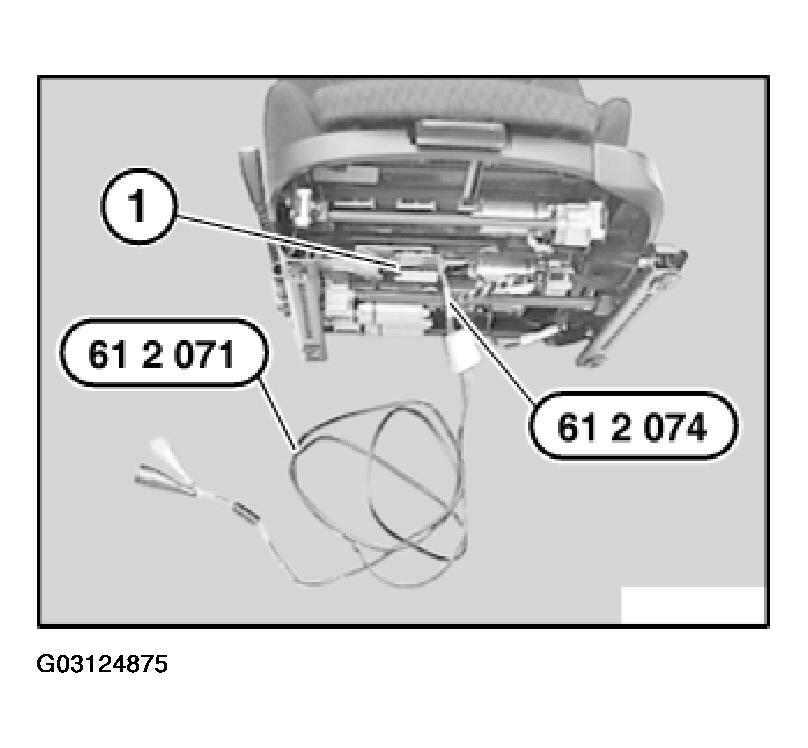

Fig 2: Attaching Cable 61 2 074 To Cable 61 2 071 & Connecting Plug Connection To Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.
