52 16... Removing and installing/replacing seat pan and flex mat on front left or right seat (sports/electric)

Remove seat cover with padding, refer to REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (SPORTS/ELECTRIC)  .

Release left screw (1) and slacken right screw only.

Release left/right screws (3).

Slacken left/right screws (4) only.

Lever out retaining plate (2) on left.

Installation:

1. Tightening Torque. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES .
   Fig 1: Removing Retaining Plate

   Courtesy of BMW OF NORTH AMERICA, INC.

Press seat pan (4) upwards, thereby relieving tension on flex mat.

Release screw (1) and remove support (2) from gear (3).

Installation:

1. Tightening Torque, refer to SEATS - TIGHTENING TORQUES - 3-SERIES .
   Fig 2: Pressing Seat Pan

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Using split-pin drift (1), lift support (2) onto guide (3).
   Fig 3: Installing Support Into Guide

   Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat occupancy detector:

If necessary, unhook control unit (1) and cable (3) from holders (2).

Fig 4: Unhooking Control Unit & Cable From Holders (Version With Seat Occupancy Detector)

Courtesy of BMW OF NORTH AMERICA, INC.

Turn seat pan (1) upwards.

Detach flexmat (2) at rear from mounts (3).

Fig 5: Turning Seat Pan Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Detach seat pan (1) on left/right backwards/top from mount (2) and remove.

Fig 6: Removing Seat Pan From Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Detach flexmat (1) from mounts (2) on seat pan (3).

Fig 7: Detaching Flexmat From Mounts On Seat Pan

Courtesy of BMW OF NORTH AMERICA, INC.

Removing thigh support from seat pan:

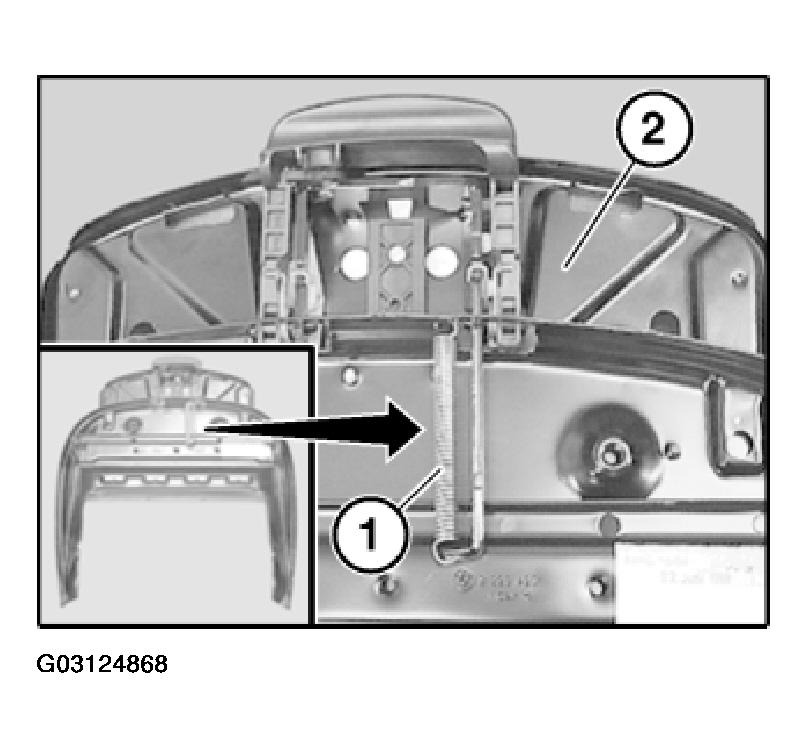

Unhook spring (1) from thigh support (2).

Fig 8: Unhooking Spring From Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove thigh support (2).

Fig 9: Removing Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

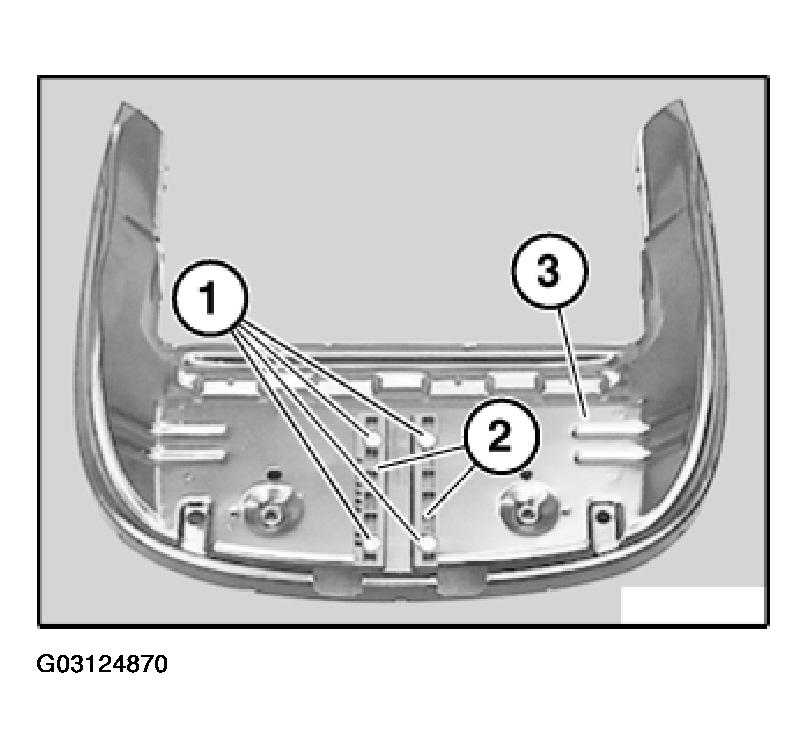

If necessary, release screws (1) and remove guide rails (2) from seat pan (3).

Fig 10: Removing Guide Rails From Seat Pan

Courtesy of BMW OF NORTH AMERICA, INC.
