52 13 400 Replacing seat cover on left or right front seat (normal/manual)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

WARNING: US/CND front passenger seat (with OC3 mat) only:
Seat cover must not be separated from padding.
All parts must be replaced completely and released with the diagnosis system in event of defective seat cover, seat heating, OC3 mat or padding.

Necessary preliminary tasks:

Remove inner cover. See 52 14 041 Removing and installing/replacing inner cover on front left or right seat (normal/electric)
Remove cover (normal/electric) or outer actuating unit. See 52 16... Removing and installing/replacing carrier for outer cover on left or right front seat (sports/electric)

Seat with electric actuating unit only:

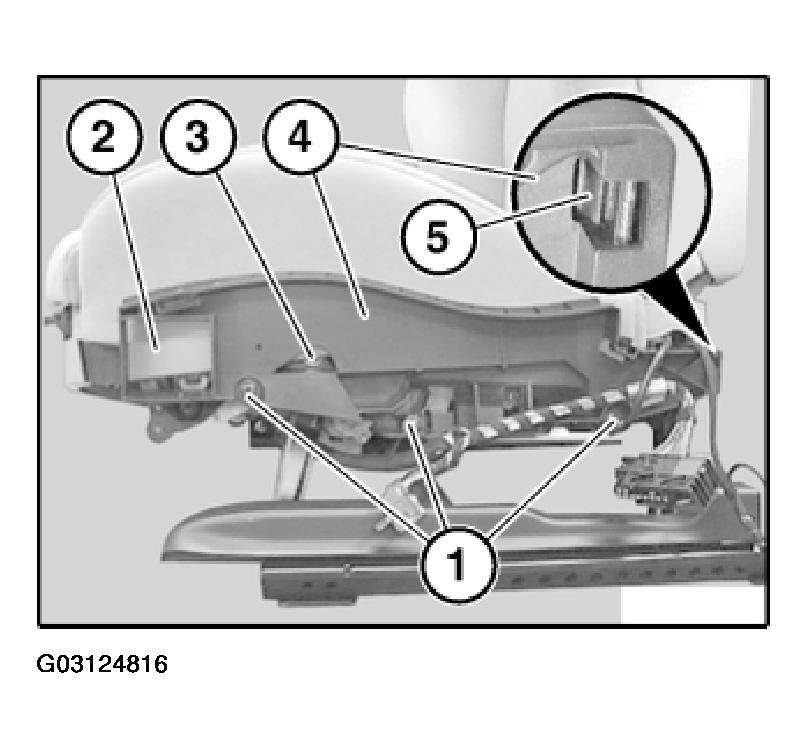

Release screws (1).

Pull trim (2) out a little and release screw (3).

Release clip (5) from carrier (4).

Remove trim (2) and carrier (4).

Fig 1: Replacing Seat Cover On Left Or Right Front Seat (Normal/Manual)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

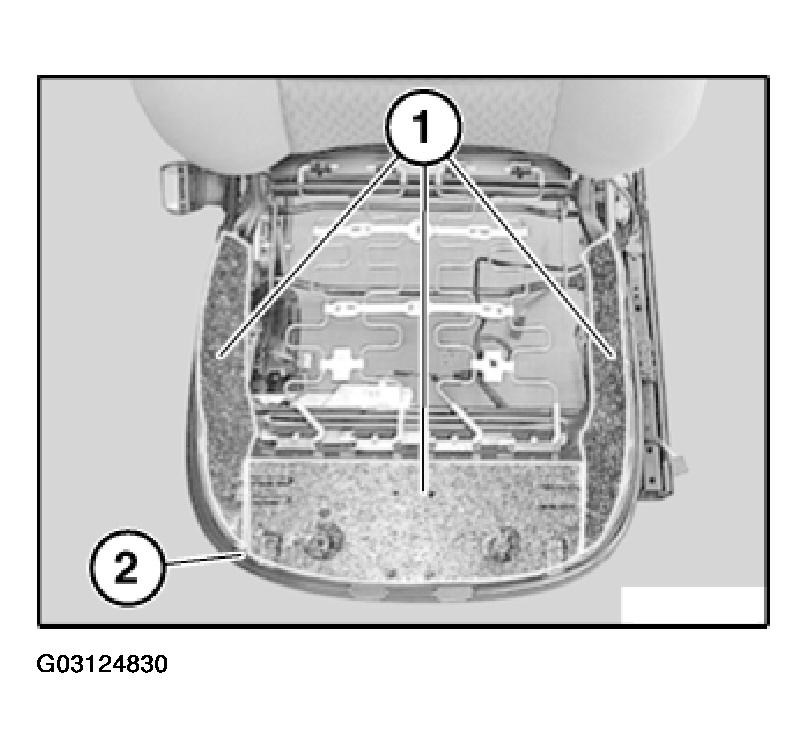

Cable holders (1) on carrier (2) must not be damaged.

Fig 2: Identifying Cable Holders On Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

E46 only:

Pull out tongue (1) on seat cover (2) on left/right.

Fig 3: Pulling Out Tongue On Seat Cover On Left/Right (E46 Only)

Courtesy of BMW OF NORTH AMERICA, INC.

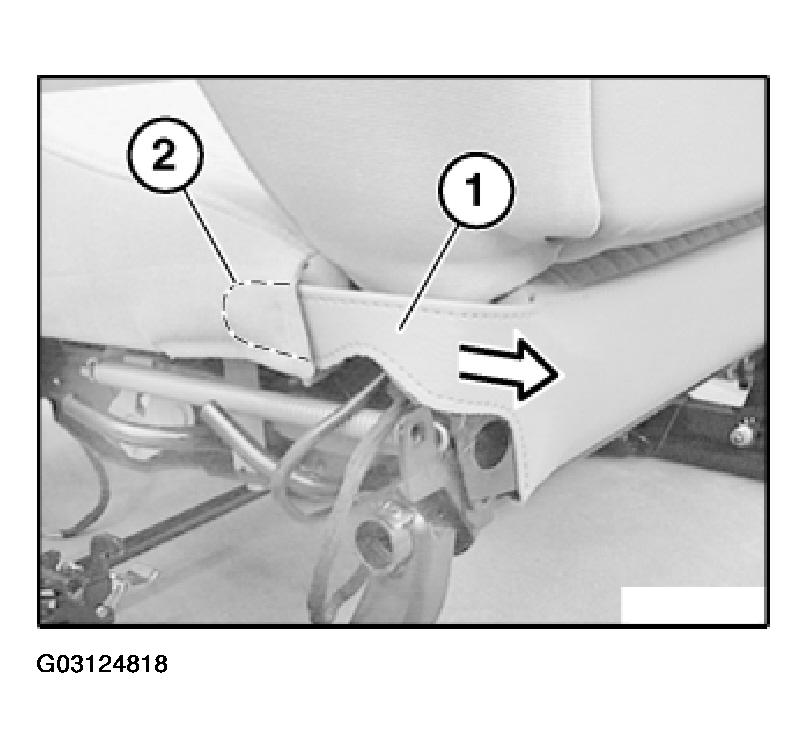

Detach seat cover (1) from seat frame (2).

Fig 4: Detaching Seat Cover From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat occupancy detector:

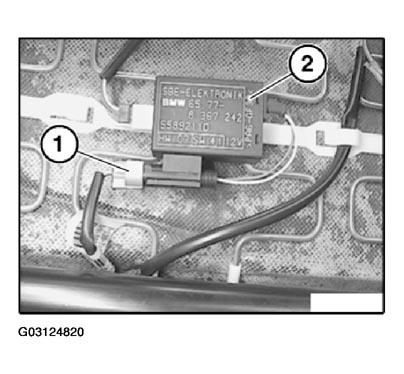

If necessary, disconnect plug connection (1) from control unit (2).

Fig 5: Disconnecting Plug Connection From Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

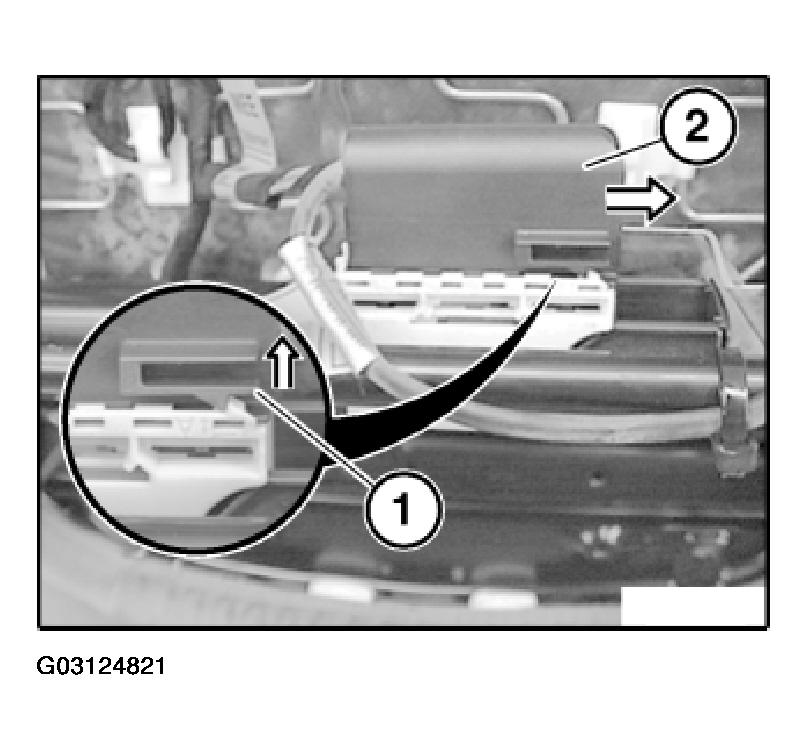

If necessary, lever catch (1) towards top and detach cover (2).

Fig 6: Detaching Cover (Version With Seat Heating)

Courtesy of BMW OF NORTH AMERICA, INC.

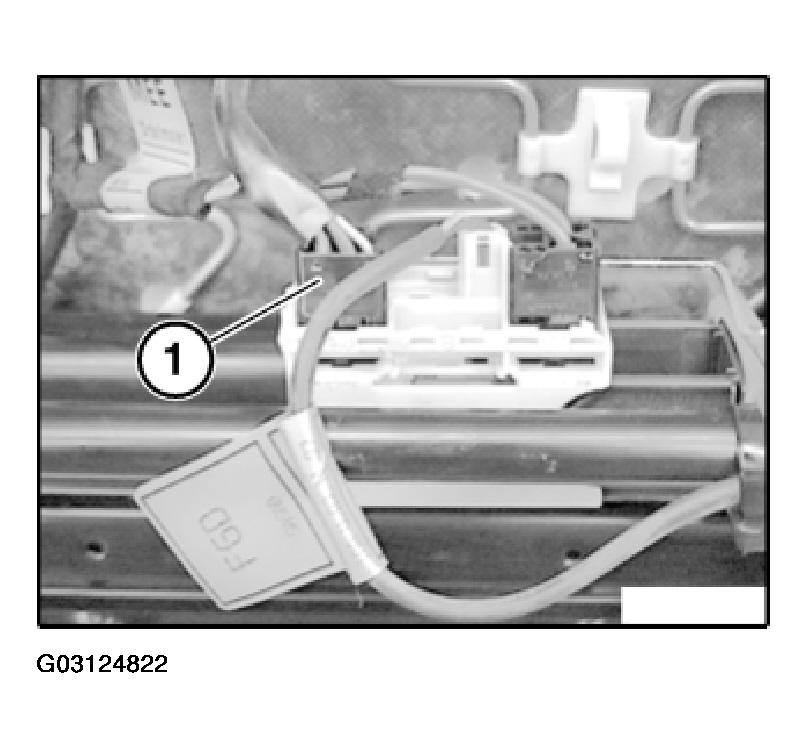

Disconnect plug connection (1) from seat heating.

Fig 7: Disconnecting Plug Connection From Seat Heating

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from seat heating. Expose cable (2).

Fig 8: Identifying Plug Connection & Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainers (1) on left/right.

Pull out cover tabs (2) on left/right.

Fig 9: Pulling Out Cover Tabs On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

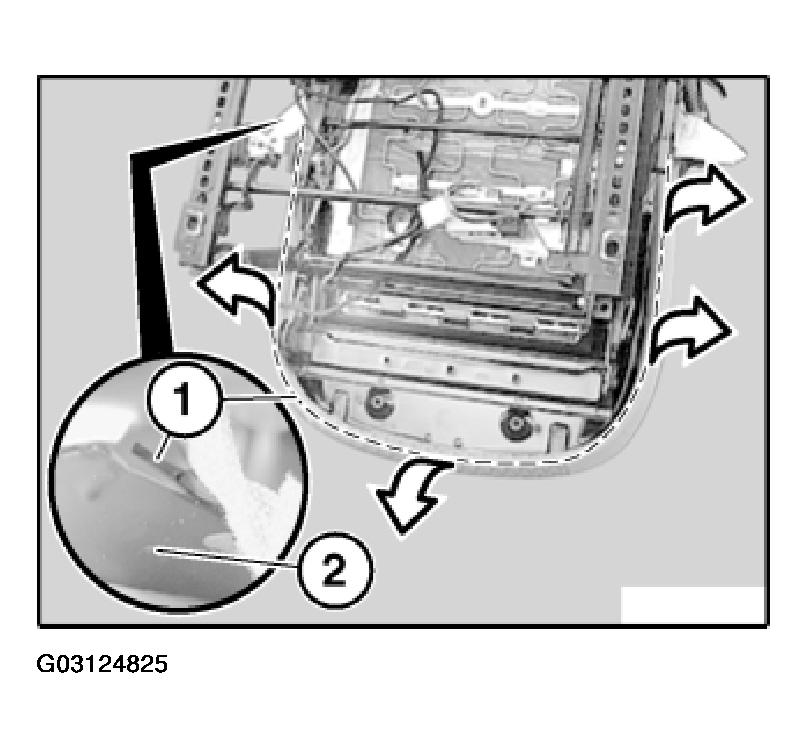

Pull out cover welt (1) completely from seat frame (2).

Fig 10: Pulling Out Cover Welt Completely From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

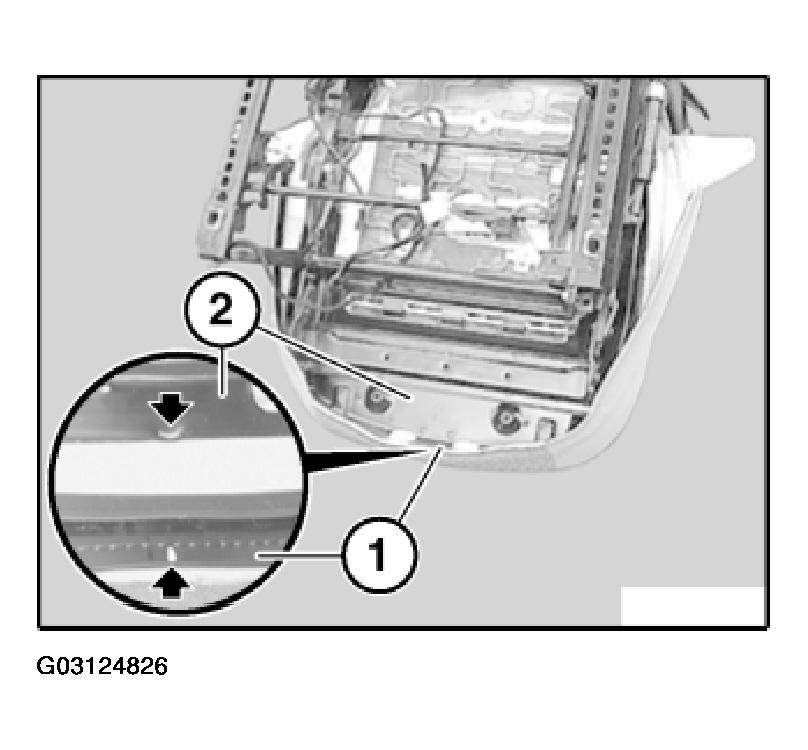

Begin assembly in middle.

Cover piping (1) and seat frame (2) have markings for middle position.

Fig 11: Installing Cover & Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

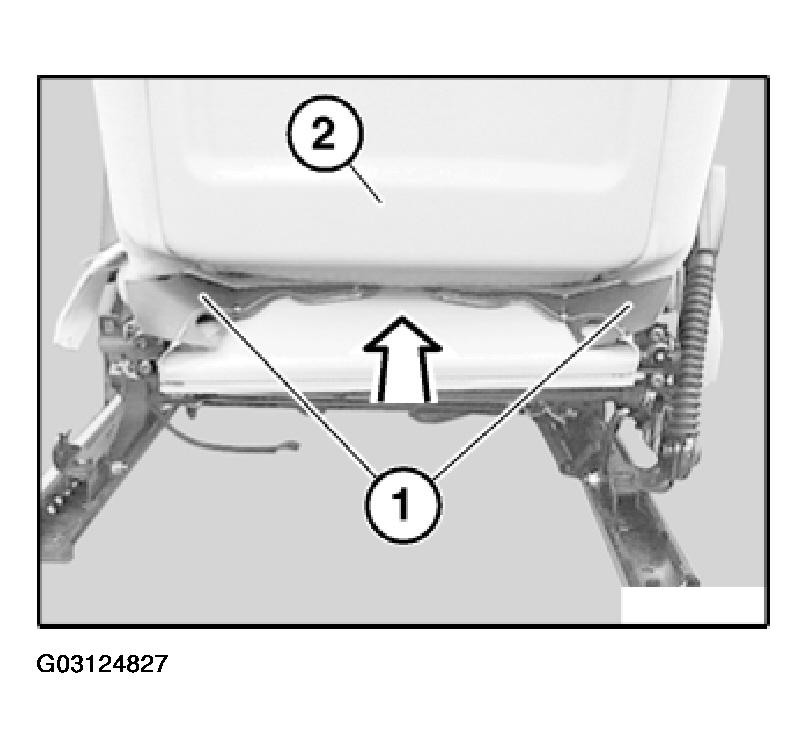

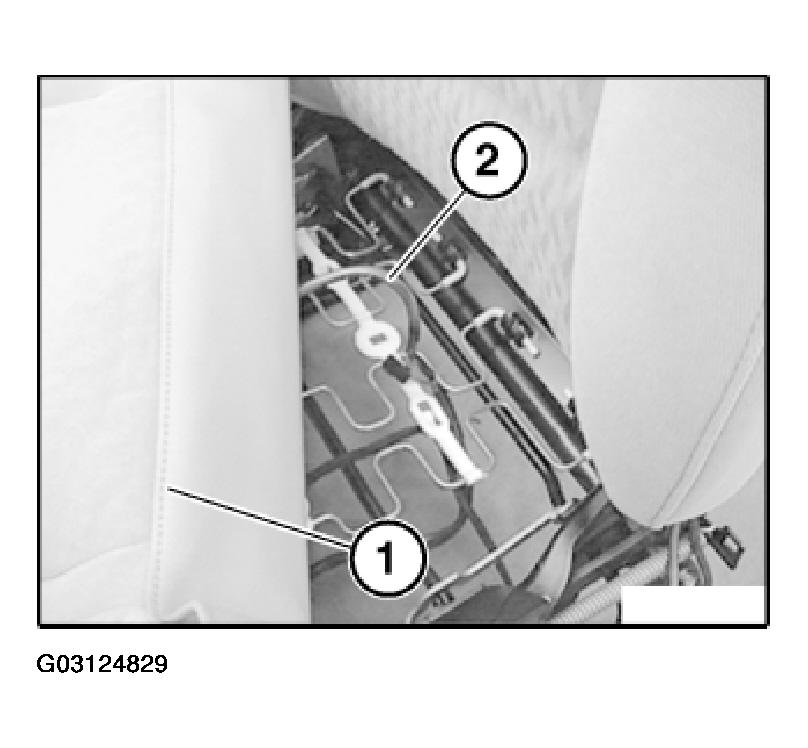

Fold in tongues (1) on seat cover and push through under backrest (2) towards front.

Fig 12: Folding In Tongues On Seat Cover & Pushing Through Under Backrest Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Model without seat heating and without seat occupancy detector:

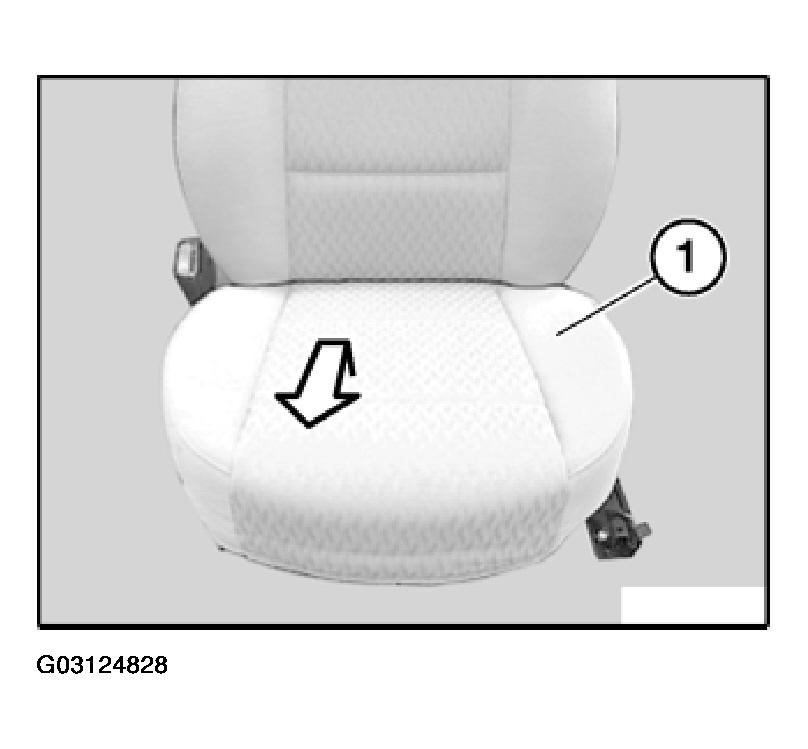

Remove seat cover (1) towards front/top.

Fig 13: Removing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heater and/or with seat occupancy detector:

Pull seat cover (1) forward a little and feed cable (2) out. Remove seat cover (1) towards front/top.

Fig 14: Removing Cable (Version With Seat Heater &/Or With Seat Occupancy Detector)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

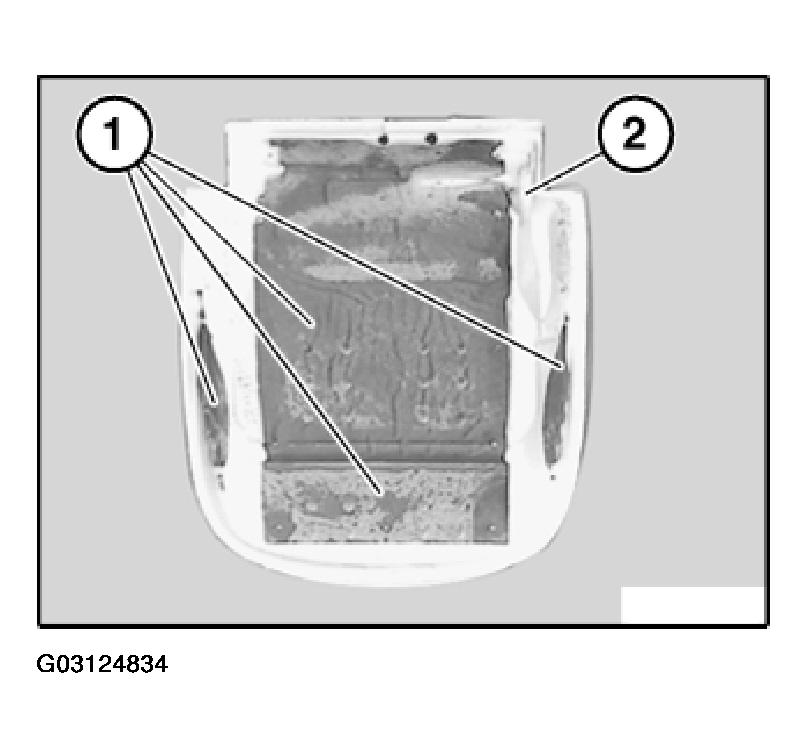

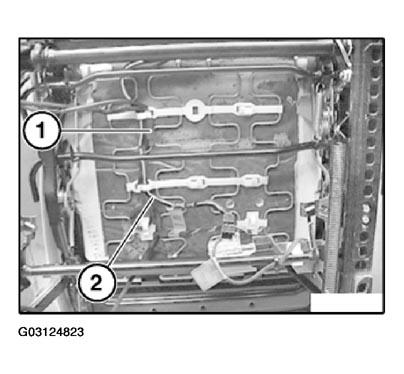

The support is coated with wax to prevent grinding noises.

Do not remove wax (1) on seat pan (2).

Fig 15: Identifying Wax On Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

US/CND front passenger seat (with OC3 mat) only:

New seat cover must be completely installed with padding, seat heating and OC3 mat.

Release seat occupancy detector:

Connect diagnosis system
Release seat occupancy detector
Clear fault memory if necessary

Replacing support:

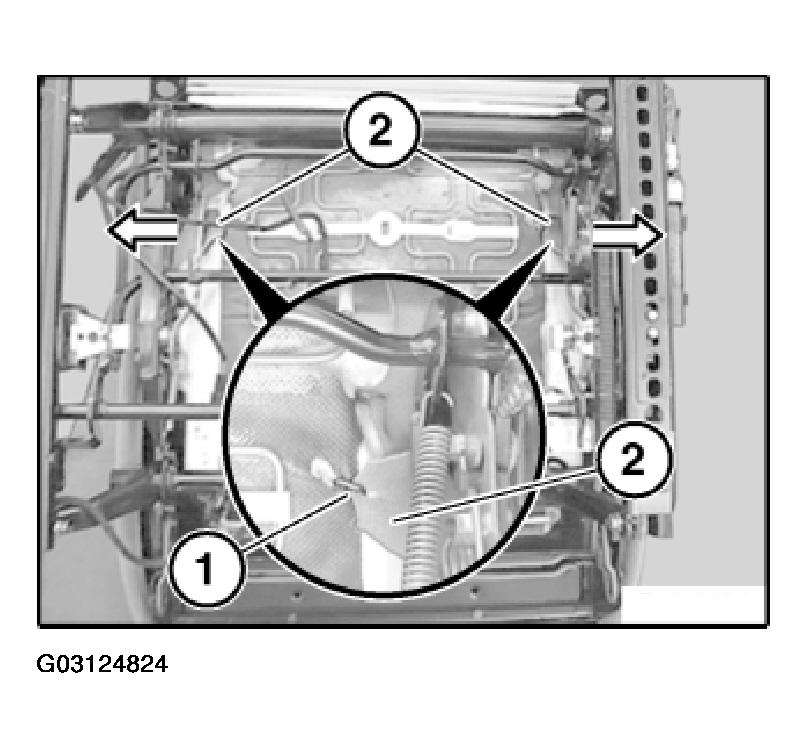

Detach retainers (1) at rear left/right from support (2).

Fig 16: Detaching Retainers At Rear Left/Right From Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release all retainers.

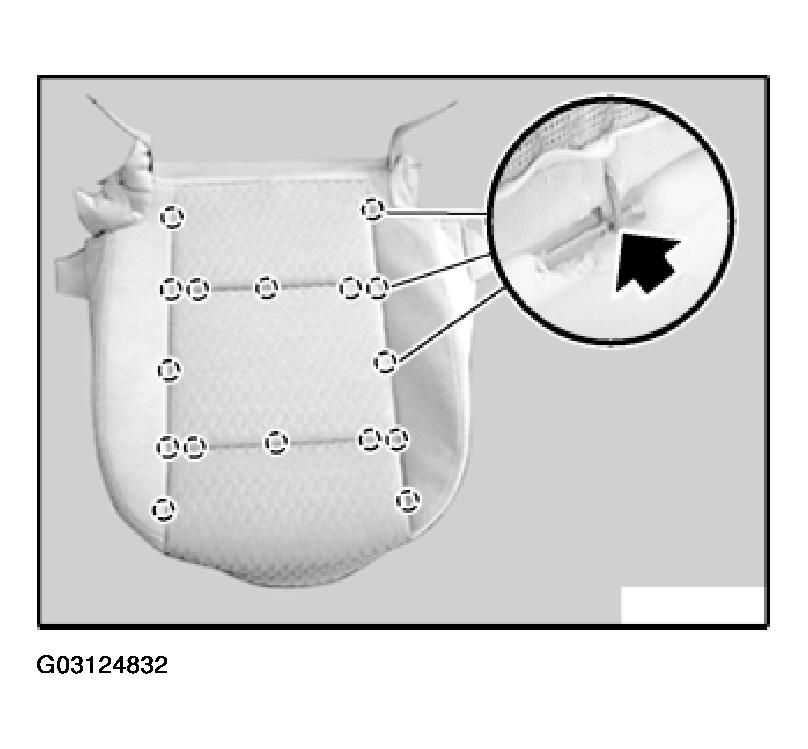

Remove seat cover from support (foam rubber section).

Remove all remnants of clips from seat cover and support.

Fig 17: Removing All Remnants Of Clips From Seat Cover & Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

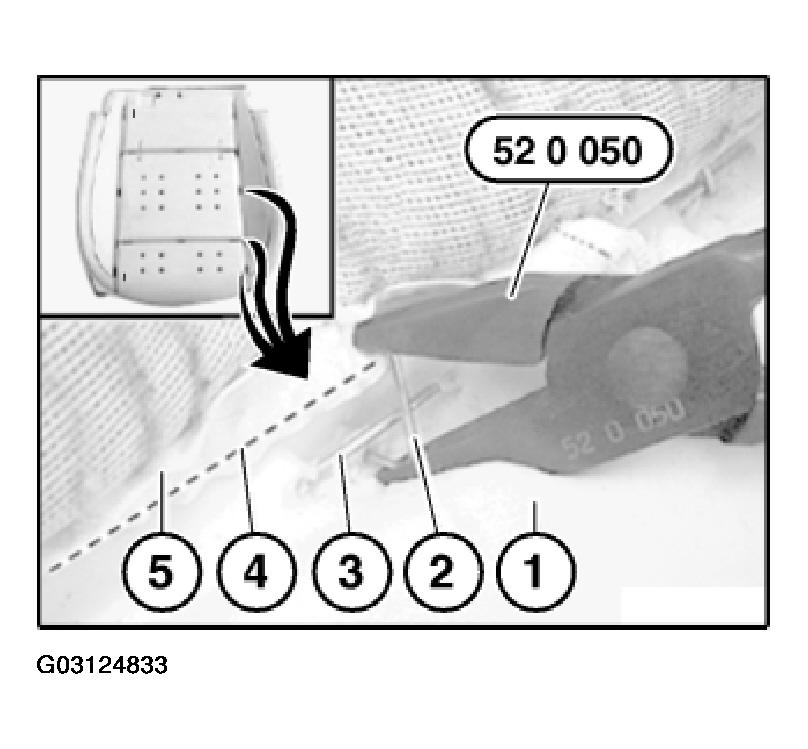

Bend new clips (2) with special tool 52 0 050.

Support
Retainer
Trim thread in support
Trim thread in cover
Seat cover

Fig 18: Bending New Clips With Special Tool 52 0 050
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The support is coated with wax to prevent grinding noises.

Do not remove wax (1) on support (2).

Fig 19: Identifying Wax On Support

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger seat only (replacing support):

Installation:

Make sure foam is not extensively damaged (malfunction of passenger seat occupancy detector).

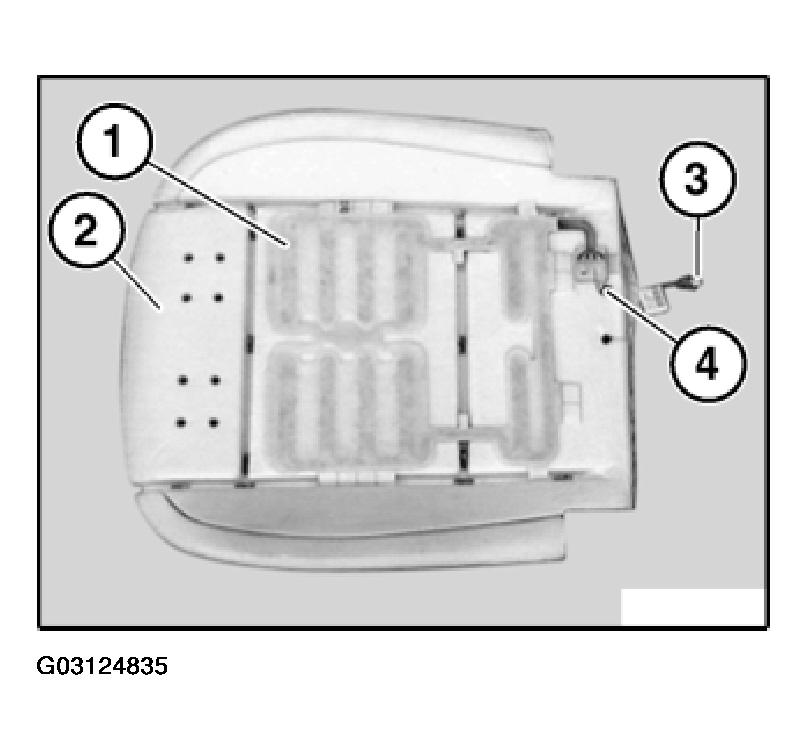

Fit new sensor mat (1) for passenger seat occupancy detector.

Align new sensor mat (1) on foam (2).

Feed plug (3) through bore hole (4).

Fig 20: Identifying Sensor Mat

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger seat only (replacing sensor mat):

Passenger seat only (replacing support):

Installation:

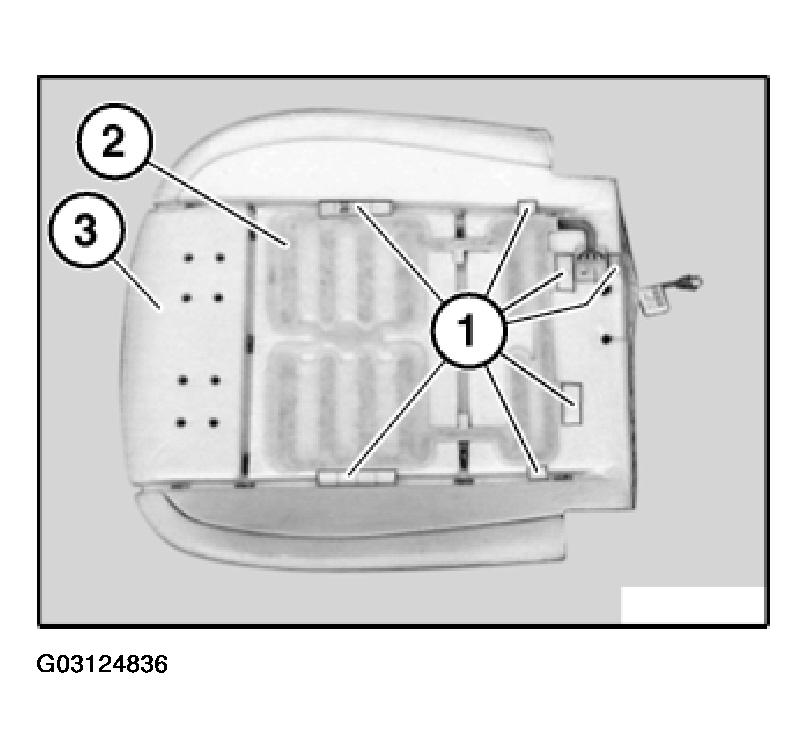

Detach liner (1) at individual points and stick sensor mat (2) onto foam (3).

Fig 21: Installing Sensor Mat Onto Seat Foam
Courtesy of BMW OF NORTH AMERICA, INC.

Passenger seat only (replacing sensor mat):

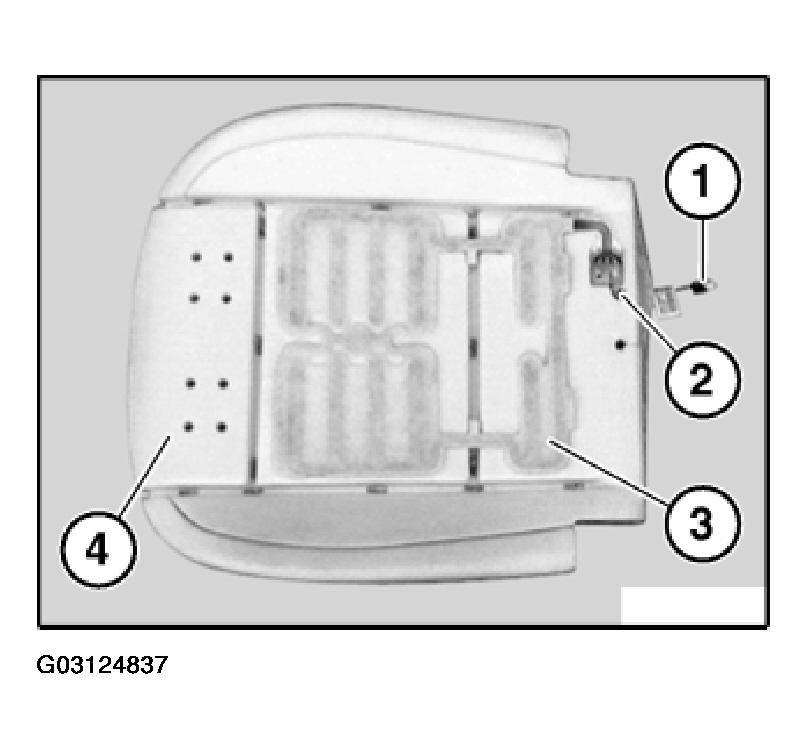

Pull plug (1) out of bore hole (2).

Make sure foam is not extensively damaged (malfunction of passenger seat occupancy detector).

Carefully remove sensor mat (3) from support (4).

Fig 22: Removing Sensor Mat (Passenger Seat Only)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing seat cover:

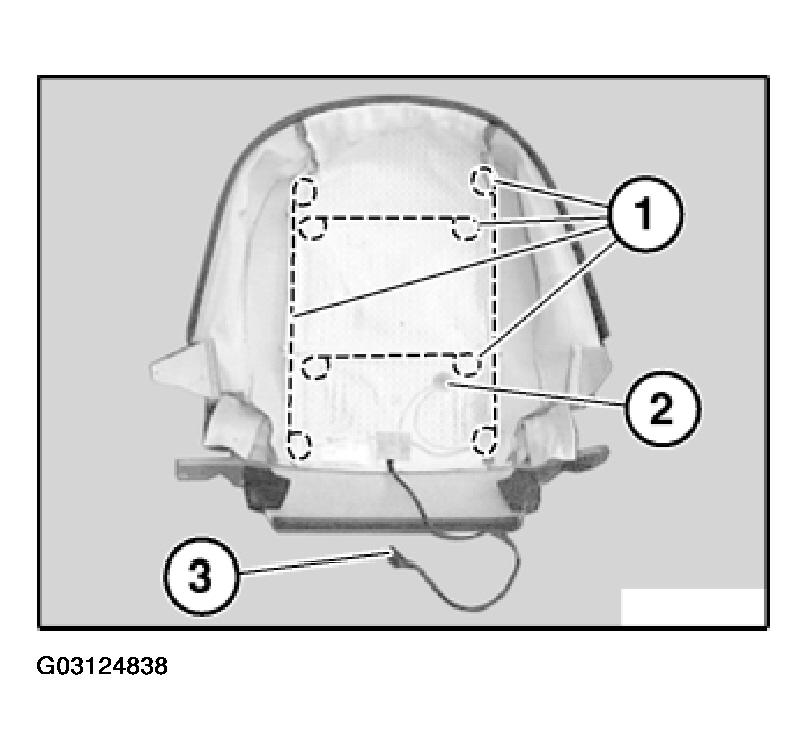

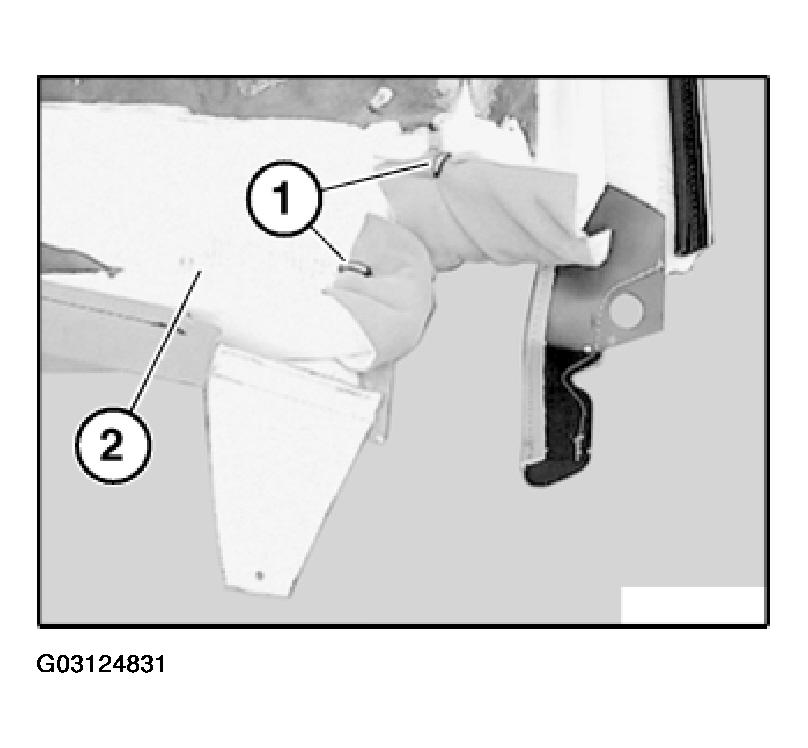

Remove trim threads (1) from seat cover (2).

Cut new seat cover (2) to size and insert trim threads (1).

Cable (3) for seat heating.

Fig 23: Removing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.
