52 13 040 Removing and installing / replacing outer cover on left or right front seat back-rest (normal / manual)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

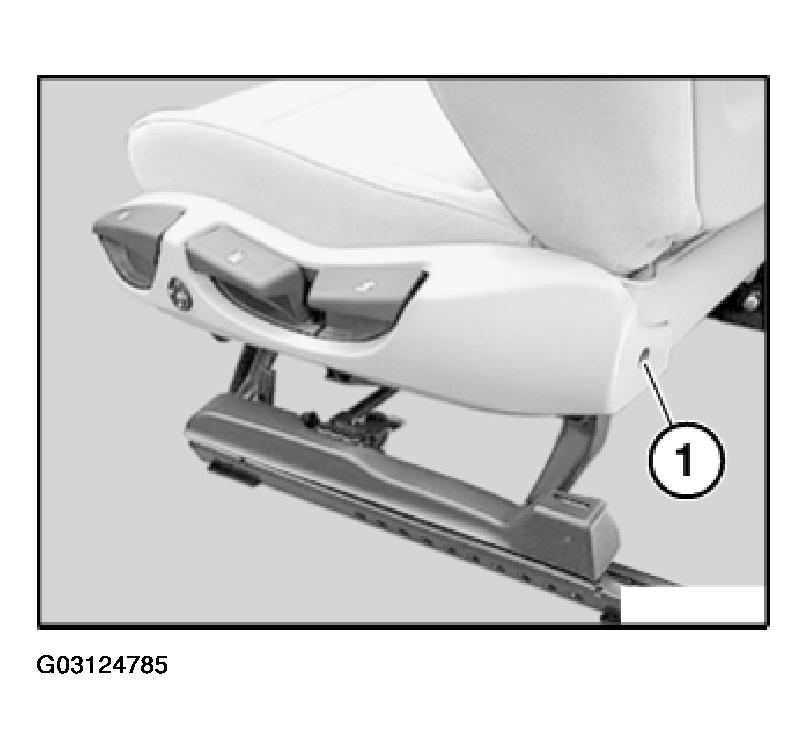

Unscrew bolt(1).

Fig 1: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

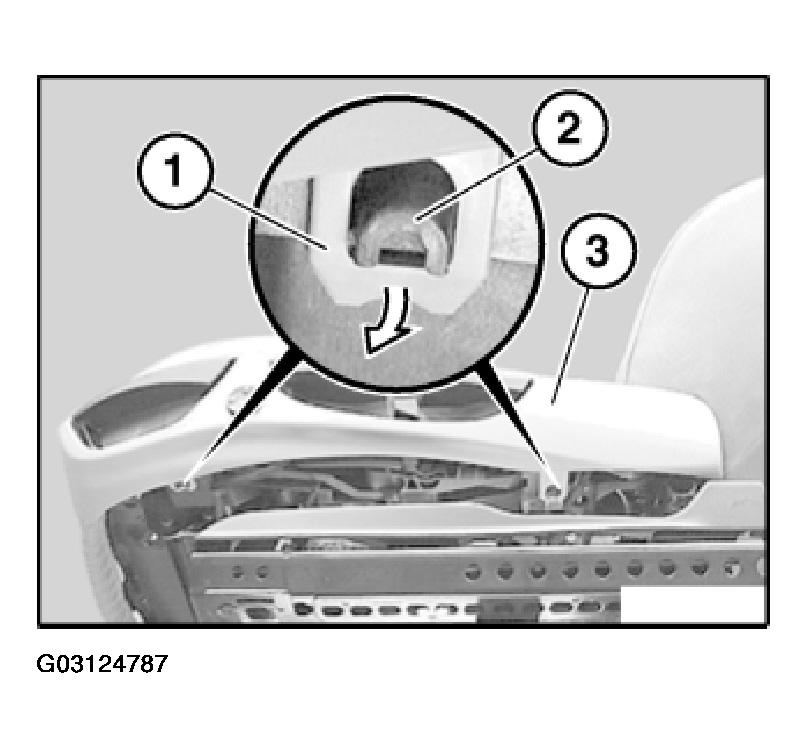

Snap out catches (1) at front/rear and tongue (2) at rear from cover (3) towards top and pull outwards a little.

Installation:

Slide tongue (2) into mounts and snap into place.

Fig 2: Snapping Out Catches At Front/Rear & Tongue At Rear From Cover Towards Top
Courtesy of BMW OF NORTH AMERICA, INC.

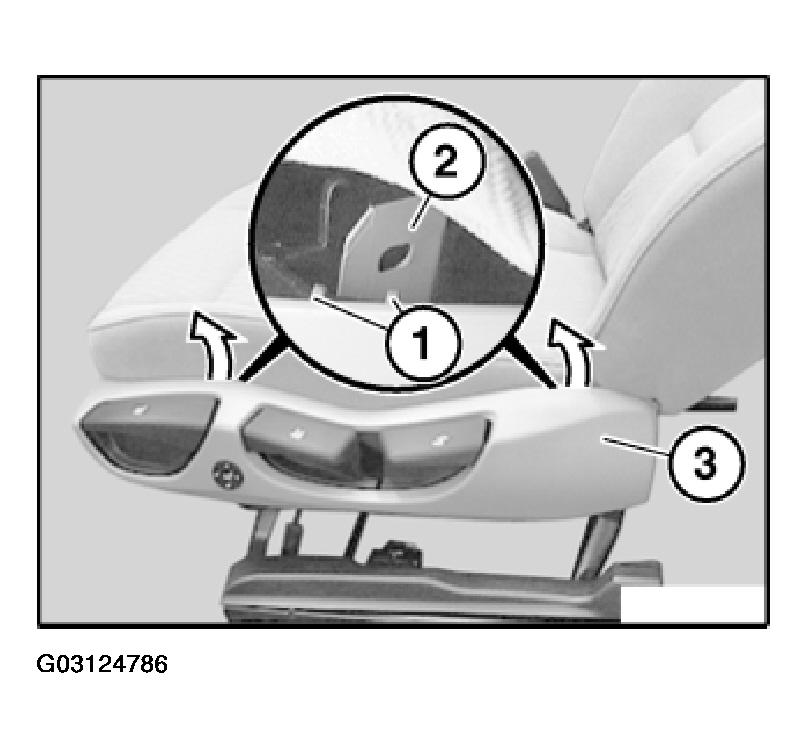

Lever lugs (1) on cover (3) out of brackets (2).

Fig 3: Levering Lugs On Cover Out Of Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

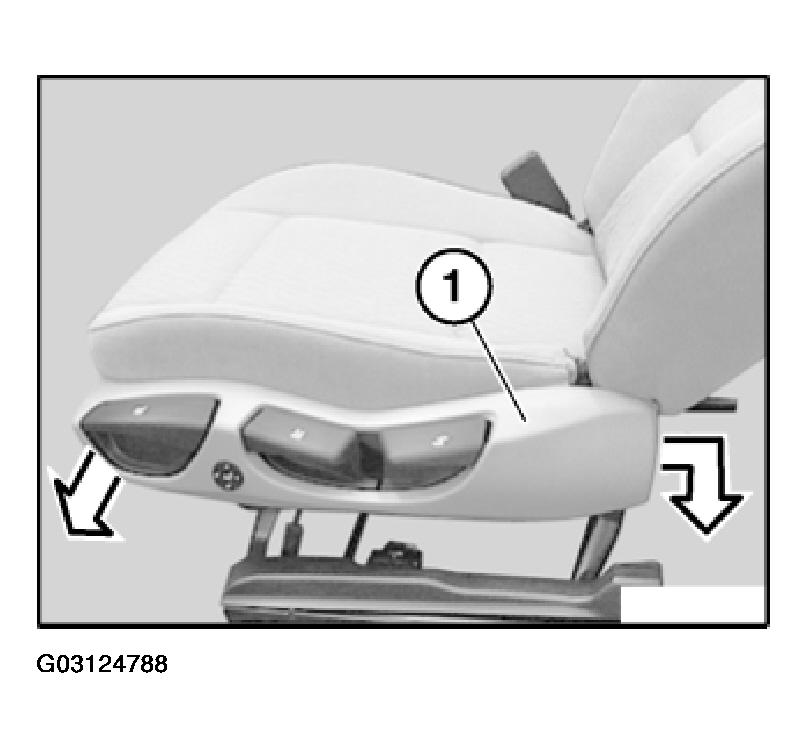

Lever out cover (1) at rear, detach at front from guide and remove.

Fig 4: Removing Cover At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

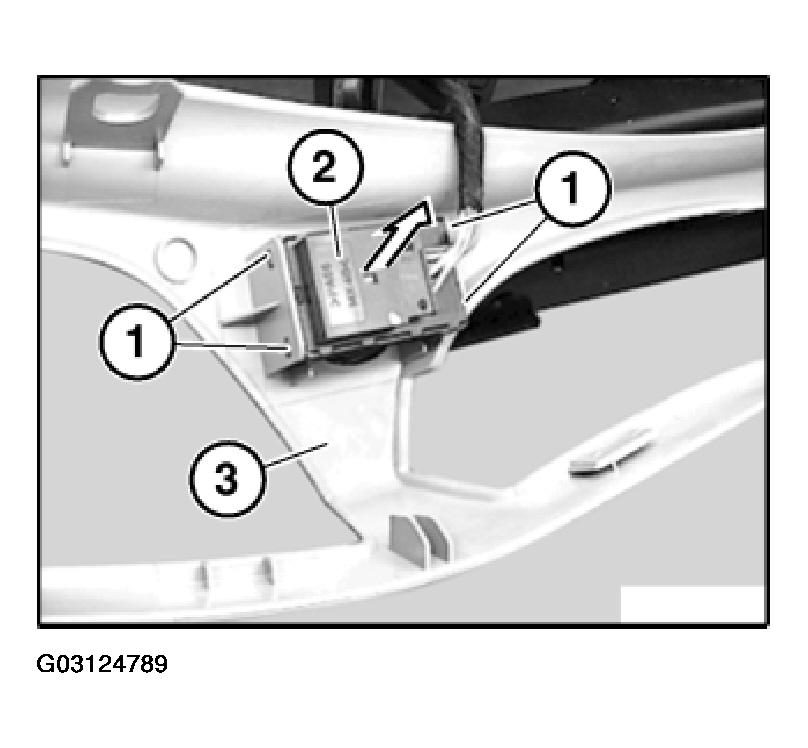

If necessary, press down catches (1) on left/right and remove switch (2) from cover (3).

Fig 5: Removing Switch From Cover (Model With Lumbar Supports)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

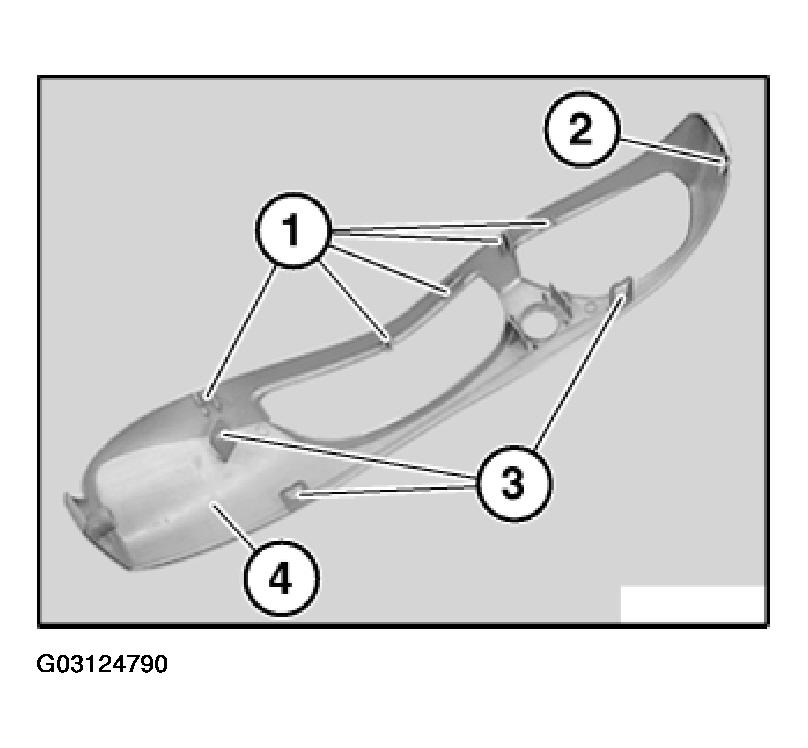

Following parts must not be damaged, replace cover (4) if necessary:

Catches, top
Guide, front
Lugs, bottom

Fig 6: Identifying Cover, Catches Top, Guide Front & Lugs Bottom
Courtesy of BMW OF NORTH AMERICA, INC.
