Checking camshaft timing (S55 engine)

Special tools required:

11 0 300
11 4 281
11 4 282
11 4 285
11 9 340
00 9 250
11 4 284

IMPORTANT: When the engine is shut down, the intake and exhaust camshaft adjusters are normally locked in their initial setting. In order to avoid incorrect timing adjustment, it is essential to check the locking of the camshaft adjuster and if necessary perform locking by rotating the camshafts.

Necessary preliminary work:

Remove CYLINDER HEAD COVER .
Remove INTAKE PLENUM .

Remove fastener (1) in direction of arrow.

Installation note:

Install fastener (1) with bore facing outwards.

Courtesy of BMW OF NORTH AMERICA, INC.

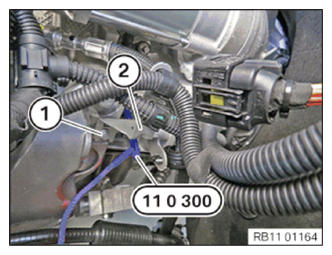

Release screw (1) and press the cable clip (2) to one side.

Rotate crankshaft at central bolt into TDC setting.

Slide in special tool 11 0 300 into dowel hole and secure crankshaft.

IMPORTANT: If the flywheel is secured in the correct dowel hole with special tool 11 0 300, the engine can no longer be moved at the central bolt.

Courtesy of BMW OF NORTH AMERICA, INC.

Release chain tensioner (1).

Tightening torque 11 31 7AZ .

IMPORTANT: Have a cleaning cloth ready. A small quantity of engine oil will escape after the screw connection has been released.
Make sure no engine oil runs onto belt drive.

Installation note:

Replace sealing ring.

Courtesy of BMW OF NORTH AMERICA, INC.

Install special tool 11 9 340 at position of chain tensioner.

Pretension timing chain with special tool 11 9 340 00 9 250 0.6 Nm

Illustration shows N52

Courtesy of BMW OF NORTH AMERICA, INC.

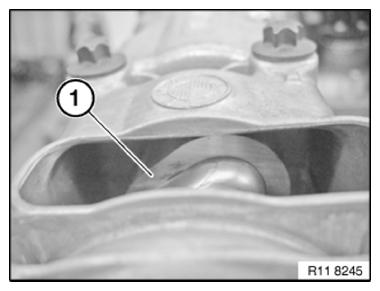

With 1st cylinder in TDC firing position, cams of intake camshaft (1) point upward at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.

With 1st cylinder in TDC firing position, cams of the exhaust camshaft (1) point upwards at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.

The timings are correct when part numbers or read code (1) on intake and exhaust camshafts point towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 4 285 with screws 11 4 284 to cylinder head.

Place special tool 11 4 281 on intake camshaft.

Place special tool 11 4 281 on exhaust camshaft.

Courtesy of BMW OF NORTH AMERICA, INC.

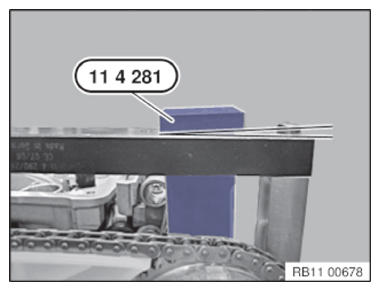

The exhaust camshaft timing is correct when special tool 11 4 281 is slightly in contact to intake side.

Courtesy of BMW OF NORTH AMERICA, INC.

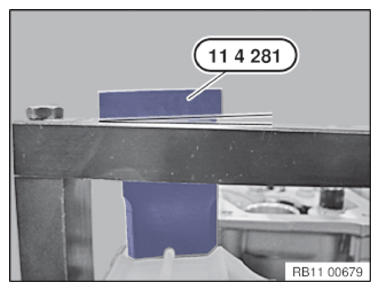

The intake camshaft timing is correct when special tool 11 4 281 is slightly in contact to intake side.

Courtesy of BMW OF NORTH AMERICA, INC.

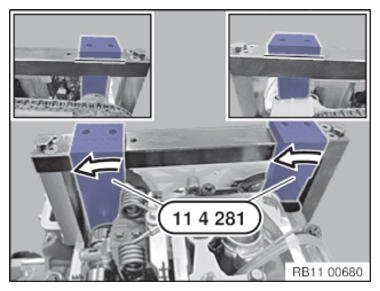

Twist special tools 11 4 281 by hand in direction of arrow up to limit position.

Both gauges must lie flat on special tool 11 4 285.

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, adjust VALVE TIMING .

Assemble engine.
