Removing and installing all ignition coils and injector wells (S55 engine)

Necessary preliminary work:

• Remove CYLINDER HEAD COVER .
• Remove ALL INJECTORS .

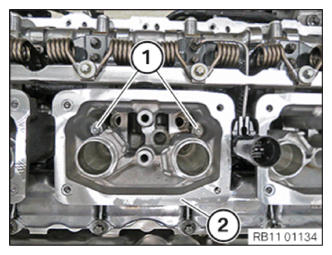

Release screws (1).

Tightening torque: 11 12 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Check fitting bushes (1) for damage.

Installation note:

Replace gasket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
