23... Universal BMW transmission support

Special tools required:

NOTE:
  • The universal transmission bracket is introduced for the E60 AWD
  • Suitable for manual and automatic transmissions

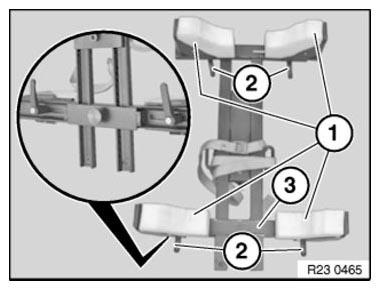

IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).

Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.

Supports must be adapted in length and width to the transmission.

G11171099Courtesy of BMW OF NORTH AMERICA, INC.

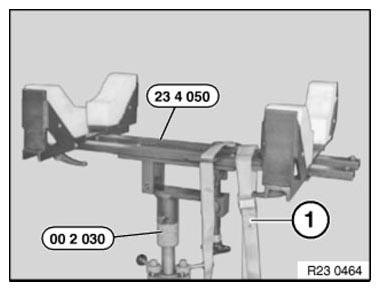

Supporting transmission:

Support transmission with special tools 23 4 050, 00 2 030.

IMPORTANT: Transmission must be secured with tensioning strap (1).
G11171100Courtesy of BMW OF NORTH AMERICA, INC.
