Removing and installing/replacing starter motor (S55 engine)

Necessary preliminary work:

• Read out the fault memory of the DME control unit.
• Switch off ignition.
• Disconnect BATTERY NEGATIVE LEAD .
• Remove INTAKE PLENUM .

Removal:

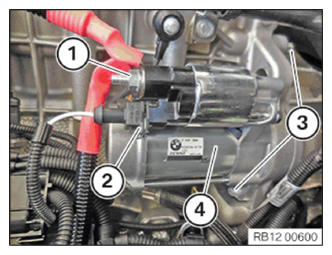

Release nut (1) and remove positive battery cable. Unlock connector (2) and remove.

Release screws (3) and remove starter motor (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Check starter pinion and ring gear for damage, replace starter motor if necessary.

Installation:

Install starter motor (4).

Tighten screws (3) on starter motor (4).

Tightening torque 12 41 1AZ .

Tighten positive battery cable and nut (1).

Tightening torque 12 42 2AZ .

Connect and lock connector (2).

Connector (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install INTAKE PLENUM .
• Connect NEGATIVE BATTERY CABLE .

Only during starter replacement and on vehicles with MSA (automatic engine start-stop function):

• Use BMW diagnosis system to reset the starter counter.
