Removing and installing/replace catalytic converter for cylinders 1-3 (S55 engine)

Only perform this repair work on an engine that has cooled down.

Necessary preliminary work:

• Remove OXYGEN SENSOR , cylinders 1-3
• Remove MONITORING SENSOR , cylinders 1-3
• Remove STIFFENING PLATE .
• Remove EXHAUST SYSTEM .

Removal:

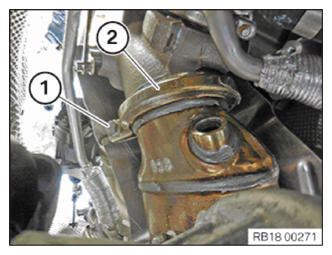

Release screw (1).

Remove the clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seals (1).

Unfasten screws (2).

Remove the flange plate (3).

Courtesy of BMW OF NORTH AMERICA, INC.

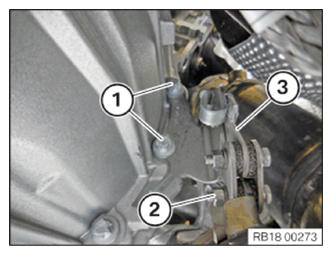

Secure the catalytic converter to prevent falling.

Release nut (2) on holder.

Loosen the screws (1) and remove the anti-roll bar link (3).

Remove the catalytic converter toward the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

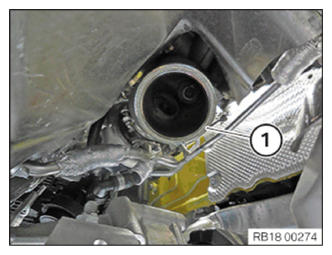

Replace the gasket (1) on the exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the catalytic converter.

Install the anti-roll bar link (3).

Tighten down screws (1).

Twin-clutch gearbox  tightening torque 28 00 1AZ .

Manual transmission  tightening torque 23 00 1AZ Tighten the nut (2) on the holder.

Tightening torque 18 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install the flange plate (3).

Parts: Replace the gaskets and screws.

Tighten down screws (2).

Install the gaskets (1).

Tightening torque 18 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Parts  : Replace the screw and clamp.

Install the clamp (2).

Tighten screw (1).

Tightening torque 18 31 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the OXYGEN SENSOR for cylinder 1-3
• Install the MONITORING SENSOR for cylinder 1-3
• Install the STIFFENING PLATE .
• Install EXHAUST SYSTEM .
• Check exhaust system for leaks
