Removing and installing/replacing passenger compartment partition wall trim panel (M4 Convertible)

Necessary preliminary tasks:

• Remove left/right BACKREST SIDE SECTION .

Version with ski bag:

• Remove ski bag cover

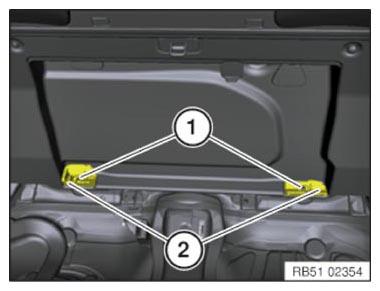

Release screws (1).

Remove wind deflector brackets (2).

Courtesy of BMW OF NORTH AMERICA, INC.

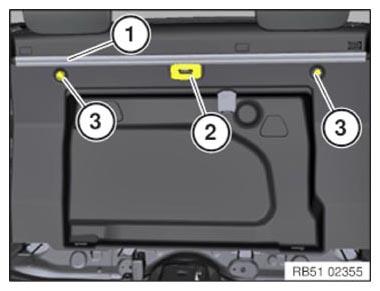

Pull off trim panel (1) towards bottom.

Remove cover (2).

Pull off buffer (3) and release screws underneath.

Courtesy of BMW OF NORTH AMERICA, INC.

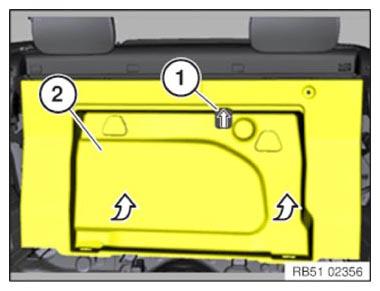

Slide locking slide for wind deflector (1) upwards.

Feed out trim panel (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
