Removing and installing/replacing panel for luggage compartment partition wall (M4 Convertible)

Necessary preliminary tasks:

• RELEASE LEFT AND RIGHT LUGGAGE COMPARTMENT TRIM PANEL SIDE MEMBER .

Version with ski bag:

• Remove ski bag.

Open flap for retractable hardtop.

If necessary, extend retractable hardtop.

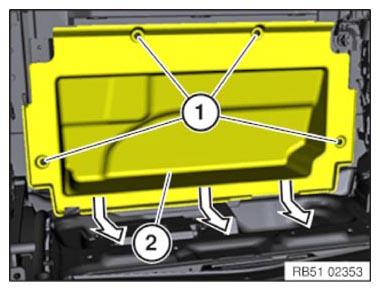

Release clamps (1).

Feed out trim panel (2) in direction of arrow.

Installation note:

If necessary, replace faulty clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.
