Removing and installing/replacing Bowden cable for inside door opener on left or right front door (M4 Coupe, M4 Convertible)

Necessary preliminary tasks:

NOTE: Illustration is similar.

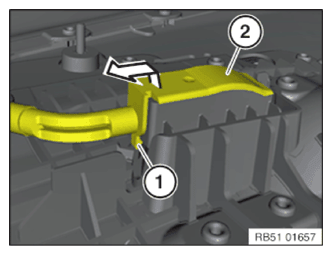

Lever out lock (1)

Pull off Bowden cable housing (2) towards rear/top - the Bowden cable feeds out of its own accord in the process.

G13804886Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

To install the Bowden cable, press inner door handle (1) in direction of arrow.

G09879177Courtesy of BMW OF NORTH AMERICA, INC.
