Replacing flexible disc for front propeller shaft

Necessary preliminary tasks:

• Remove propeller shaft. Refer to COMPLETELY REMOVE AND INSTALL THE PROPELLER SHAFT MADE OF STEEL (INSERTED AT THE REAR)  or REMOVING AND INSTALLING CARBON PROPELLER SHAFT (INSERTED) COMPLETE .

Removal:

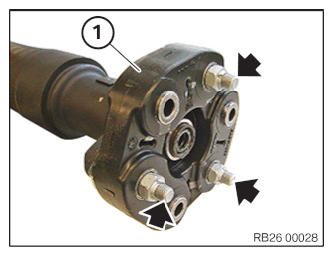

Release screws and remove flexible disc (1) from propeller shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check centering mount.

Replace damaged CENTERING MOUNT .

Grease centering mount. Approved grease: refer to PROPELLER SHAFT - OPERATING FLUIDS .

Courtesy of BMW OF NORTH AMERICA, INC.

Parts  : Replace screws and self-locking nuts.

Install flexible disc (1).

Insert screws and tighten.

Tightening torque and angle of rotation 26 11 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install PROPELLER SHAFT .
