Removing And Installing The Fuel Filler Flap (M4 Coupe, M4 Convertible)
NOTE:
The illustration is a schematic diagram and is to be applied to the relevant vehicle type.
Open fuel filler flap.

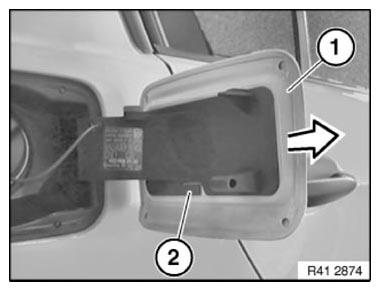

Lift out the lock (2) and detach the fuel filler flap (1) in direction of arrow.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
