Removing And Installing Tailgate (M4 Convertible)

Read contents of BODY, GENERAL .

For stripping and rigging operations, refer to texts on KSD CD (FRU number 41 62 000).

Necessary preliminary tasks:

Remove Trim Panel For Tailgate; See REMOVING AND INSTALLING OR REPLACING TRIM FOR REAR LID (M4 CONVERTIBLE) .
Disconnect all cable connectors and pull the wiring harness out of the tailgate.
Release GAS PRESSURE SPRING to left and right of tailgate; See REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT GAS PRESSURE SPRING FOR TAILGATE (M4 CONVERTIBLE) .

Removal:

NOTE: This operation must be carried out with a second person assisting.

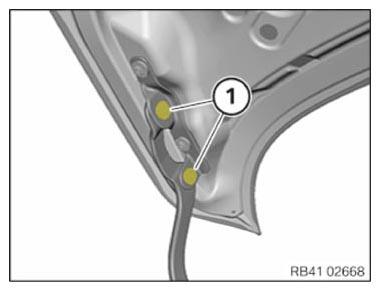

Release screws (1) on both sides and remove the tailgate.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: This operation must be carried out with a second person assisting.

Install the tailgate in the hinge.

Tighten screws (1) on both sides.

Tightening torque 41 62 TAILGATE .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install GAS PRESSURE SPRING on left and right REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT GAS PRESSURE SPRING FOR TAILGATE (M4 CONVERTIBLE)
Feed in the wiring harness in the tailgate. Connect all the cable connectors.
