Removing And Installing Tailgate (M4 Base Coupe)
Read contents of BODY, GENERAL .
For stripping and rigging operations, refer to texts on KSD CD (job number 41 62 000).
Necessary preliminary tasks:
- Remove PANEL FOR TAILGATE .
- Disconnect all cable plug connections and pull wiring harness out of tailgate.
Carry over the work step shown symmetrically to the other side of the vehicle.

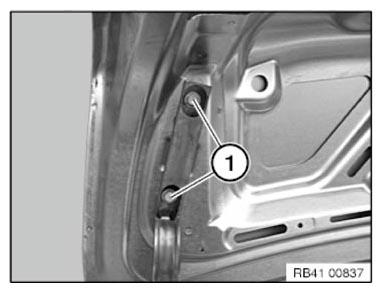

Slacken screws (1) and remove tailgate with a second person.
Tightening torque 41 62 TAILGATE .
Installation note:
Install tailgate at screw locations on hinge.
If necessary, ADJUST TRUNK LID .
