Adjusting Bonnet (M4 Coupe, M4 Convertible)

IMPORTANT: These instructions apply only to vehicles without active pedestrian protection!

For vehicles with active pedestrian protection, observe the ALTERNATE PROCEDURE !

IMPORTANT: Do not damage adjoining body components!

Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

Observe Gap Dimensions: See BODY DIMENSIONS .

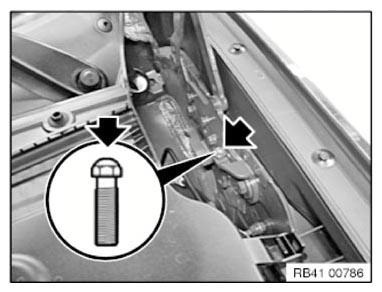

NOTE: Stop screw must not be damaged or missing. If necessary, replace engine compartment lid hinge.

The stop screw is preset and must not be used to adjust the engine compartment lid.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nuts (1) of hinges on left and right.

Tightening torque 41 61 BONNET .

NOTE: If adjustment range is not sufficient, slacken screws on body and slide hinge. (Refer to operation: Height adjustment at hinge)

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust engine compartment lid sideways and lengthways.

Strikers must snap into place in engine compartment lid catch.

Courtesy of BMW OF NORTH AMERICA, INC.

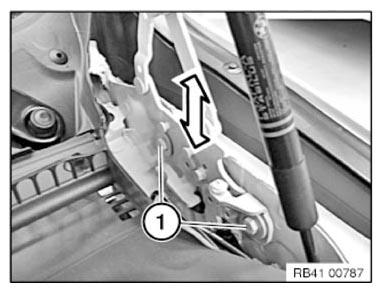

Height adjustment at hinge:

Slacken screws (1) and adjust engine compartment lid.

Tightening torque 41 61 BONNET .

Courtesy of BMW OF NORTH AMERICA, INC.

Height adjustment at strikers:

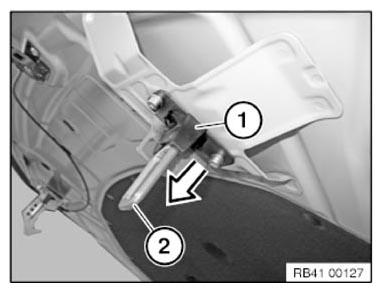

Unclip the anti-twist lock (1).

Adjust height by turning the striker (2).

Height adjustment of engine compartment lid to side panel by means of stop pad.

NOTE: The engine compartment lid is correctly adjusted in the front section by a combination of pulling the strikers and pressing the stop pads.

Incorrect adjustment results in either wobbling of the bonnet or sluggish unlocking.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Check function of retaining hook.

After Installation note:
