Replacing Rear Left Side Panel (M4 Coupe)

Read contents of Body, General.

Procedure OBSERVE  repair stage 2!

Strip down vehicle.

Example figure.

Due to the constantly increasing levels of geometric complexity and the demanding pre-processing steps on visible separating cuts, the choice of joining technology for the reinforcing plate is switched from bonding to welding. This change applies for all BMW and MINI series.

Welding is done in area (1) (incl. water channel).

Bonding is done in areas (2).

Note changed procedure (See REINFORCEMENT PLATE WITH STUD BOLT (BONDED OR WELDED) .

G12845080Courtesy of BMW OF NORTH AMERICA, INC.
G10195761Courtesy of BMW OF NORTH AMERICA, INC.

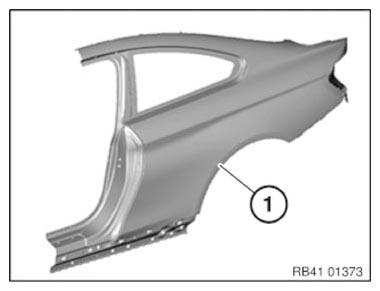

Following new body parts are required (see applicable BMW Parts Catalog):

Following CONSUMABLES  are required:

Material Quantity
Adhesive K5b 1
Adhesive K5a 1
Blind rivet N3 11
Punch rivet N4 27
Punch rivet N5 6
EMC screws 3
Cleaning agent R1 1
Cavity sealing wax remover 1
Sealant D1 1

Removal

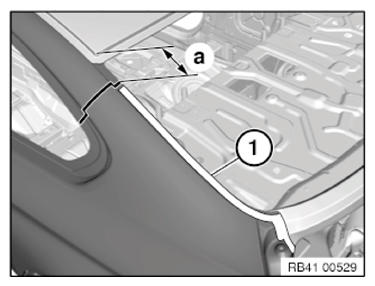

Mark severance cut in accordance with dimension and cut.

CAUTION: Cut outer panel only.

Compare position of separating cut with reinforcement plate.

Dimension a = approx. 220 mm from corner of roof outer skin.

Open welded connections in area (1).

NOTE: In addition to the dimensions, the position of the separating cut can be determined with a TEMPLATE  (1).
G10062432Courtesy of BMW OF NORTH AMERICA, INC.
G06890647Courtesy of BMW OF NORTH AMERICA, INC.
G10195764Courtesy of BMW OF NORTH AMERICA, INC.

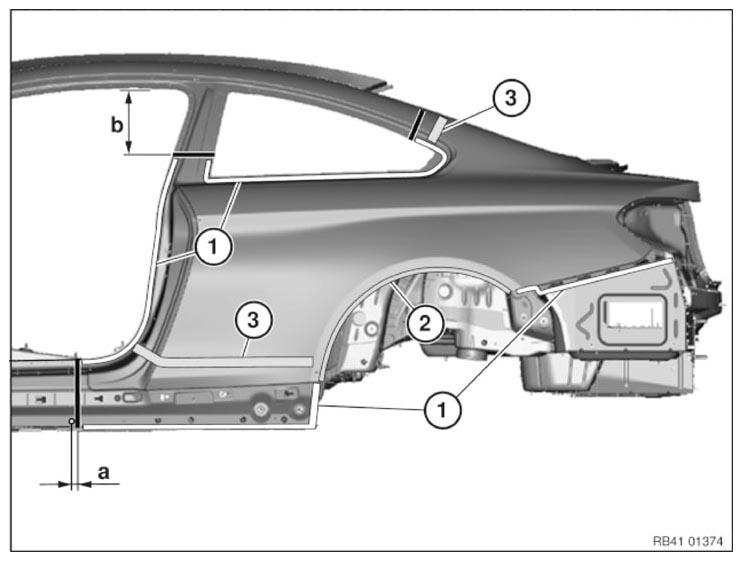

Mark severance cuts in accordance with specified dimensions and cut.

CAUTION: Cut outer panel only.

Compare position of severance cuts with reinforcement plates (See REINFORCEMENT PLATE WITH STUD BOLT (BONDED OR WELDED) ).

Dimension a = approx. 10 mm from center point of 15 mm dia. hole.

Dimension b = approx. 225 mm from the edge of side frame.

Open welded connections in areas (1).

Open seam adhesive bond in area (2).

Release side wall from cavity acoustic baffles (3).

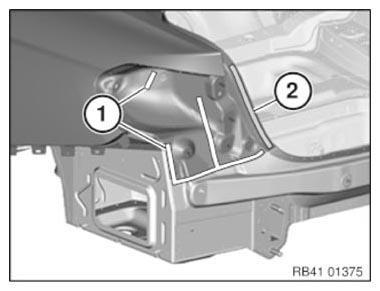

Open welded connections in areas (1) and (2).

CAUTION: In area (2), the welding spots must be detached from the side wall.

Take off side panel.

G10195765Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Mark severance cuts on new part in accordance with severance cuts on vehicle and cut.

Prepare reinforcement plates at severance cuts. (See REINFORCEMENT PLATE WITH STUD BOLT (BONDED OR WELDED) ).

Adjust new part to fit and secure.

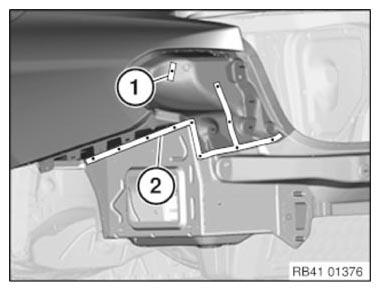

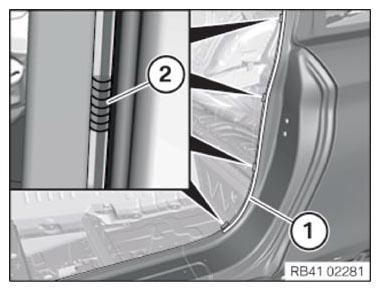

Prepare area (1) for 4 x 15 mm long metal active gas weld seams (2).

Installation note:

The metal active gas weld seams (2) will be placed on the front side of the 3-sheet metal flange.

If an approved spot-welding apparatus is available, 4 spot welds can be made in area (1) instead of metal active gas weld seams.

G10142076Courtesy of BMW OF NORTH AMERICA, INC.
G10195767Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) and (2), drill 0 4.2 mm bore holes for blind rivet:

Area Number
1 1
2 10

Remove new part again and deburr bore holes.

CAUTION: Do not grind/sand new part in area of bonding surfaces.

Installation

Clean all bonding surfaces on vehicle, on the new part and on the reinforcement plates with cleaning agent R1.

Apply adhesive to reinforcement plates (side sill, B-pillar). Install reinforcement plates.

Coat CAVITY SEALINGS  with sealant.

Apply adhesive to bonding surfaces on vehicle.

CAUTION: In the area around the B-pillar, adequate distance must be provided between the adhesive applied and the upcoming metal active gas welded connections. Distance depending on the adhesive 2 - 3 centimeter.

Apply adhesive to new part in area of wheel arch.

Apply adhesive (1) to inside of side wall at distance a.

Measurement a = approx. 5 mm.

G10142079Courtesy of BMW OF NORTH AMERICA, INC.
G13804577Courtesy of BMW OF NORTH AMERICA, INC.

Install side panel with a second person helping.

NOTE: When installing side panel, make sure there is sufficient adhesive on bonding surfaces.

After adjusting side panel, tighten nuts of reinforcement plates.

Secure side panel in area of reinforcement plates with gripping pliers.

Rivet side panel with blind rivets N3.

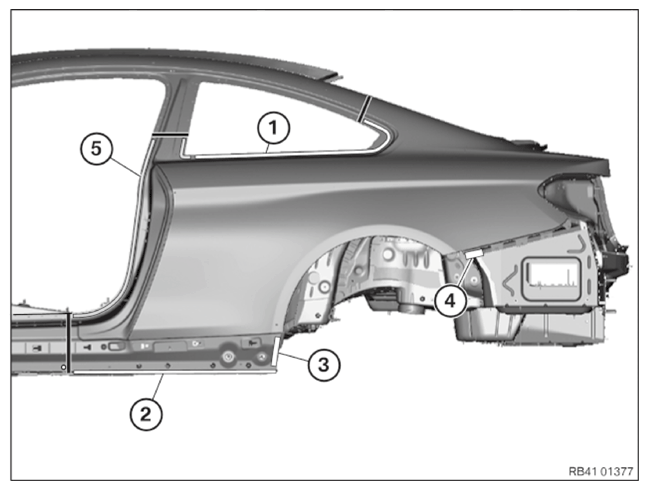

In areas (1) to (5), use a punch rivet.

Area Number Remarks
1 7 Punch rivet N4
2 9 Punch rivet N4
3 3 Punch rivet N4
4 2 Punch rivet N4

Weld the separation point to the C-pillar.

Place 4 x 15 mm long metal active gas weld seams or 4 spot welds in area (5) in accordance with the new part preparation process.

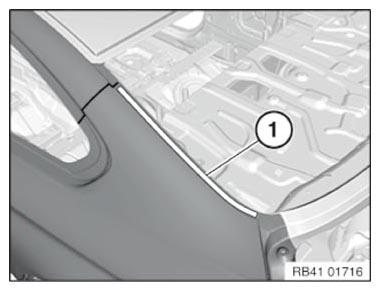

Use 6 punch rivets N5 in area (1).

G10195770Courtesy of BMW OF NORTH AMERICA, INC.

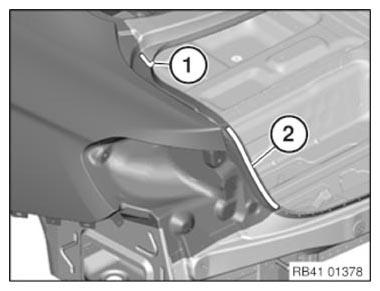

Use punch rivets N4  in areas (1) and (2).

Area Number
1 2
2 4
G10195771Courtesy of BMW OF NORTH AMERICA, INC.

Also apply adhesive (2) to outer wheel arch section (3).

  1. Rear side wall.
G06890658Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Flange edge of wheel arch (3) of side wall flush to outer wheel arch section.

Do not create sharp edges when flanging as otherwise the flange edge may begin to tear.

Dimension (A) = 5 mm.

  1. Adhesive
  2. Rear side wall

Also seal in area (3) according to standard.

CAUTION: Flange edge must be completely filled with adhesive!
G06890659Courtesy of BMW OF NORTH AMERICA, INC.

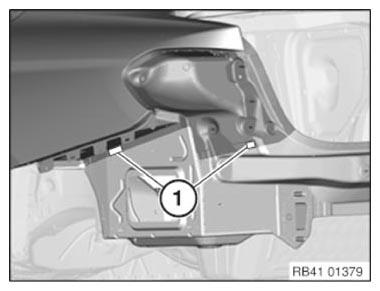

AFTER HARDENING OF THE ADHESIVE, INSTALL TWO EMC SCREWS IN THE AREAS (1) .

Additionally, install EMC screw in sill area.

G10195774Courtesy of BMW OF NORTH AMERICA, INC.
