Removing And Installing Front Side Panel On Left (M4 Coupe, M4 Convertible)

For stripping and rigging operations, refer to texts on KSD CD (FRU number 41 35 081).

Observe Gap Dimensions: See BODY DIMENSIONS .

Necessary preliminary tasks:

• Remove TRIM PANEL FOR COVER ON SIDE MEMBER .
• Release BUMPER PANEL at the side in the area of the wheel arch cover

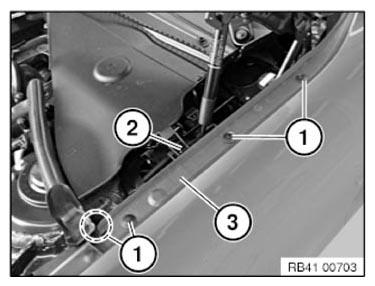

Lever out expanding rivets (1).

Release latch mechanism (2) and remove cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

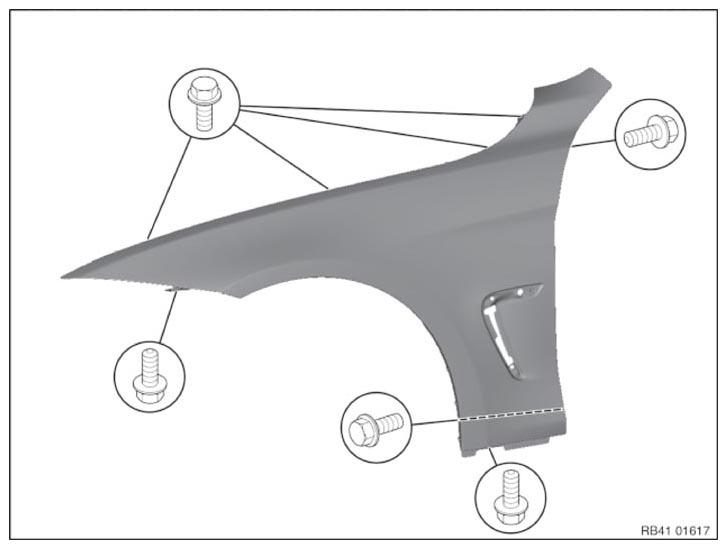

Loosen screws and remove side wall.

Tightening torque 41 35 SIDE PANELS .

Replacement:

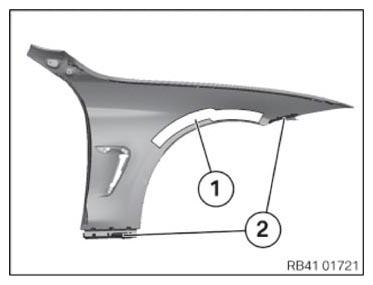

• Apply additional sealant to inside of front panel in area (1) analogous with series.

Material: SEALANT D1  (sourcing reference via BMW Parts Department).

• Remount holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

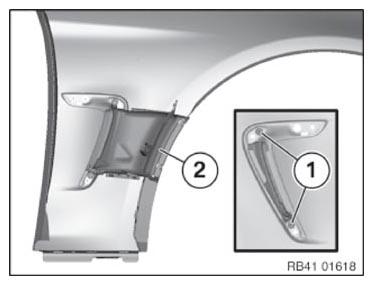

Drill out blind rivets (1) and remove air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.
