Replacing Front Left Or Right Side Wall Holder (M4 Coupe, M4 Convertible)

General information:

Procedure OBSERVE  repair stage 2!

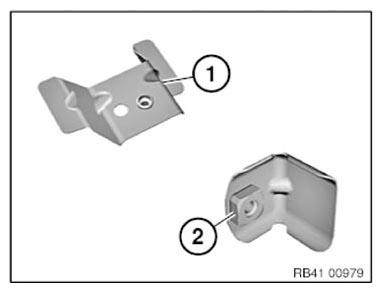

Following new body parts are required (refer to applicable BMW Parts Catalog):

• (1) Holder, side wall, front (variant 1)
• (2) Holder, side wall, front (variant 2)

Following CONSUMABLES  are required:

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5a	1
Blind rivets N3	2
Cleaning agent R1	1

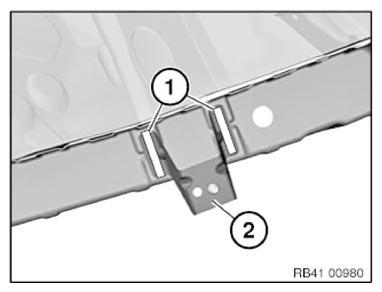

Removal of side wall holder (variant 1):

Release welded connections in areas (1) and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

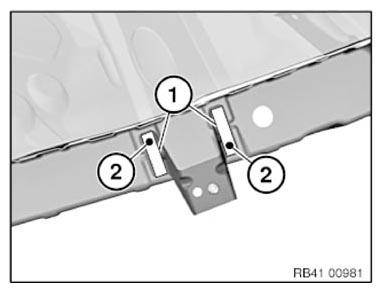

Preparation of new part:

Adjust new part in conjunction with side panel in front to fit.

In area of bonding surfaces (1), set 2 4.2 mm dia. bores (2) for blind rivets N3.

Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

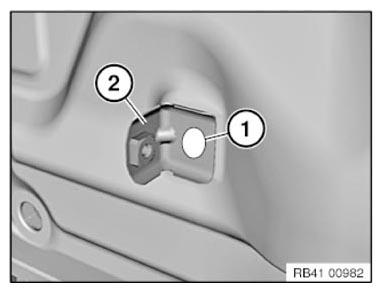

Removal of side wall holder (variant 2):

Release welded connection in area (1) and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

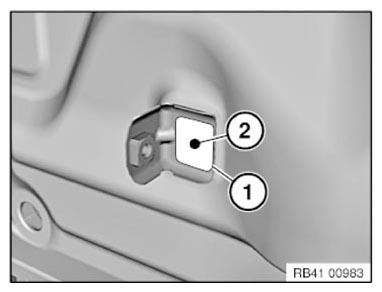

Preparation of new part:

Fit in new part.

In area of adhesive surface (1), drill a 4.2 mm dia. bore (2) for blind rivet N3.

Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surface.

Install new part and rivet with blind rivet.
