Replacing Rear Left Outer Wheel Arch Section (Rear Side Panel Removed) (M4 Convertible)

Read contents of BODY, GENERAL .

Follow procedure for REPAIR STAGE 3 .

For stripping and rigging operations, refer to texts on KSD CD (job number 41 14 505).

Use only approved spot-welding apparatus for repairs.

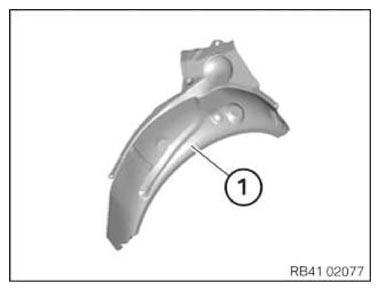

Following new body parts are required (see applicable BMW Parts Catalog):

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

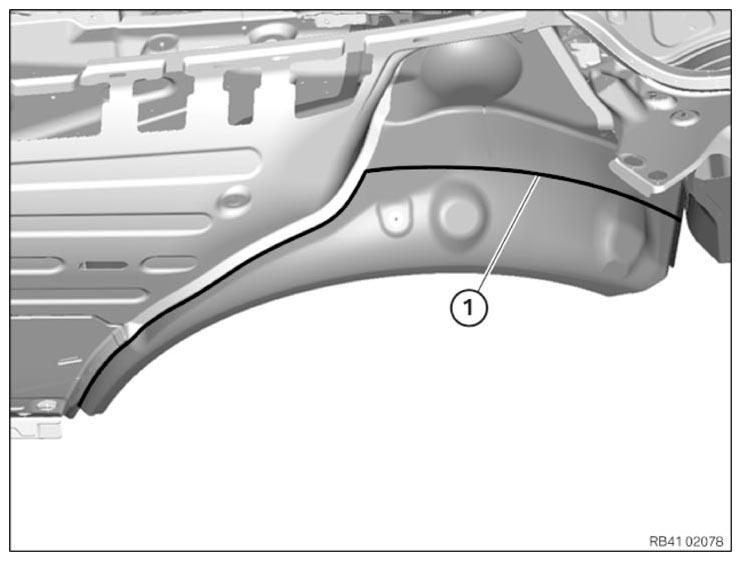

Mark severance cut (1) as pictured and cut.

Remove part of the outer wheel arch section.

Preparation of new part:

Mark severance cut on new part according to severance cut on vehicle + 20 mm material extra and cut.

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new parts in combination with side wall to fit and secure.

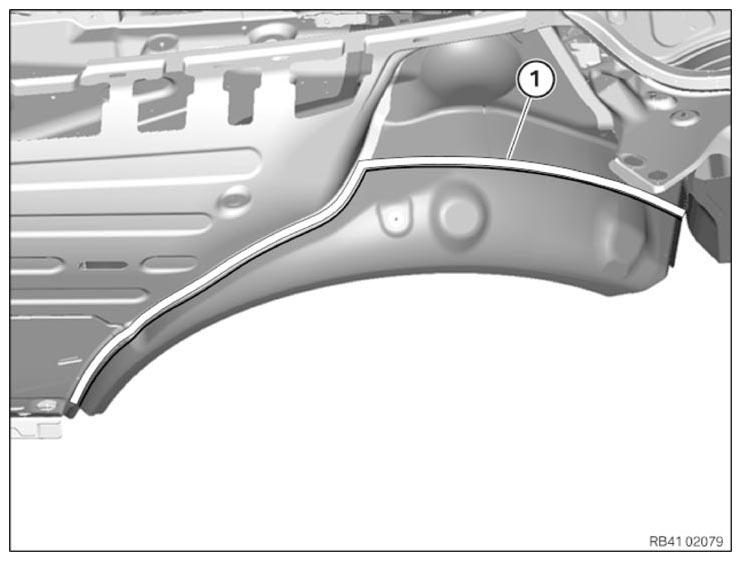

In area (1) prepare for joining by welding.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Install outer wheel arch section and weld in area (1).
