Stripping Operations - Replacing Luggage Compartment Floor And Right Side Member (Right Side Panel And Tail Panel Removed) (M4 Coupe)

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

Remove exhaust system (job number: petrol engine 18 00 020, diesel engine 18 00 018)
Remove exhaust system heat shield
Remove rear axle support (job number: 33 31 000)

Remove cover (1) and release nut (2) below it.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the lock (2) counterclockwise and remove.

Push the positive battery cable connect (1) through the luggage compartment floor to the outside.

Courtesy of BMW OF NORTH AMERICA, INC.

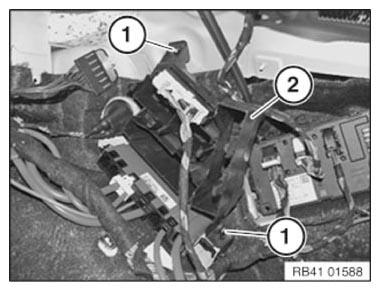

Release nuts (1), remove holder (2) and lay towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.

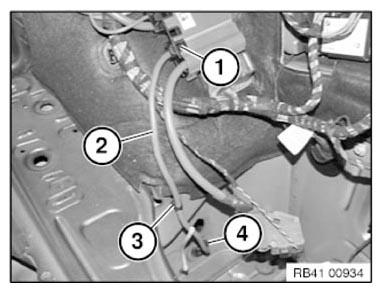

Release plug connection (1) on power distribution box.

Release positive wire (2) from mounting (3).

Push grommet (4) with the positive battery cable through towards the outside and secure.

Courtesy of BMW OF NORTH AMERICA, INC.

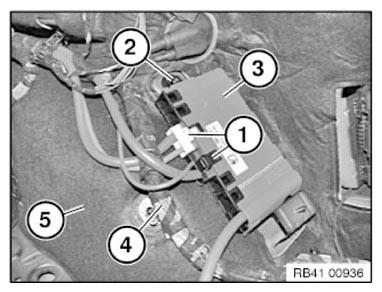

Unlock plug connections (1) and disconnect.

Release wiring harness (4) from retaining pin.

Partially release the insulating mat (5) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
