Stripping Operations - Replacing Left Luggage Compartment Floor (Rear Side Wall And Tail Panel Removed) (M4 Coupe)
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

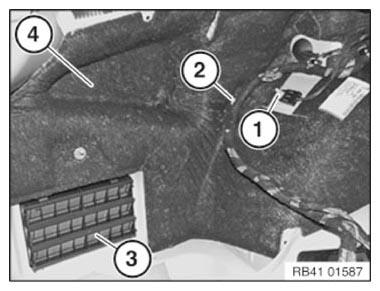

Release nut (1) for ground connection. Remove ground connection.
Tightening torque 41 14 1AZ.
Release wiring harness at attachment point (2) and set aside.
Release latch mechanisms and remove rear ventilation (3).
Release insulating mat (4) and tie forwards.
Installation note:
The rear ventilation must not be damaged! (watertightness).
All latch mechanisms must engage audibly.
