Replacing Left Luggage Compartment Base (M4 Convertible)

Read contents of BODY, GENERAL .

Procedure OBSERVE  repair stage 2!

Following new body parts are required (see applicable BMW Parts Catalog):

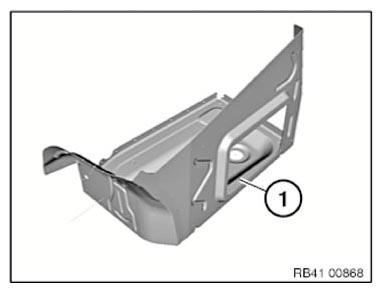

• (1) Luggage compartment floor, left section

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

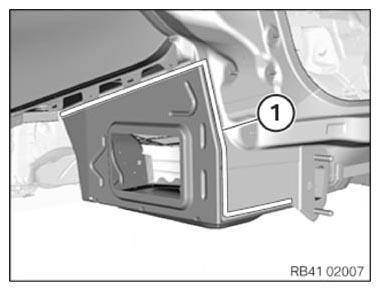

Mark severance cut (1) next to reinforcement (2) and disconnect.

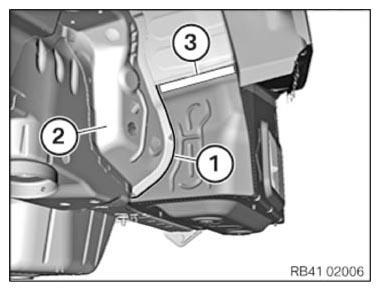

Open welded connections in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.

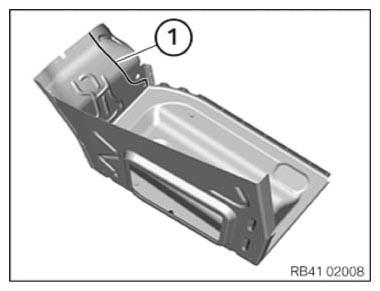

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

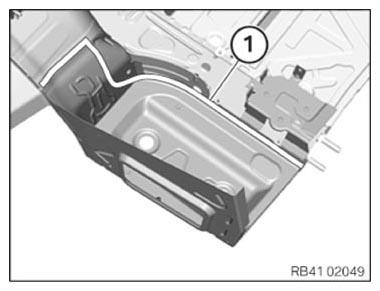

Open welded connections in area (1).

Remove luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cut at luggage compartment floor in accordance with severance cut on vehicle + 15 mm extra material and cut (1).

Prepare new part for joining by welding.

Adjust luggage compartment floor in combination with side panel and tail panel to fit and secure.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

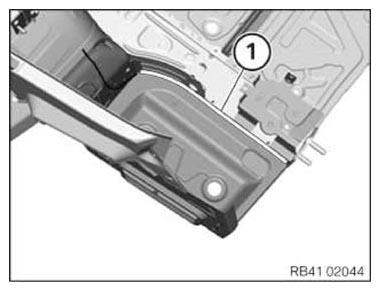

Install new part and weld in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new part in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
