Replacing The Carrier Support Before The Wheel Arch On The Left (M4 Coupe, M4 Convertible)
Read contents of BODY, GENERAL .
Follow procedure for REPAIR STAGE 2 .
Strip down vehicle.
Following new body parts are required (applicable BMW Parts Catalog):
- (1) Carrier support, outer wheel arch section
- (2) Wheel arch inner section support member
- (3) Carrier support end plate
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Punch rivets N5 | 33 |
| Sealant D1 | |
| Cleaning agent R1 | 1 |

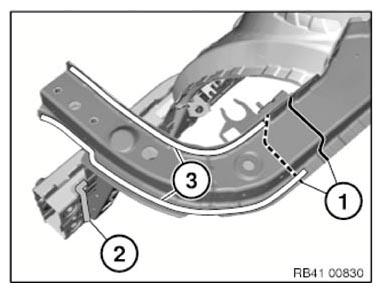

Open welded connections in areas (1).

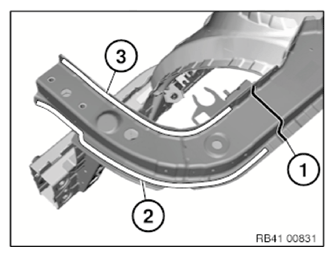

Open welded connections in area (1).

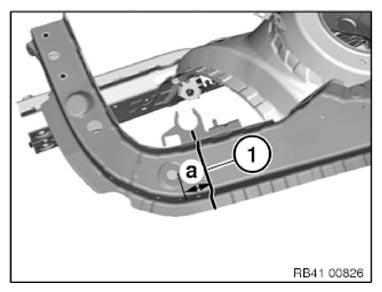

Mark severance cut (1) in accordance with dimension and detach carrier support.
Dimension a = approx. 35 mm from 15 mm diameter hole.

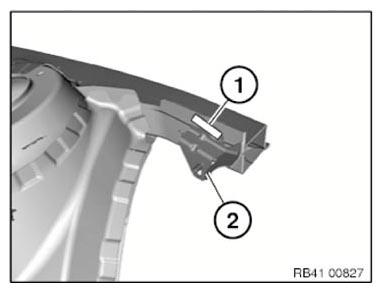

Detach welded connections (1) and remove holder (2).

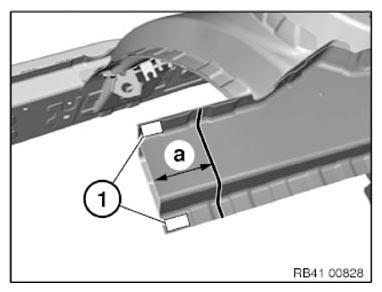

Mark severance cut in accordance with dimension and cut.
Cut outer metal panel only.
Dimension a = approx. 55 mm from previous separation cut.

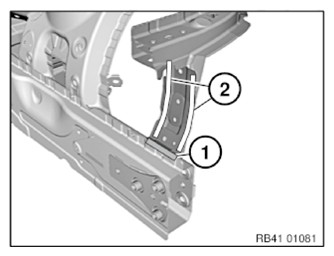

Open weld joints in areas (1) and remove metal panel section.
New part preparation

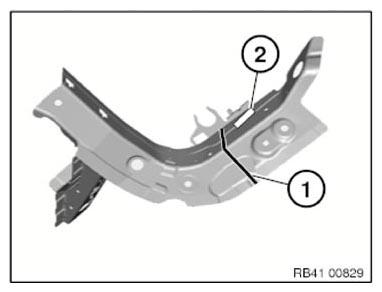

Mark severance cut (1) on inside part of carrier support in accordance with severance cut on vehicle and cut.
Release welded connections (2) for holder.
Mark severance cut on outside part of carrier support in accordance with severance cut on vehicle and disconnect.
Adjust new parts with add-on parts to fit and secure.
Prepare REINFORCEMENT PLATES (welded) at severance cuts (1).
Prepare new parts in engine support area (2) for plug-welding.
In area (1), prepare new part and engine support for plug-welding.
OBSERVE preparation of bonding surfaces.
Installing carrier support
Install new part (carrier support for inner wheel arch section) and reinforcement plate and weld in place.
Install reinforcement plate in area of severance cut (1) and weld in place.
Clean all bonding surfaces with cleaning agent R1.
Apply adhesive to bonding surfaces, fit new component (outside part of carrier support) and fasten.
In areas (2) and (3), rivet new part with punch rivets N5.
| Area | Number |
|---|---|
| 2 | 11 |
| 3 | 10 |
Weld new part and reinforcement plate in the area of severence cut (1).
Avoid applying excessive heat to the neighbouring adhesive areas!
Apply adhesive to bonding surfaces, fit new part carrier support end plate and secure.
In areas (2), rivet new part with 12 punch rivets N5.
Weld new part in area (1).
Avoid applying excessive heat to the neighbouring adhesive areas!
Remove excess adhesive.
Do not use any cleaning agents containing solvents.
