Replacing Entrance For Door Front Left (M4 Coupe)
Observe procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
For stripping and rigging operations, refer to texts on KSD CD (job number 41 11 311).
Following new body parts are required (see applicable BMW Parts Catalog):

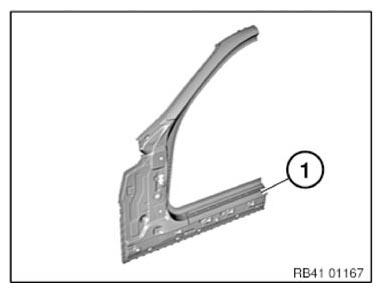

- (1) A-pillar with entrance

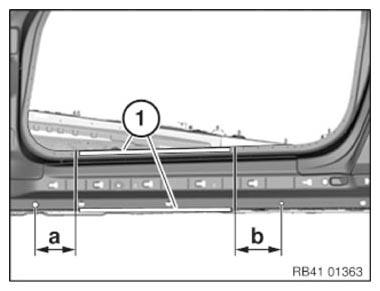

Mark severance cuts in accordance with specified dimensions and cut.
IMPORTANT:
Cut outer panel only for following severance cuts.
Dimension a = approx. 140 mm behind 20 mm dia. hole.
Dimension b = approx. 160 mm in front of 15 mm dia. hole.
Open welded connections in areas (1).
Installation note:
Mark new part in accordance with severance cuts on vehicle and cut.
Weld in REINFORCEMENT PLATES at severance cuts.
