Replacing Engine Support In Front Of Bulkhead, Left (M4 Coupe, M4 Convertible)

Observe procedure of REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

For stripping and rigging operations, refer to surrounding text on KSD (FRU number 41 11 091).

Use only approved Spot-Welding Apparatus for repairs; See WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) .

Place vehicle on straightening bench.

Following new body parts are required (applicable BMW Parts Catalog):

Courtesy of BMW OF NORTH AMERICA, INC.

Removal

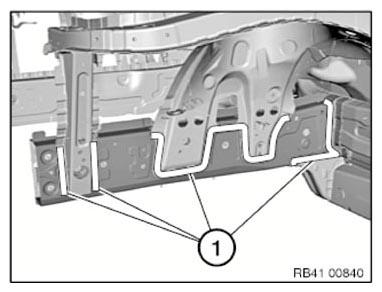

Open welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

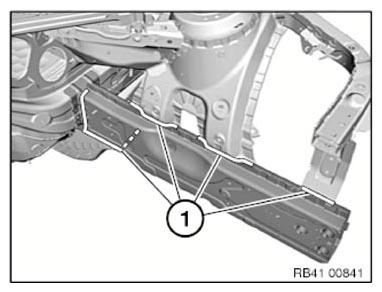

Open welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

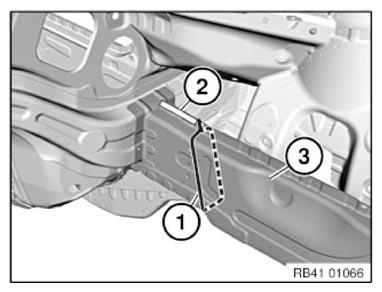

Roughly mark severance cut (1) as pictured and cut.

Open welded connections in area (2) and remove engine support (3).

Courtesy of BMW OF NORTH AMERICA, INC.

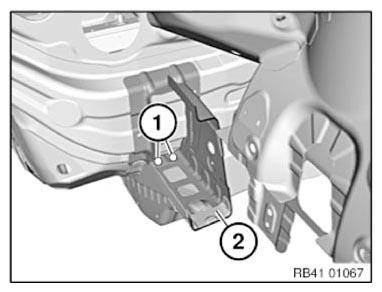

Open welded connections in areas (1) by grinding and remove residual section of engine support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

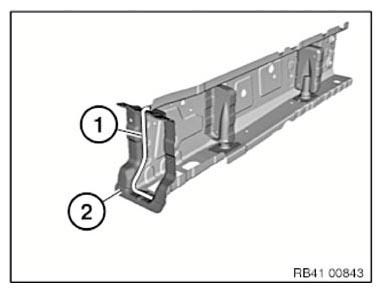

Open welded connections (1) and remove component (2) which is not required.

Courtesy of BMW OF NORTH AMERICA, INC.

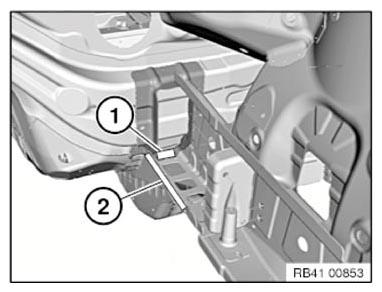

Release welded connections (1) and remove adapter plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

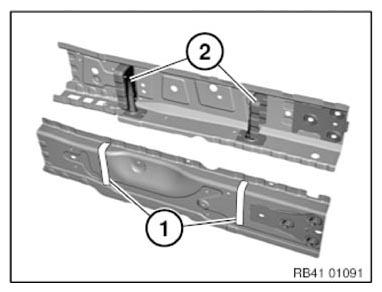

Set bore holes for welding the reinforcements (2) in areas (1).

Refer to series part for number and position and transfer to new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new parts to fit with alignment bracket or universal mounting.

NOTE: Three-sheet connection in areas (1) and (2)!
All three panels must be welded in these areas (1) and (2)!

Prepare new parts and vehicle accordingly.

Prepare new parts in all joint areas for joining by welding.

Remove new parts and deburr bore holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

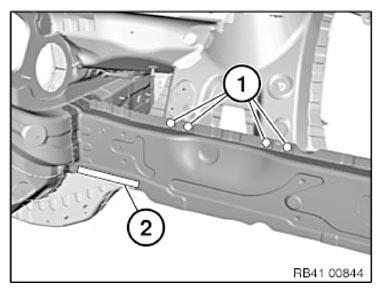

Install the outer engine support section including alignment bracket or universal fixture and weld in these areas (1) and (2).

Install engine support inner part. Weld new part.

Courtesy of BMW OF NORTH AMERICA, INC.
