Overview Of Glue Cartridge Guns

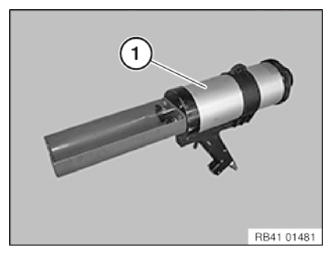

Adhesive gun 83 19 2 149 522

Obtainable via Electronic Parts Catalog.

Can be used for adhesives K4, K5a.

Can be used for BMW 2K polyurethane foam.

Including insert 1:1 and 2:1.

Courtesy of BMW OF NORTH AMERICA, INC.

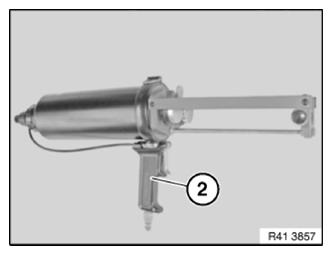

Adhesive gun 81 49 0 443 166

Obtainable via BMW Workshop Equipment Catalog.

Can be used for adhesive K3.

Courtesy of BMW OF NORTH AMERICA, INC.

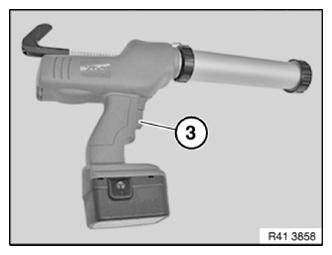

Adhesive cartridge gun 81 49 2 213 059

Obtainable via BMW Workshop Equipment Catalog.

Can be used for adhesives K1, K5b, sealant D1/D2, window glass adhesive and all 310 ml Eurokartuschen cartridges.

Courtesy of BMW OF NORTH AMERICA, INC.

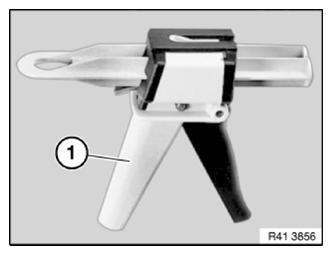

Adhesive cartridge gun 81 49 2 355 475

Obtainable via BMW Workshop Equipment Catalog.

Can be used for adhesive K2 (2x290 ml glue cartridge)

Courtesy of BMW OF NORTH AMERICA, INC.
