Body Gap Dimensions (M4 Coupe)

The dimensions specified in this information are applicable at an object temperature of 20°C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

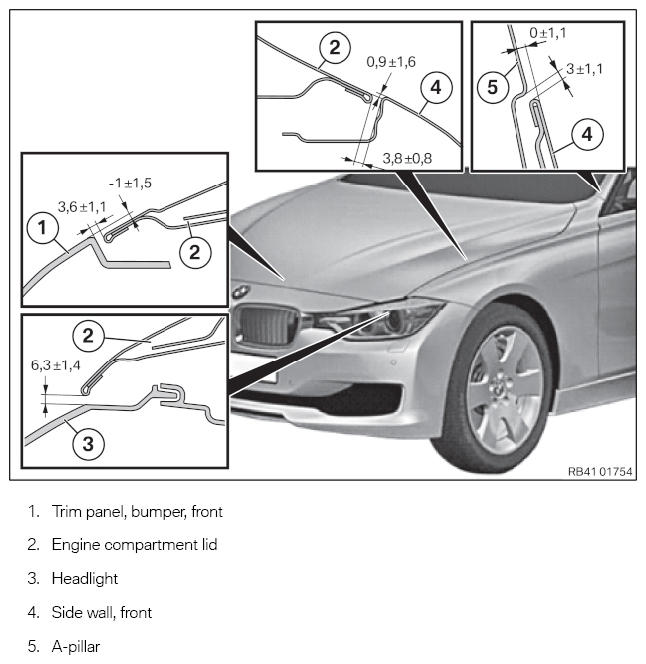

Fig 1: Front Bumper, Headlamp, Hood, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points (Coupe)

Courtesy of BMW OF NORTH AMERICA, INC.

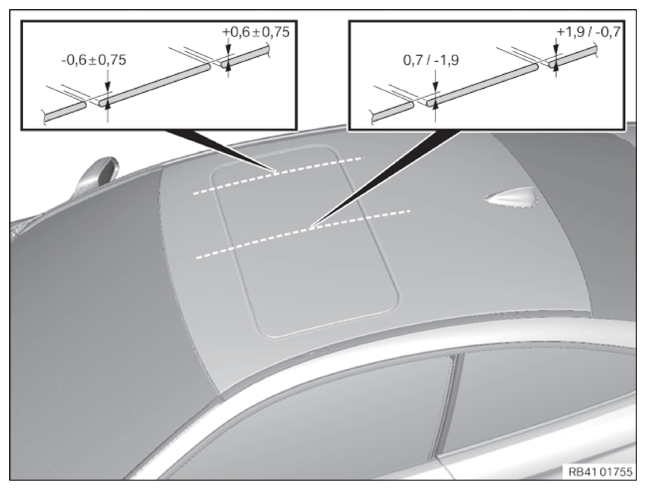

Fig 2: Roof And Moonroof Body Gap Dimensions And Measurement Points (Coupe)

Courtesy of BMW OF NORTH AMERICA, INC.

+ dimensions are a glass sunroof protrusion.

- dimensions are a glass sunroof short length.

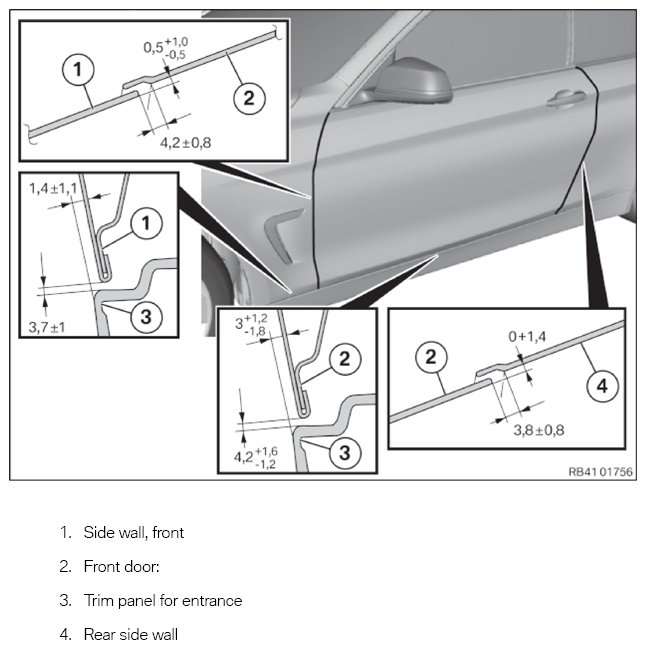

Fig 3: Front Fender, Front Door, Quarter Panel And Sill Trim Panel Body Gap Dimensions And Measurement Points (Coupe)

Courtesy of BMW OF NORTH AMERICA, INC.

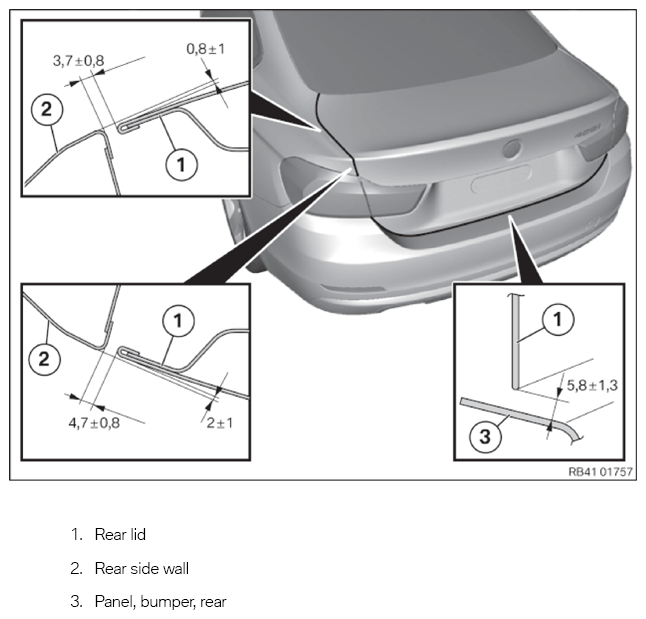

Fig 4: Trunk Lid, Quarter Panel And Rear Bumper Body Gap Dimensions And Measurement Points (Coupe)

Courtesy of BMW OF NORTH AMERICA, INC.
