Removing and installing/replacing DSC control unit (DSC MK100)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST DAMAGE FROM ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove HYDRAULIC UNIT .

IMPORTANT: Risk of damage to the contacts when removing and installing the hydraulic unit.

Release screws (1) and carefully detach control unit (2) towards front.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cleaning with compressed air, chemical solvents and sharp-edged objects is not permitted.
Do not touch pressure sensor contacts (2) with your fingers or clean the contacts.

If necessary, clean sealing surface (1) with a plastic scraper or a fluff-free cloth.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not touch, clean or readjust valve coils (1) and pressure sensor contact springs with your fingers.

Check gasket (2) for damage. If damaged, replace DSC control unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure screws are inserted evenly and DSC control unit rests on hydraulic unit.

Replace screws.

Observe tightening sequence (1-3).

Tightening torque 34 51 1AZ .

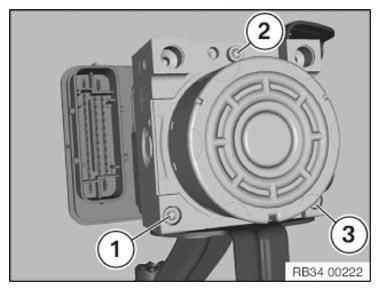

Fig 1: DSC Control Unit Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/encoding
Steering angle sensor adjustment
or

adjustment for active steering
Brake line mix-up test:
Function check, hydraulic unit
