Removing and installing/replacing flat motor for rear left or right power window regulator (M4 Convertible)

Necessary preliminary tasks:

Removal:

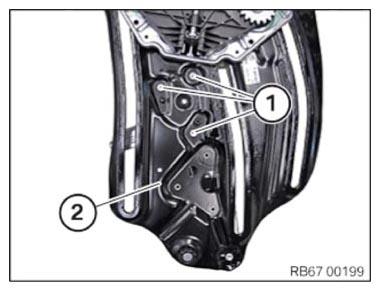

Release screws (1).

Carefully rotate power window regulator (2).

Courtesy of BMW OF NORTH AMERICA, INC.

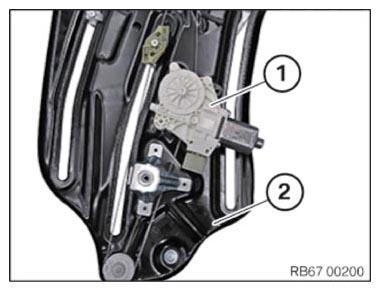

Detach flat motor (1) from power windows unit (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position flat motor (1) correctly on power window regulator (2).

NOTE: Flat motor (1) must be placed exactly on the gearing of the power window regulator (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 51 37 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required re-working:

After installation:

An initialization must be carried out in order to activate anti-trap mechanism.
