Removing and installing or replacing flat motor for front left or right power window regulator (M4 Coupe)

Necessary preliminary tasks:

• Remove SOUND INSULATION IN FRONT DOOR .

Courtesy of BMW OF NORTH AMERICA, INC.

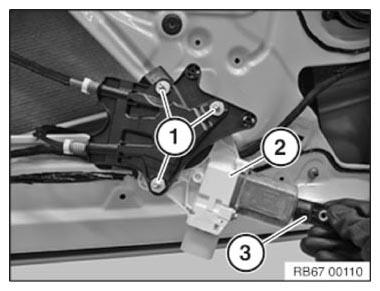

Release nuts (1) and screw (2).

Tightening torque 51 33 2AZ .

Feed out flat motor (3).

Unlock associated plug connection and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

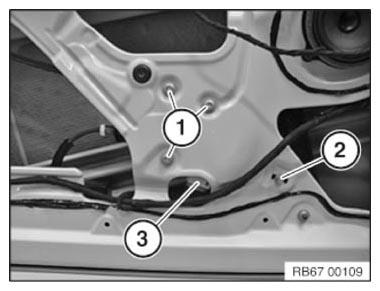

Release screws (1).

Tightening torque 51 33 1AZ .

Remove flat motor (2).

Replacement:

Remount support (3).

Installation note:

Make sure drive shaft (2) is correctly seated in mounting (1) at power window regulator (3)!

Ensure that the flat motor (2) is assembled without tension.

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

An initialization must be carried out in order to activate anti-trap mechanism.

Read and comply with NOTES ON INITIALIZATION OF POWER WINDOW REGULATOR .
