Removing and installing/replacing seat height adjustment drive unit (M4 Convertible)

Necessary preliminary tasks:

Remove SUPPORT FOR OUTER COVER ON FRONT SEAT .

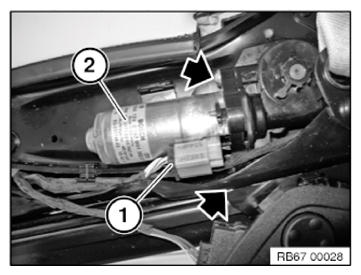

Unfasten plug connection (1) and disconnect.

Release screws.

Tightening torque 67 31 1AZ .

Remove seat height adjustment drive unit (2).

G10049077

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Replacement:

Initialize SEAT HEIGHT ADJUSTMENT DRIVE UNIT .
